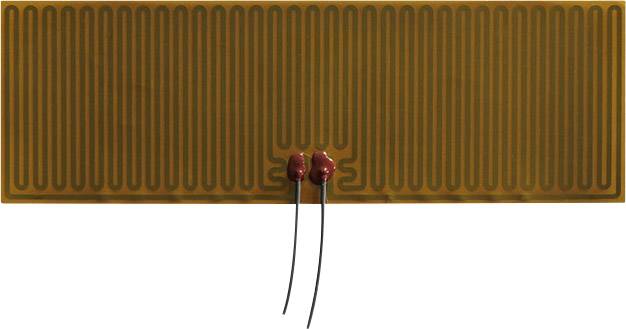

Thermo TECH Polyimide Heating foil self-adhesive 230 V DC, 230 V AC 610 W IP rating IPX4 (L x W) 300 mm x 100 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
230 V DC
230 V AC
Power
610 W
IP rating
IPX4
Surface temperature
+200 °C
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
14-day return policy included
Highlights & Details
Polyimide heating film, self-adhesive
Our service for you
Technical specifications
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
230 V DC
230 V AC
610 W
- Material
Polyimide
- Material thickness
0.2 mm
- Connection
Open end cable
- Lead length
250 mm
IPX4
- Surface temperature
+200 °C
- Length
300 mm
- Width
100 mm
- Dim
(L x W) 300 mm x 100 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1594203 Thermo TECH Polyimide Heating foil self-adhesive 230 V DC, 230 V AC 610 W IP rating IPX4 (L x W) 300 mm x 100 mm
User & Safety Instructions
User & Safety Instructions 1594203 Thermo TECH Polyimide Heating foil self-adhesive 230 V DC, 230 V AC 610 W IP rating IPX4 (L x W) 300 mm x 100 mm
Description
Hints
Due to the high heating power, relative to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and thus be destroyed! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
