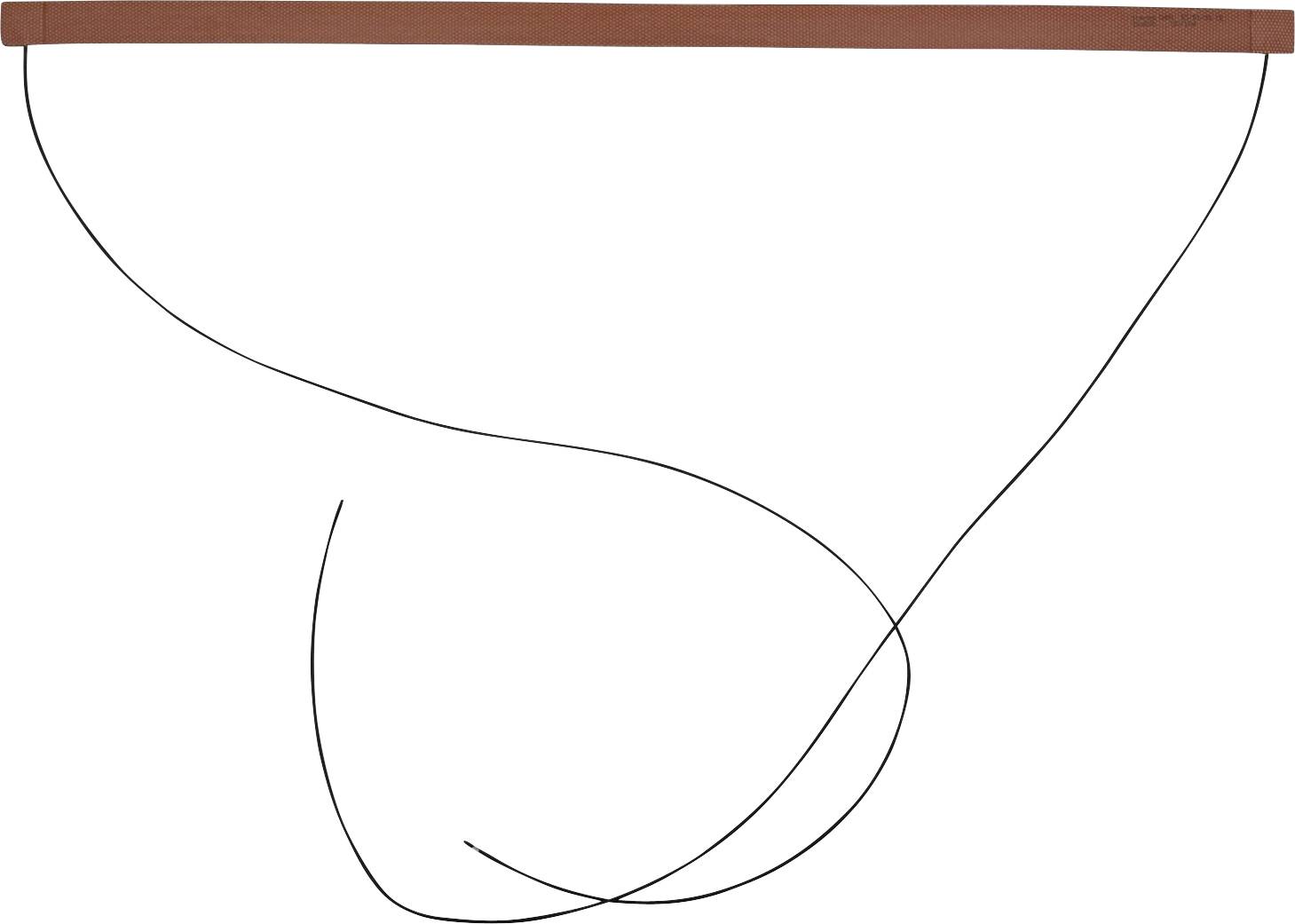

Thermo TECH Silicone Heating element 12 V AC, 12 V DC 15 W IP rating IPX6 (L x W) 580 mm x 20 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
12 V AC
12 V DC
Power
15 W
IP rating
IPX6
Length
580 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Heat density 0.129 W/cm²
- Product type
Heating element
- Operating voltage
12 V AC
12 V DC
15 W
- Material
Silicone
- Material thickness
1.60 mm
IPX6
- Min. surface temperature
-30 °C
- Max. surface temperature
+120 °C
- Length
580 mm
- Width
20 mm
- Dim
(L x W) 580 mm x 20 mm
Documents & Downloads
Datasheet
Datasheet 3742752 Thermo TECH Silicone Heating element 12 V AC, 12 V DC 15 W IP rating IPX6 (L x W) 580 mm x 20 mm
User & Safety Instructions
User & Safety Instructions 3742752 Thermo TECH Silicone Heating element 12 V AC, 12 V DC 15 W IP rating IPX6 (L x W) 580 mm x 20 mm
Description
Adhesive tape Crown 612, PTFE connection wires AWG 22 x 700 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
