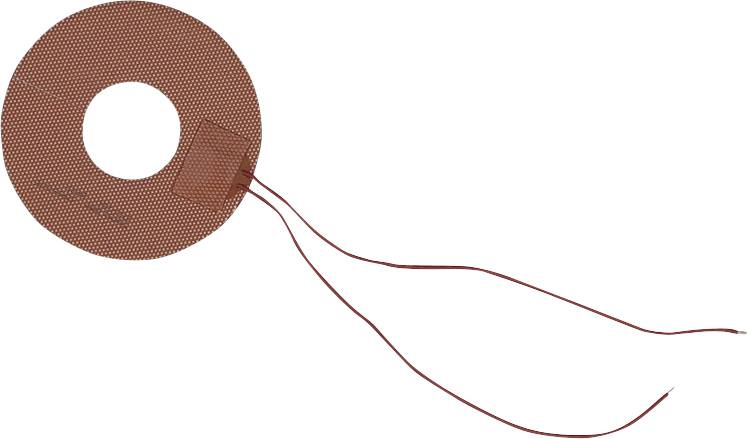

Thermo TECH Silicone Heating element 230 V AC, 230 V DC 28 W IP rating IPX6 (Ø) 100 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
230 V AC
230 V DC
Power
28 W
IP rating
IPX6
(Ø)
100 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Heat density 0.416 W/cm²
- Product type
Heating element
- Operating voltage
230 V AC
230 V DC
28 W
- Material
Silicone
- Material thickness
1.60 mm
IPX6
- Min. surface temperature
-30 °C
- Max. surface temperature
+150 °C
- (Ø)
100 mm
- Dim
(Ø) 100 mm
Documents & Downloads
Datasheet
Datasheet 3742757 Thermo TECH Silicone Heating element 230 V AC, 230 V DC 28 W IP rating IPX6 (Ø) 100 mm
User & Safety Instructions
User & Safety Instructions 3742757 Thermo TECH Silicone Heating element 230 V AC, 230 V DC 28 W IP rating IPX6 (Ø) 100 mm
Description
Adhesive tape 3M 467MP 200MP, silicone connection wires AWG 22 x 200 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
