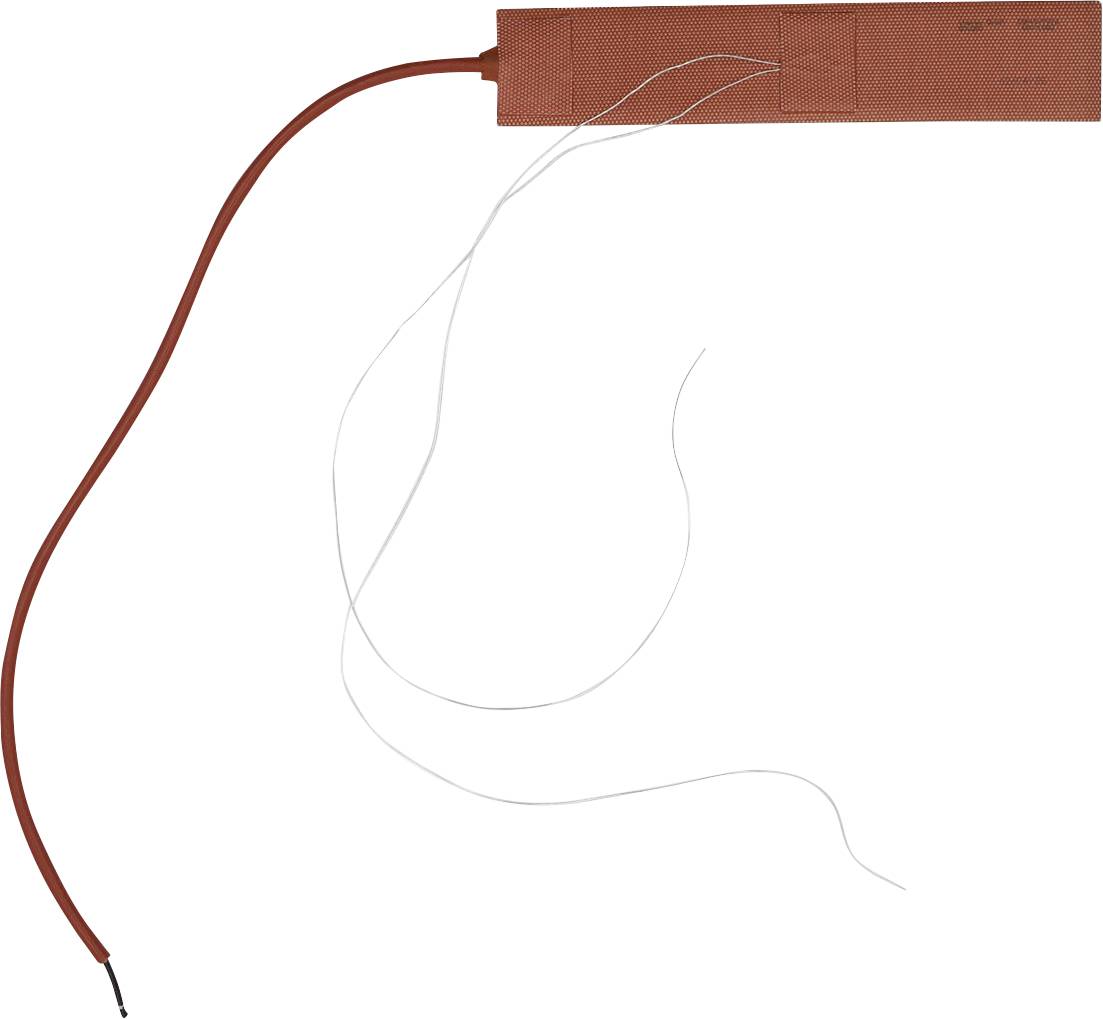

Thermo TECH Silicone Heating element 24 V AC, 24 V DC 39 W IP rating IPX6 (L x W) 250 mm x 50 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
24 V AC
24 V DC
Power
39 W
IP rating
IPX6
Length
250 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Heat density 1.240 W/cm²
- Product type
Heating element
- Operating voltage
24 V AC
24 V DC
39 W
- Material
Silicone
- Material thickness
1.60 mm
IPX6
- Min. surface temperature
-30 °C
- Max. surface temperature
+150 °C
- Length
250 mm
- Width
50 mm
- Dim
(L x W) 250 mm x 50 mm
Documents & Downloads
Datasheet
Datasheet 3742755 Thermo TECH Silicone Heating element 24 V AC, 24 V DC 39 W IP rating IPX6 (L x W) 250 mm x 50 mm
User & Safety Instructions
User & Safety Instructions 3742755 Thermo TECH Silicone Heating element 24 V AC, 24 V DC 39 W IP rating IPX6 (L x W) 250 mm x 50 mm
Description
Adhesive tape 3M 467MP 200MP, silicon connection cable 2x 0.75 mm² x 500 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
