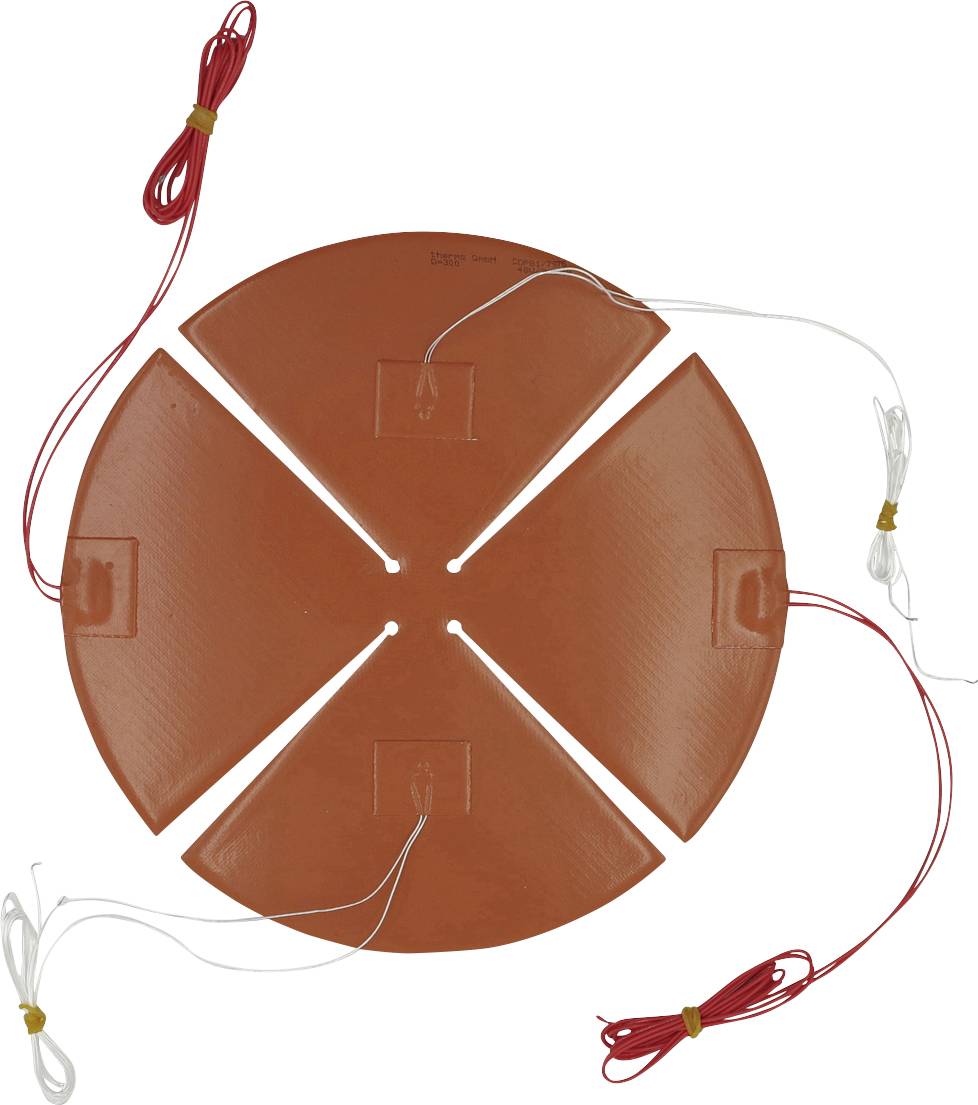

Thermo TECH Silicone Heating element self-adhesive 24 V AC, 24 V DC 200 W IP rating IPX6 (Ø x L) 300 mm x 300 mm
EAN:
Part number:
Item no:
Product type
Heating element
Operating voltage
24 V AC
24 V DC
Power
200 W
IP rating
IPX6
Length
300 mm
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Heat density 1.132 W/cm²
- Product type
Heating element
- Features
self-adhesive
- Operating voltage
24 V AC
24 V DC
200 W
- Material
Silicone
- Material thickness
1.60 mm
- Connection
Braid
- Lead length
1000 mm
IPX6
- Min. surface temperature
-30 °C
- Max. surface temperature
+150 °C
- Length
300 mm
- (Ø)
300 mm
- Dim
(Ø x L) 300 mm x 300 mm
Documents & Downloads
Datasheet
Datasheet 3742754 Thermo TECH Silicone Heating element self-adhesive 24 V AC, 24 V DC 200 W IP rating IPX6 (Ø x L) 300 mm x 300 mm
User & Safety Instructions
User & Safety Instructions 3742754 Thermo TECH Silicone Heating element self-adhesive 24 V AC, 24 V DC 200 W IP rating IPX6 (Ø x L) 300 mm x 300 mm
Description
Power divided in two heating circuits each with 100W, heating surface with 4x slotted, adhesive tape 3M 467MP 200MP, 2x PTFE-connection wires AWG 20 x 1000 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
