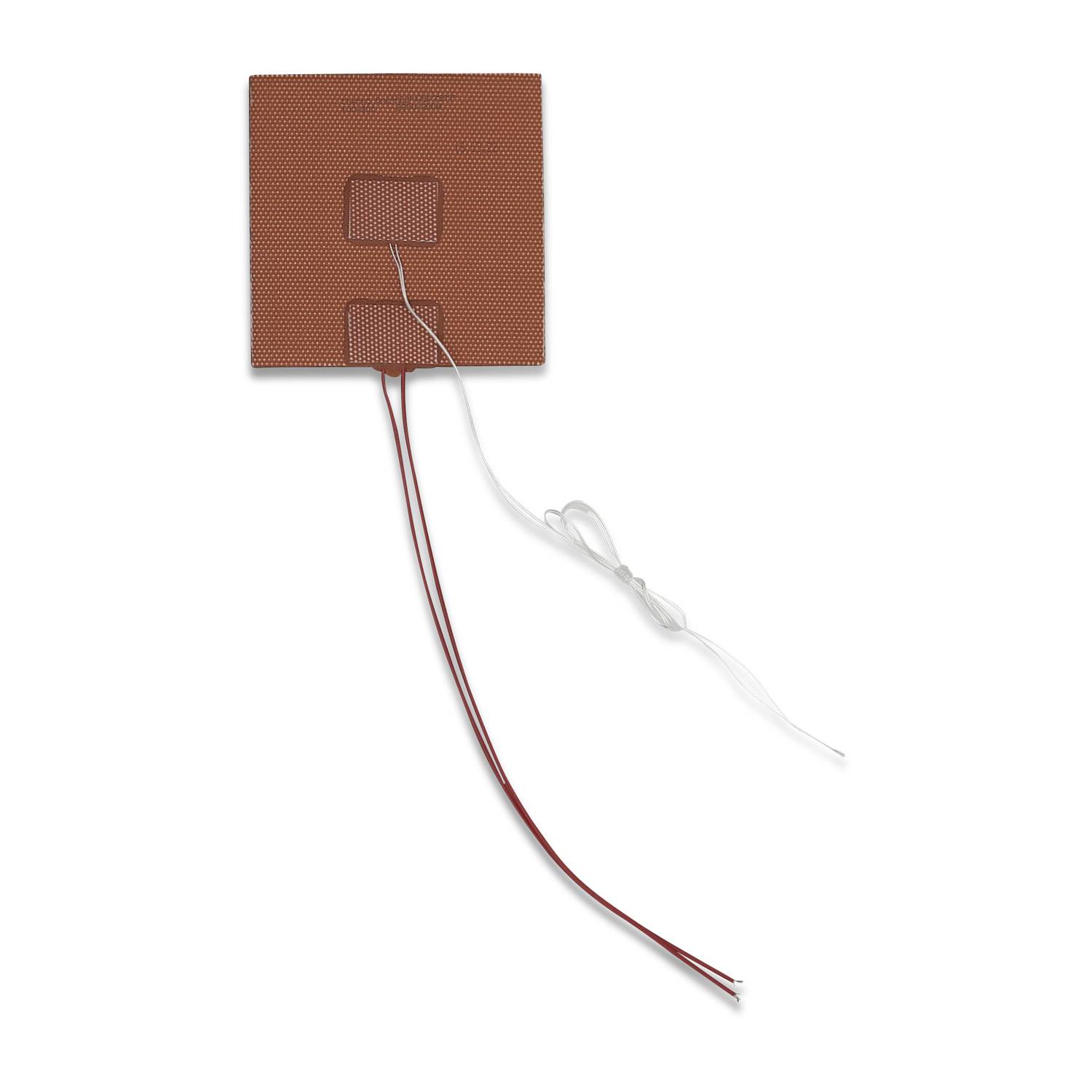

Thermo TECH Silicone Heating foil fibreglass-reinforced 230 V AC, 230 V DC 200 W IP rating IPX7 (L x W) 100 mm x 100 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Technical specifications
- Features
fibreglass-reinforced
- Operating voltage
230 V AC
230 V DC
200 W
- Material
Silicone
IPX7
- Length
100 mm
- Width
100 mm
- Dim
(L x W) 100 mm x 100 mm
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 2734826 Thermo TECH Silicone Heating foil fibreglass-reinforced 230 V AC, 230 V DC 200 W IP rating IPX7 (L x W) 100 mm x 100 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
