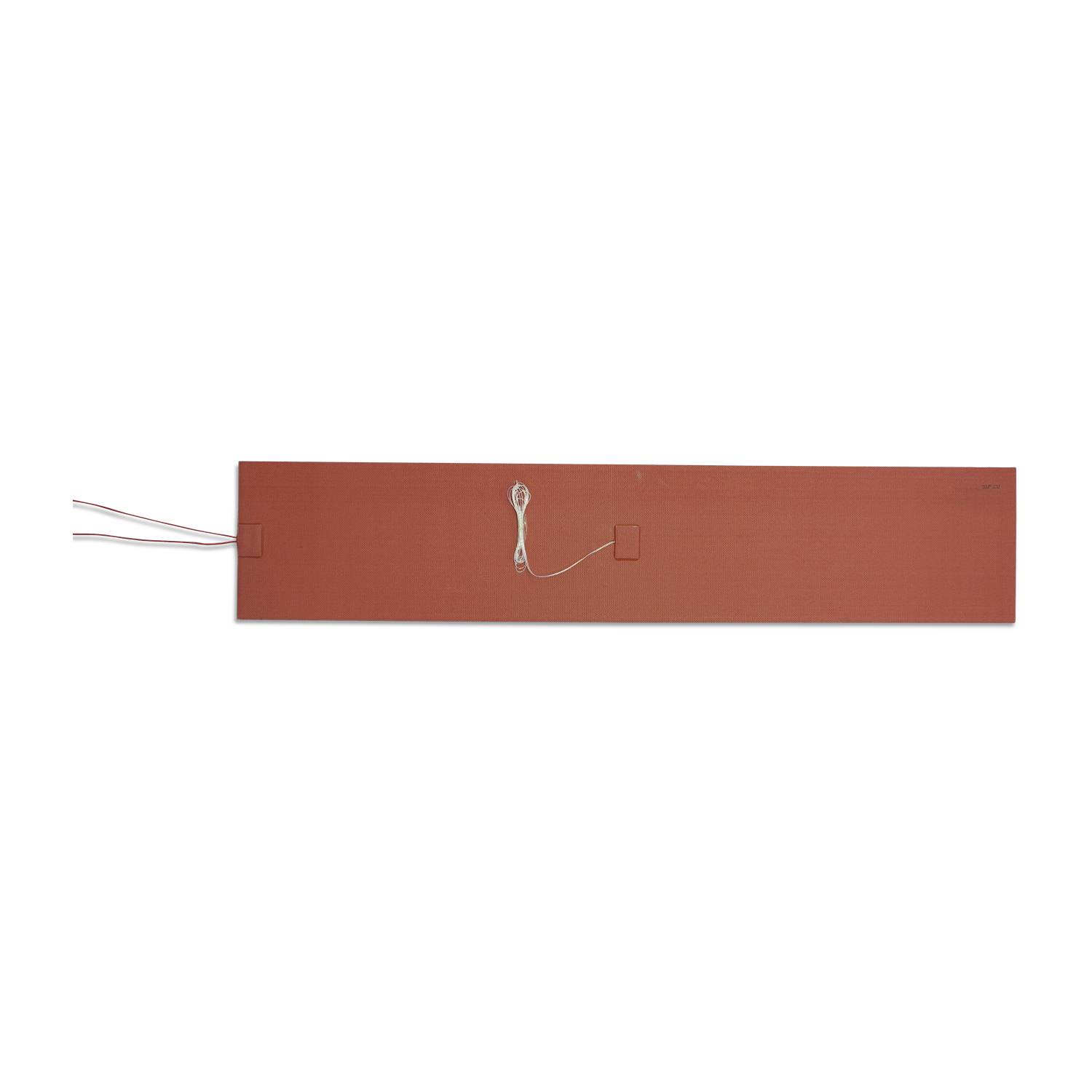

Thermo TECH Silicone Heating foil fibreglass-reinforced 230 V AC, 230 V DC 400 W IP rating IPX7 (L x W) 200 mm x 1000 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Technical specifications
- Features
fibreglass-reinforced
- Operating voltage
230 V AC
230 V DC
400 W
- Material
Silicone
IPX7
- Length
200 mm
- Width
1000 mm
- Dim
(L x W) 200 mm x 1000 mm
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 2734821 Thermo TECH Silicone Heating foil fibreglass-reinforced 230 V AC, 230 V DC 400 W IP rating IPX7 (L x W) 200 mm x 1000 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
