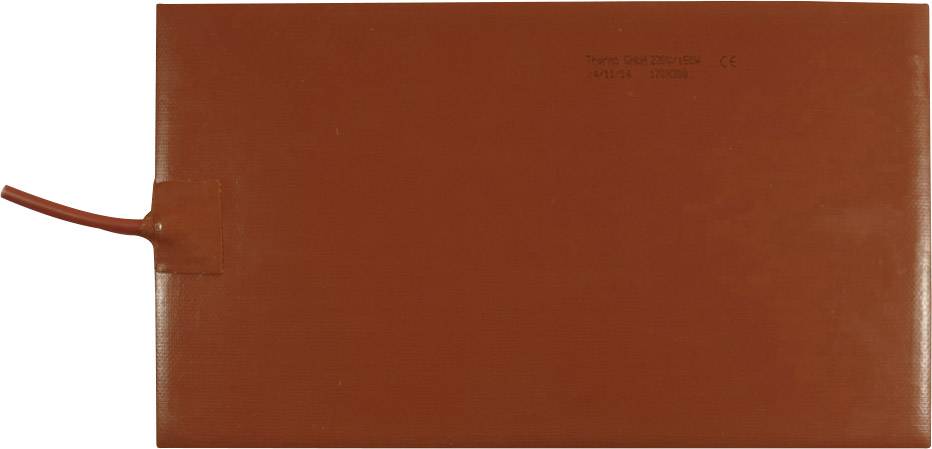

Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 150 W IP rating IPX7 (L x W) 300 mm x 170 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
230 V DC
230 V AC
Power
150 W
IP rating
IPX7
Surface temperature
+200 °C
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
14-day return policy included
Highlights & Details
Silicone heating film, self adhesive
Our service for you
Technical specifications
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
230 V DC
230 V AC
150 W
- Material
Silicone
- Material thickness
1.6 mm
- Connection
Open end cable
- Lead length
1000 mm
IPX7
- Surface temperature
+200 °C
- Length
300 mm
- Width
170 mm
- Dim
(L x W) 300 mm x 170 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1594239 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 150 W IP rating IPX7 (L x W) 300 mm x 170 mm
User & Safety Instructions
User & Safety Instructions 1594239 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 150 W IP rating IPX7 (L x W) 300 mm x 170 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
