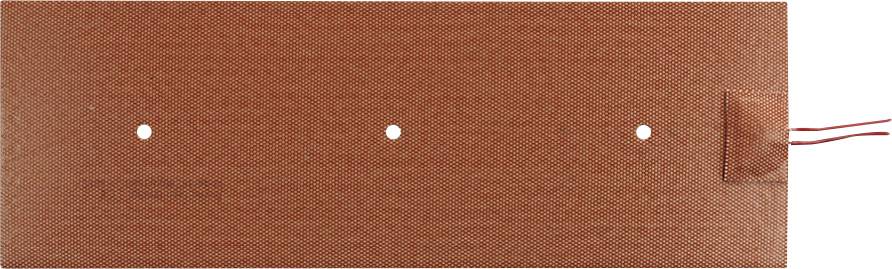

Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 83 W IP rating IPX7 (L x W) 360 mm x 120 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Features
self-adhesive
- Operating voltage
230 V DC
230 V AC
83 W
- Material
Silicone
- Material thickness
1.6 mm
- Connection
Open end cable
- Lead length
1500 mm
IPX7
- Surface temperature
+90 °C
- Length
360 mm
- Width
120 mm
- Dim
(L x W) 360 mm x 120 mm
- RoHS-compliant
Yes
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 1594231 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 83 W IP rating IPX7 (L x W) 360 mm x 120 mm
User & Safety Instructions
User & Safety Instructions 1594231 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 83 W IP rating IPX7 (L x W) 360 mm x 120 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
