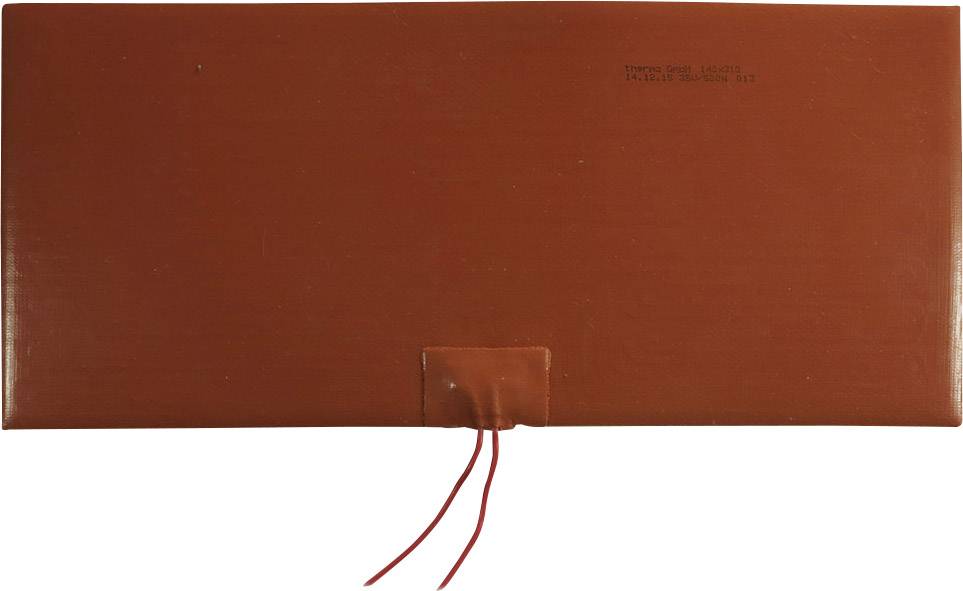

Thermo TECH Silicone Heating foil self-adhesive 24 V DC, 24 V AC 235 W IP rating IPX7 (L x W) 310 mm x 140 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
24 V DC
24 V AC
Power
235 W
IP rating
IPX7
Surface temperature
+170 °C
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Silicone heating film, self adhesive
Our service for you
Technical specifications
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
24 V DC
24 V AC
235 W
- Material
Silicone
- Material thickness
1.6 mm
- Connection
Open end cable
- Lead length
2000 mm
IPX7
- Surface temperature
+170 °C
- Length
310 mm
- Width
140 mm
- Dim
(L x W) 310 mm x 140 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1594223 Thermo TECH Silicone Heating foil self-adhesive 24 V DC, 24 V AC 235 W IP rating IPX7 (L x W) 310 mm x 140 mm
User & Safety Instructions
User & Safety Instructions 1594223 Thermo TECH Silicone Heating foil self-adhesive 24 V DC, 24 V AC 235 W IP rating IPX7 (L x W) 310 mm x 140 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
