Thicon Models 50169 1:14 Differential 1 Set
EAN:
Part number:
Item no:
Number
Total (€ 621.01 / piece)
€ 621.01
plus VAT.
14-day return policy included
Highlights & Details
1:14 8 x 8 differential set V 2 lockable metal
- Incl. 4 axles
Technical specifications
- Product type
Differential
- Scale
1:14
- Content
1 Set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1669344 Thicon Models 50169 1:14 Differential 1 Set
Description

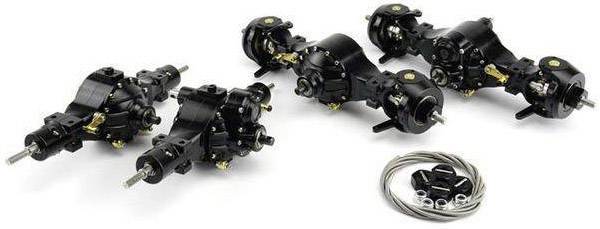

8 x 8-set consisting of front axle without drive shaft, front axle with drive shaft, Rear axle with drive shaft and rear axle without drive shaft.
This text is machine translated.
This text is machine translated.
Features
- The axes are made of aluminum, ball bearings and lockable
- The front axles have a large impact thanks to double cardan joints angle. Standard hexagon Trailer for all driven front wheels
- The axes can be combined with the original TAMIYA-axis
- Shaft diameter: 5mm
- Reduction: 1:2.66
- Axis rear: Width via M4 thread: 155 mm, width case: 120 mm, Distance Spring Consumption: 79 mm x 12 mm
- Front axle: Width via M4 thread: 170 mm, width axle leg: 143 mm, Distance Spring Consumption: 79 mm x 12 mm.
Scope of delivery
- Front axle without drive shaft.
- Front Axle Drive Shaft.
- Rear axle with drive shaft.
- Rear axle without drive shaft.
