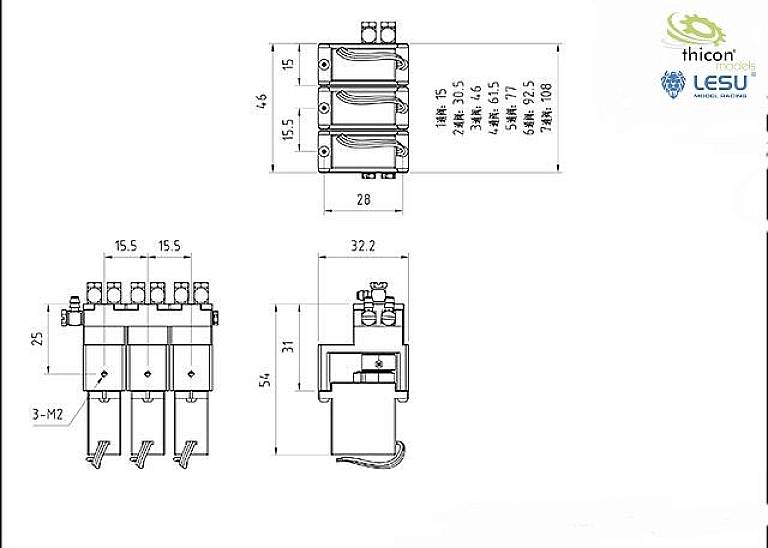

Stroke drawing/circuit diagram
1/2
Stroke drawing/circuit diagram
Thicon Models 56039 Messing 7-fach Hydraulic valve 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Pressure max. 30 bar
- Product type
Hydraulic valve
- Dim
(L x W x H) 108 x 60 x 32 mm
- Content
1 pc(s)
- Length
108 mm
- Width
60 mm
- Height
32 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2614455 Thicon Models 56039 Messing 7-fach Hydraulic valve 1 pc(s)
Description
Brass control valve with servo and M3 connection nipple for 4mm hose.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Fully assembled control valve with servos and connection nipples
Hints
The control valve does not have an oil free wheel in neutral position!When all valves are in neutral, the entire pump pressure is applied!However, a pressure limiter valve no.: 56017 can be connected to the control block.
