Thicon Models 58100 Kettenbagger 74t 1:14 Electric RC scale model Kit
EAN:
Part number:
Item no:
Number
Total (€ 5,676.47 / piece)
€ 5,676.47
plus VAT.
Highlights & Details
1:14 74t tracked digger kit made of stainless steel with hydraulics
Technical specifications
- Dim
(L x W x H) 952 x 294 x 272 mm
- Weight
27 kg
- Height
272 mm
- Length
952 mm
- Width
294 mm
- Engine type
Electric
- Model craft type
Heavy-duty vehicle
- Scale
1:14
- Model version
Kit
- Product type
RC scale model
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2390645 Thicon Models 58100 Kettenbagger 74t 1:14 Electric RC scale model Kit
Description

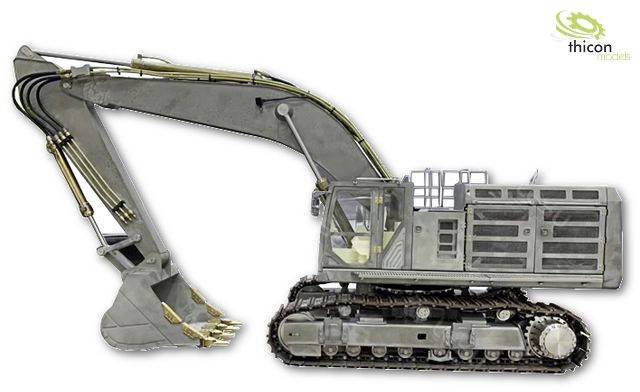

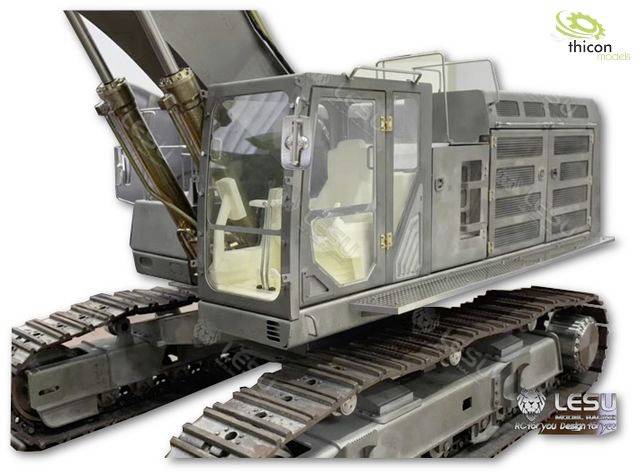

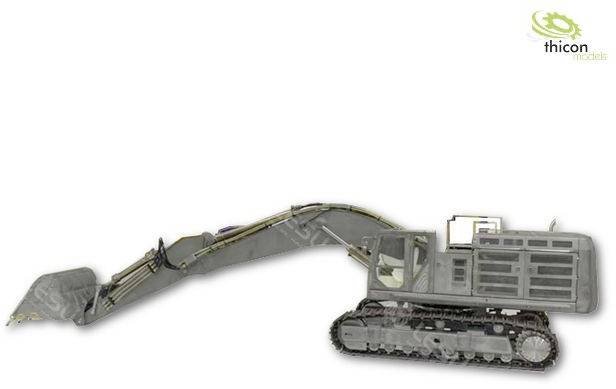

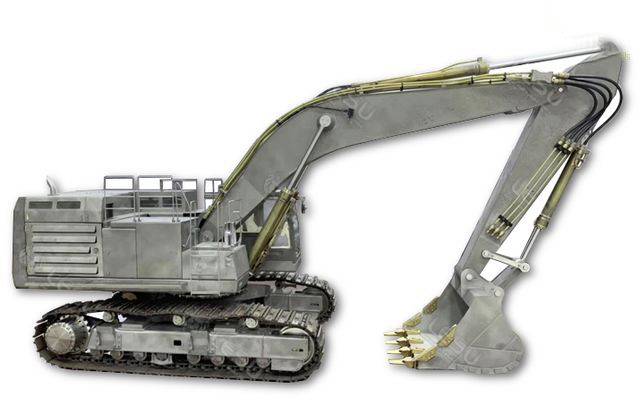

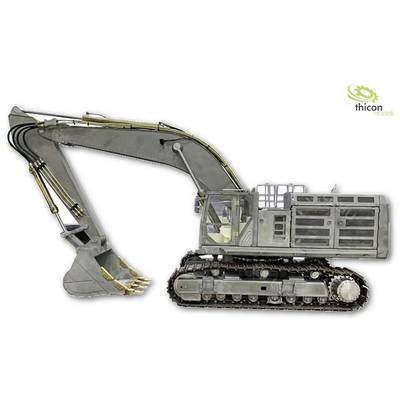

Precisely manufactured metal excavator kit with hydraulics.
The chain excavator is mainly made of stainless steel. The chain drive takes place via two powerful brushless motors, which are installed directly in the hubs. The electric connections of the motors are made via a mechanical rotary drive, which allows the upperstructure to be turned continuously.
The new high-performance hydraulic pump has a built-in pressure gauge for pressure monitoring.
The hydraulic system even has an oil cooler with an active fan.
The machine comes with a 6-way hydraulic control block as standard on thicon models!
The hydraulic cylinders are fitted with brass tubes.
This text is machine translated.
The chain excavator is mainly made of stainless steel. The chain drive takes place via two powerful brushless motors, which are installed directly in the hubs. The electric connections of the motors are made via a mechanical rotary drive, which allows the upperstructure to be turned continuously.
The new high-performance hydraulic pump has a built-in pressure gauge for pressure monitoring.
The hydraulic system even has an oil cooler with an active fan.
The machine comes with a 6-way hydraulic control block as standard on thicon models!
The hydraulic cylinders are fitted with brass tubes.
This text is machine translated.
Features
- Max. Length of pivot point: 1050 mm
- Chain width 55 mm
- Chain length 418 mm
- Operating pressure approx. 30 bar.
Scope of delivery
- Excavator kit unpainted
- Hydraulic system with pump
- Oil cooler
- 6-way control valve
- Motors
- Controllers
- Servos
- Construction manual.
Hints
Required for operation:
Hydraulic oil, remote control with at least 8 channels, 7.4 V LiPo battery, charger.
