Thicon Models 58200 Gabelstapler Linde H40D 1:14 RC scale model Kit
EAN:
Part number:
Item no:
Number
Total (€ 1,478.15 / piece)
€ 1,478.15
plus VAT.
Highlights & Details

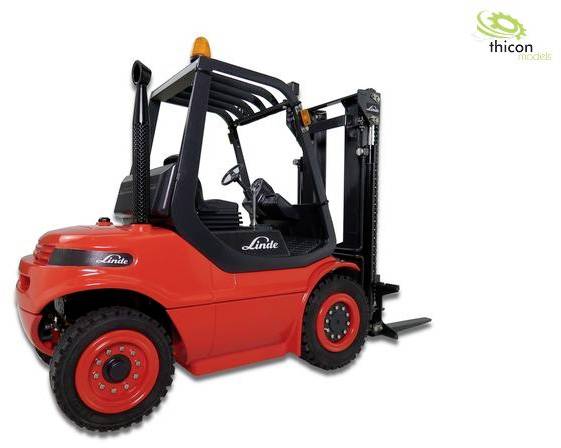

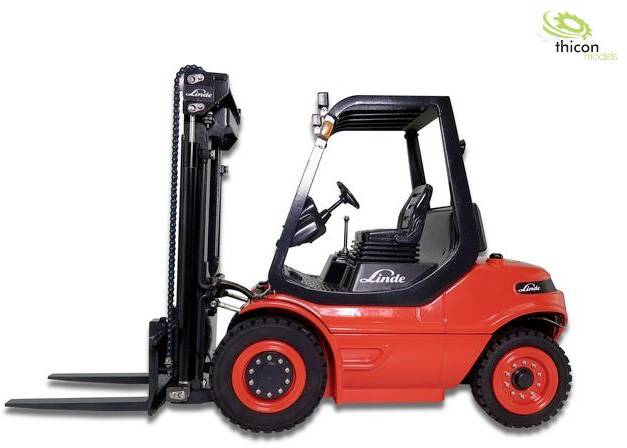

1:14 Linde H40D forklift truck kit, metal with hydraulics
Technical specifications
- Dim
(L x W x H) 325 x 108 x 201 mm
- Weight
2650 g
- Height
201 mm
- Length
325 mm
- Width
108 mm
- Model craft type
Forklift
- Scale
1:14
- Model version
Kit
- Product type
RC scale model
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2390656 Thicon Models 58200 Gabelstapler Linde H40D 1:14 RC scale model Kit
Description
Compact metal fork lift truck with hydraulic mast, light and sound module!
The V2 version now has a rear axle suspension.
Our forklift truck is standard in red powder-coated and licensed by LINDE!
Each model receives a certificate with a serial number.
The entire model is made of metal and extremely precisely manufactured.

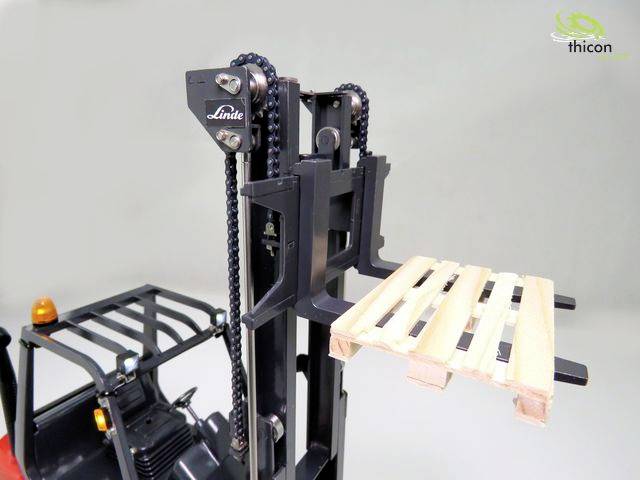

The mast is tilted and extended via a hydraulic system. The driving is done electrically via an integrated differential in the front car. The steering is done via a mini-servo in the rear.
All shafts and wheels are naturally ball-bearing.
The hydraulic system is set to approx. 10 bar was sufficient for a lifting force of approx. 1000 g.
This text is machine translated.
The V2 version now has a rear axle suspension.
Our forklift truck is standard in red powder-coated and licensed by LINDE!
Each model receives a certificate with a serial number.
The entire model is made of metal and extremely precisely manufactured.
The mast is tilted and extended via a hydraulic system. The driving is done electrically via an integrated differential in the front car. The steering is done via a mini-servo in the rear.
All shafts and wheels are naturally ball-bearing.
The hydraulic system is set to approx. 10 bar was sufficient for a lifting force of approx. 1000 g.
This text is machine translated.
Features
- Fork height max. 220 mm
- Mast height max. 306 mm
- Wheel base 145 mm
- Tilt angle: +10°/-6.5°
- Steering wheel radius left: 301 mm
- Right-hand steering wheel radius 247 mm.

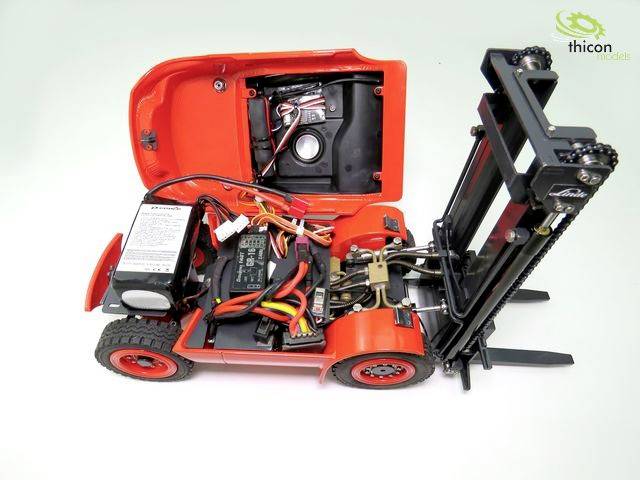

Scope of delivery
- Linde-red powder-coated forklift kit
- Drive with motor and controller
- Steering servo
- Brushless hydraulic pump with regulator
- Double control valve with servos
- Attachment parts
- Lighting system
- Sound module
- Construction manual.
Hints
Required for operation:
Hydraulic oil, 7.4 V battery, remote control with at least 7 channels.
