Thomsen Electrolytic capacitor Snap-in 10 mm 220 µF 200 V DC 20 % (Ø x H) 25 mm x 30 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Snap-in
Capacity (elec.)
220 µF
Nominal voltage
200 V DC
CS
10 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.51 / piece)
€ 5.87
-57 %
€ 2.51
plus VAT.
Highlights & Details
Thomsen Electrolytic capacitor Snap-in 10 mm 220 µF 200 V DC 20 % (Ø x H) 25 mm x 30 mm 1 pc(s)
- Low ESR
- This text is machine translated.
Technical specifications
- Product type
Electrolytic capacitor
- Type
Snap-in
- CS
10 mm
- Dim
(Ø x H) 25 mm x 30 mm
- Capacity (elec.)
220 µF
- Nominal voltage
200 V DC
- Tolerance ±
20 %
- Height
30 mm
- (Ø)
25 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
476021
- Nominal voltage (details)
200 V
- Temperature range
≤250 V = -40 - +105 °C, ≤400 V = -25 - +85 °C
Documents & Downloads
Datasheet

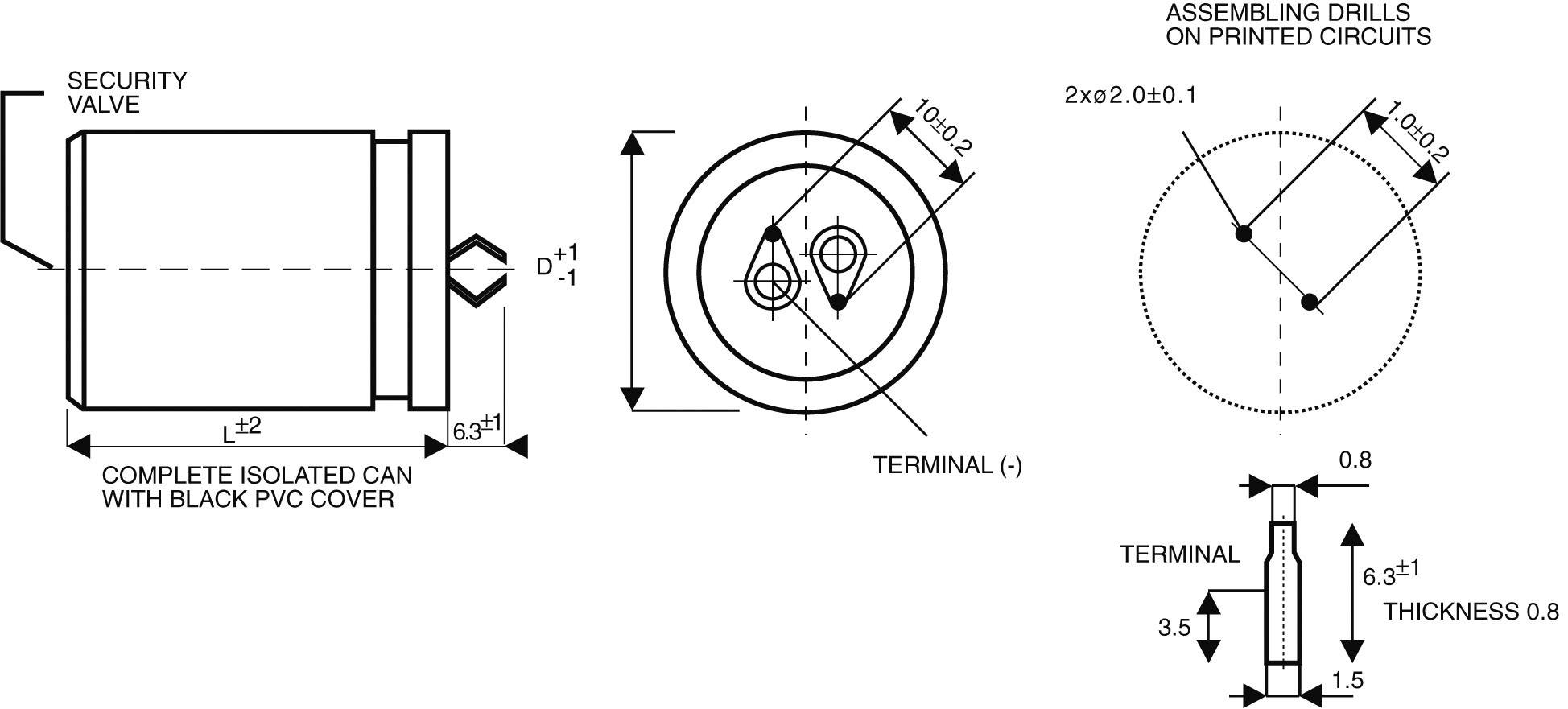

Datasheet 476021 Thomsen Electrolytic capacitor Snap-in 10 mm 220 µF 200 V DC 20 % (Ø x H) 25 mm x 30 mm 1 pc(s)
Description
For increased requirements, usage for switching power supplies, in industrial electronics etc., 2000 h at 85 ° C, snap-in mounting
