TinkerForge 2145 Loudspeaker Suitable for (single board PCs) TinkerForge 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details

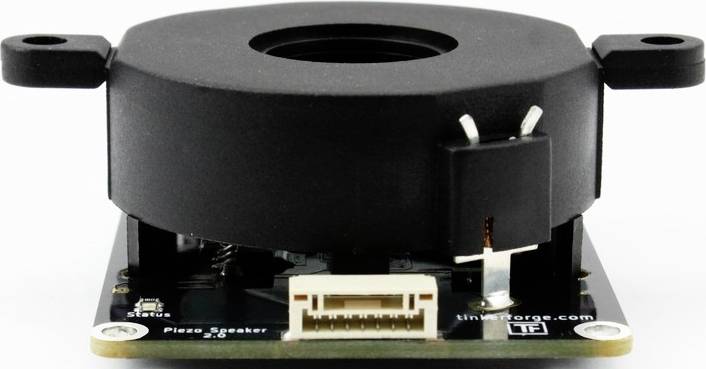

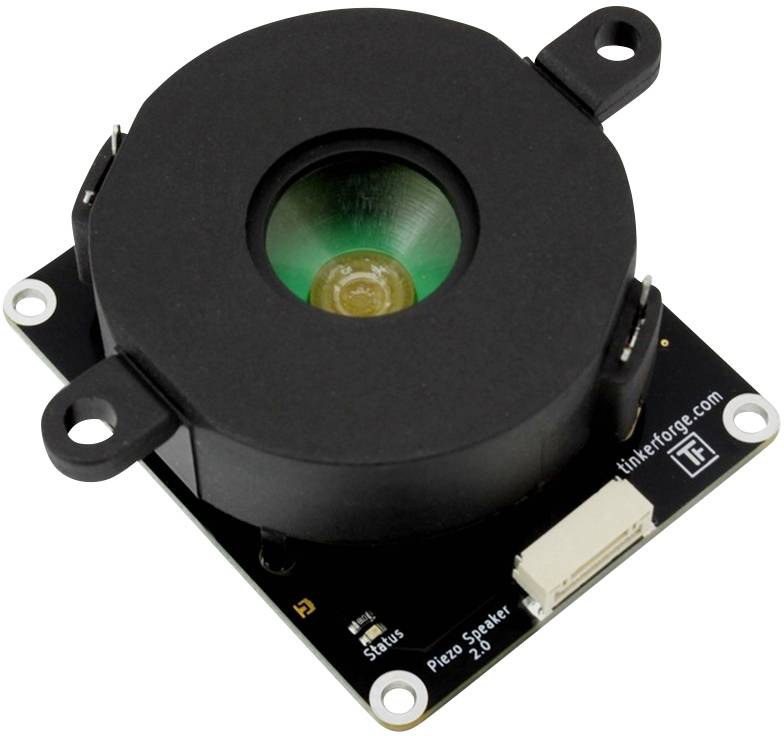

Piezo speaker Bricklet 2.0
- Can generate a configurable beep between 50Hz and 15000Hz
- Can output an adjustable alarm/siren sound
- Volume is configurable between 85dB(A) and 110dB(A)
Technical specifications
- Dimensions (W x D x H): 55x45x20 mm
- Weight: 20g
- Product type
Loudspeaker
- Suitable for
TinkerForge
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2255004 TinkerForge 2145 Loudspeaker Suitable for (single board PCs) TinkerForge 1 pc(s)
Description
The Piezo Speaker Bricklet 2.0 can be used to generate sounds with different frequencies and volume bars with Bricks.
The available frequency range is 50Hz to 15000Hz. The volume can be adjusted between 85dB(A) and 110dB(A).
In addition, the Bricklet has support for alarm and siren tones. In this mode, a sweep is generated that runs a frequency range with configurable step size and length.
The Piezo Speaker Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.
This text is machine translated.
The available frequency range is 50Hz to 15000Hz. The volume can be adjusted between 85dB(A) and 110dB(A).
In addition, the Bricklet has support for alarm and siren tones. In this mode, a sweep is generated that runs a frequency range with configurable step size and length.
The Piezo Speaker Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.
This text is machine translated.
Features
- Buzzer: PT-4532PLQ
- Power consumption: 55mW (11mA at 5V)
- Frequency range: 50Hz - 15000Hz (configurable)
- Volume: 85dB(A) - 110dB(A) @50cm/1kHz (configurable)
