TinkerForge 6130 Load cell Suitable for (single board PCs) TinkerForge 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details

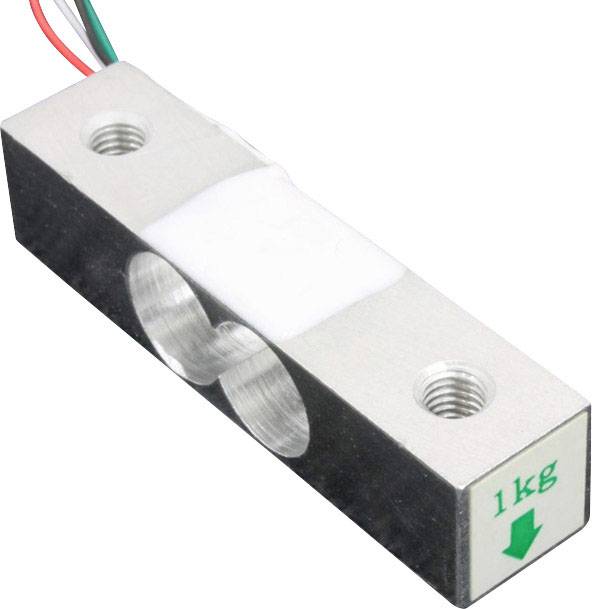

TinkerForge 6130 load cell 1kg CZL635
- Micro load cell
- 0-1kg measuring range
- 0.05% accuracy
- Compatible to the Load Cell Bricklet
Technical specifications
- Dimensions (WxDxH): 55x12.7x12.7 mm
- Weight: 20g
- Mounting: 2x M5
- Product type
Load cell
- Suitable for
TinkerForge
- Packaging type
Piece
- Tool type
Tester
- Content
1 pc(s)
- Series
TinkerForge
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2254969 TinkerForge 6130 Load cell Suitable for (single board PCs) TinkerForge 1 pc(s)
Description
This micro load cell is compatible with Load Cell Bricklet 2.0.
This text is machine translated.
This text is machine translated.
Features
- Measuring range: 0kg to 1kg
- Nominal output ratio: 1.0±0.15mV/V
- Non-linearity: 0.05%FS
- Hysteresis: 0.03%FS
- Repeatability: 0.05%FS
- Drift: 0.05%FS/10min
- Temperature effect at zero point: 0.03%FS/10°C
- Temperature effect over measuring range: 0.02%FS/10°C
- Zero point balance: ±1.0%FS
- Input impedance: 1000±10Ω
- Output impedance: 1000±3Ω
- Insulation resistance: ≥ 2000MΩ at 100V (DC)
- Recommended Excitation voltage: 3V to 10V (DC)
- Permitted Excitation voltage: 3V to 18V (DC)
- Compensated temperature range: -10°C to +40°C
- Operating temperature range: -20°C to +60°C
- Limit range Overload: 120%FS
- Maximum overload: 150%FS
- Connections: Excitation+: Red; Excitation-: Black; Signal+: Green; Signal-: White
