Buy TOOLCRAFT Digital microscope 1080 p Digital zoom (max.): 100 x

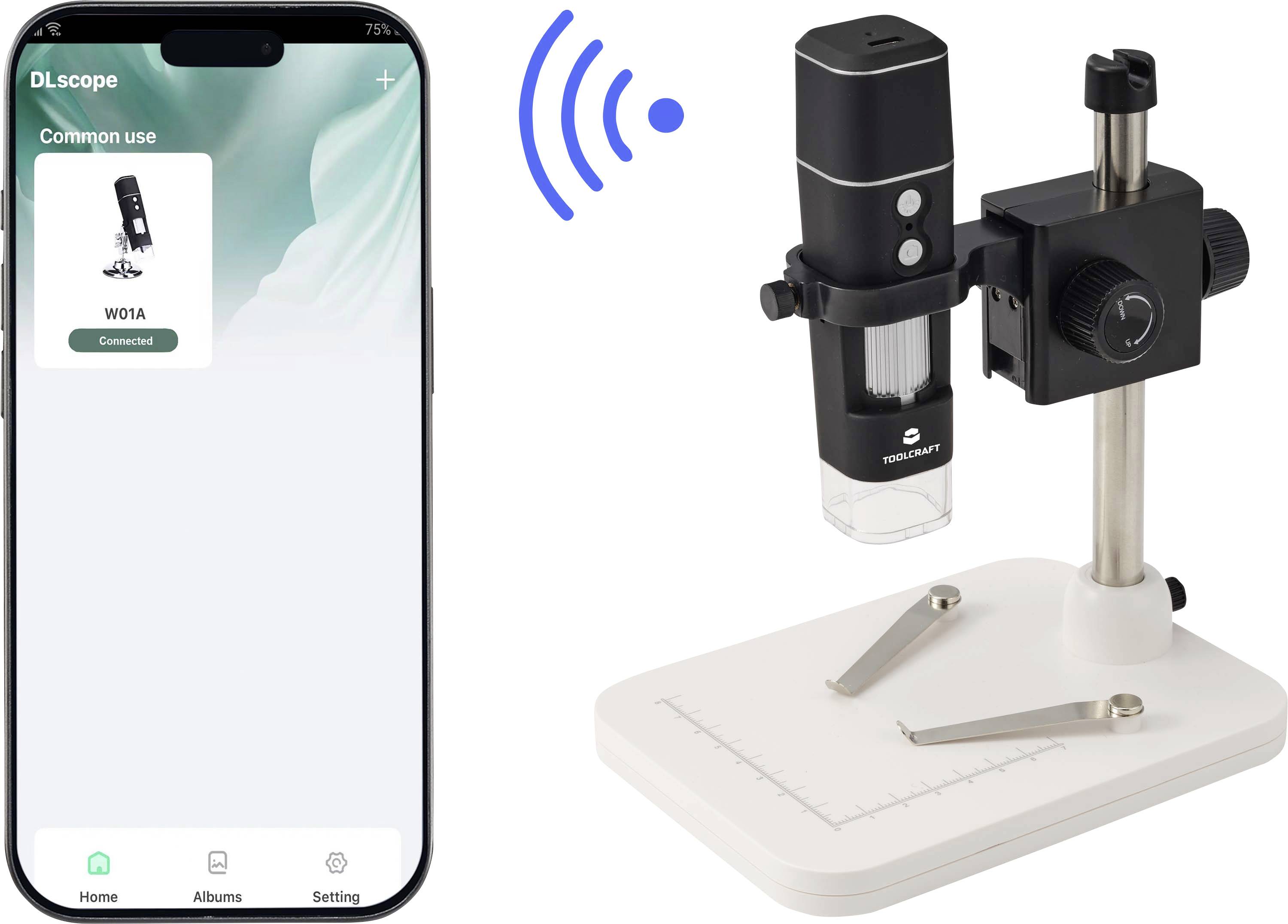

Smartphone app 'DLscope' connected wirelessly to a digital microscope on a stand, showing common use and device pairing.

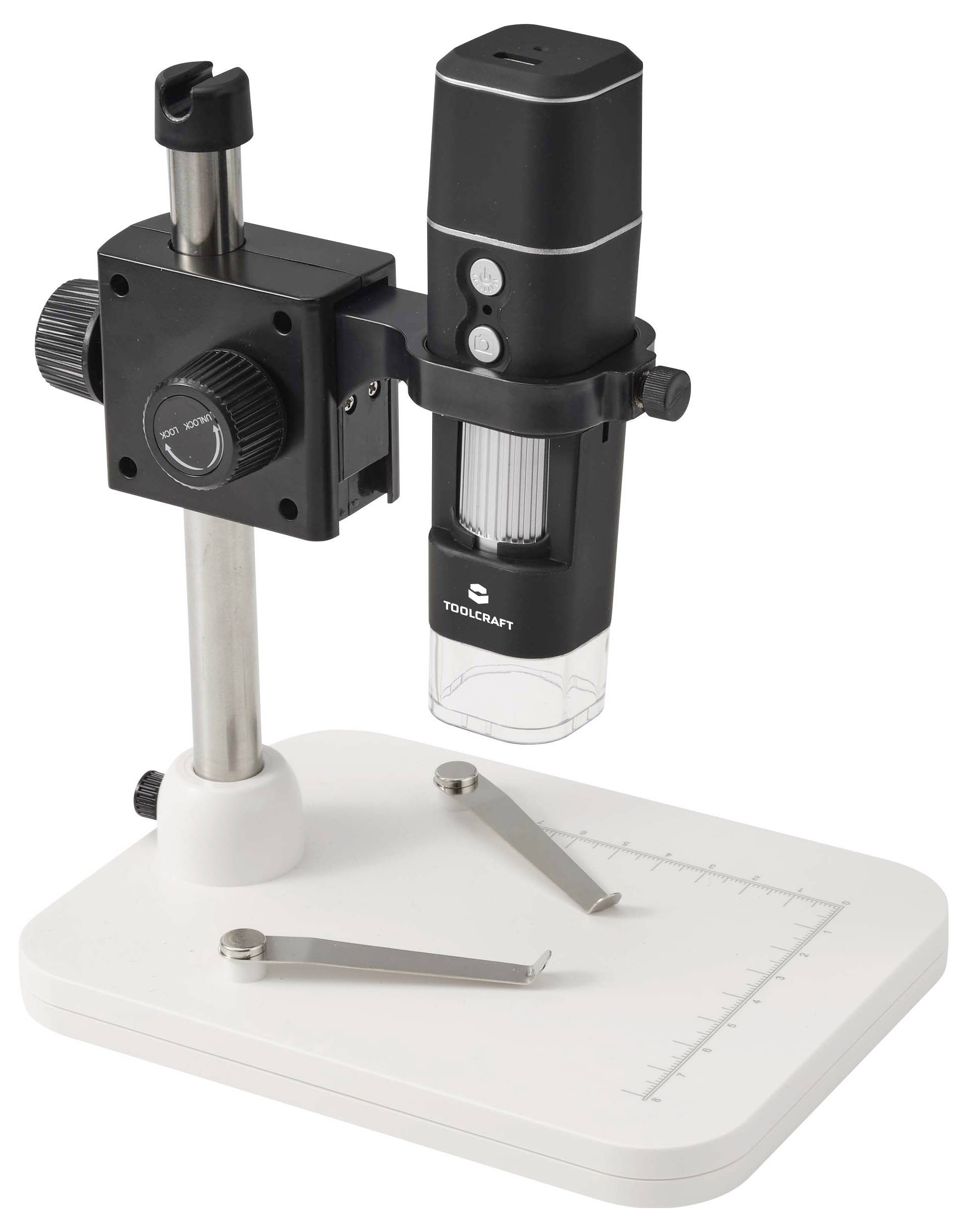

Digital microscope on a stand with adjustable mount and white measuring base, used for close-up inspection and positioning of small samples.

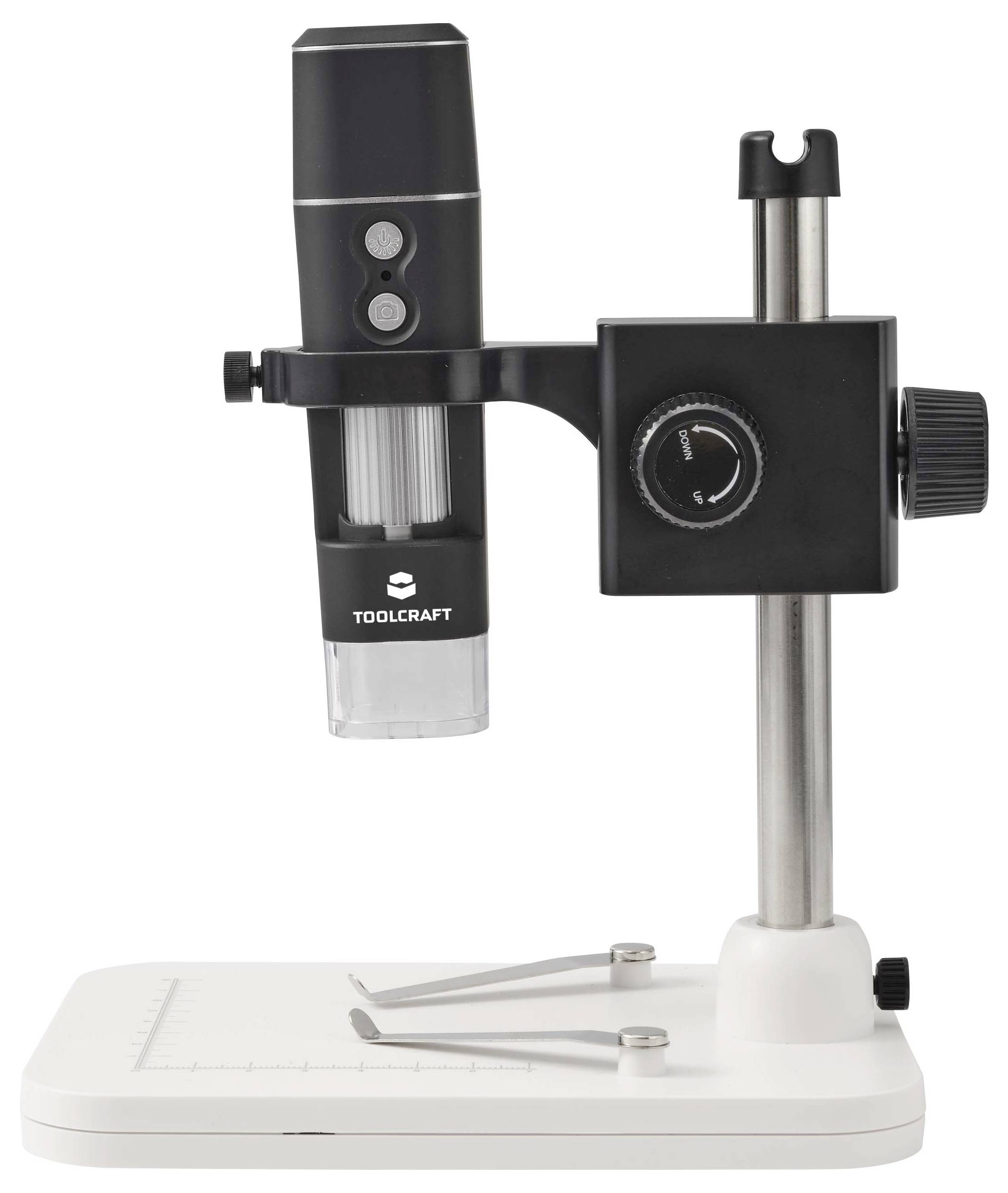

A Toolcraft microscope camera mounted on a white stand, showing the adjustable arm, focus dial, and LED-lit lens for magnified viewing.

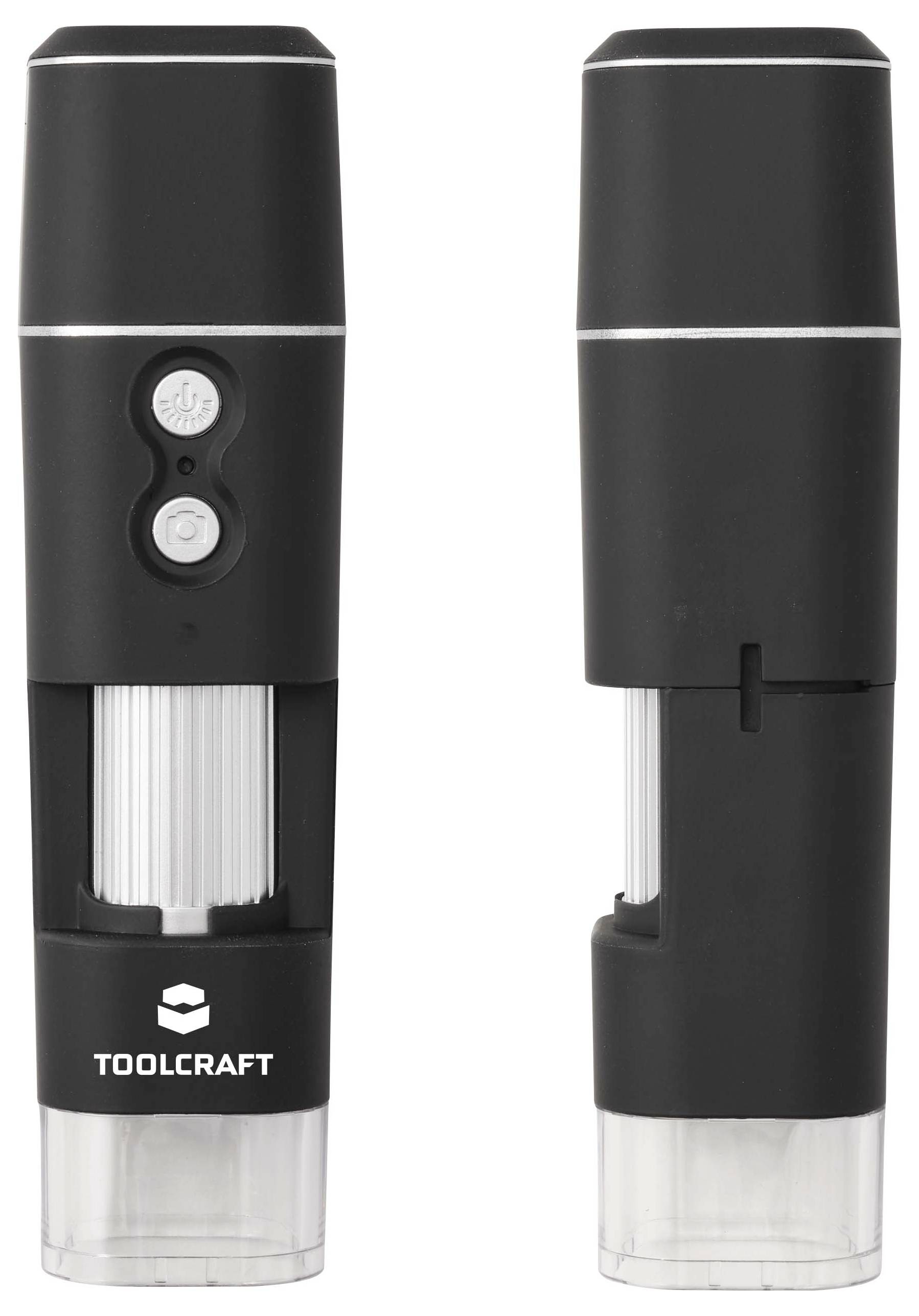

Two views of a black Toolcraft handheld cylindrical device with buttons and a clear lower chamber, shown front and side.<br>

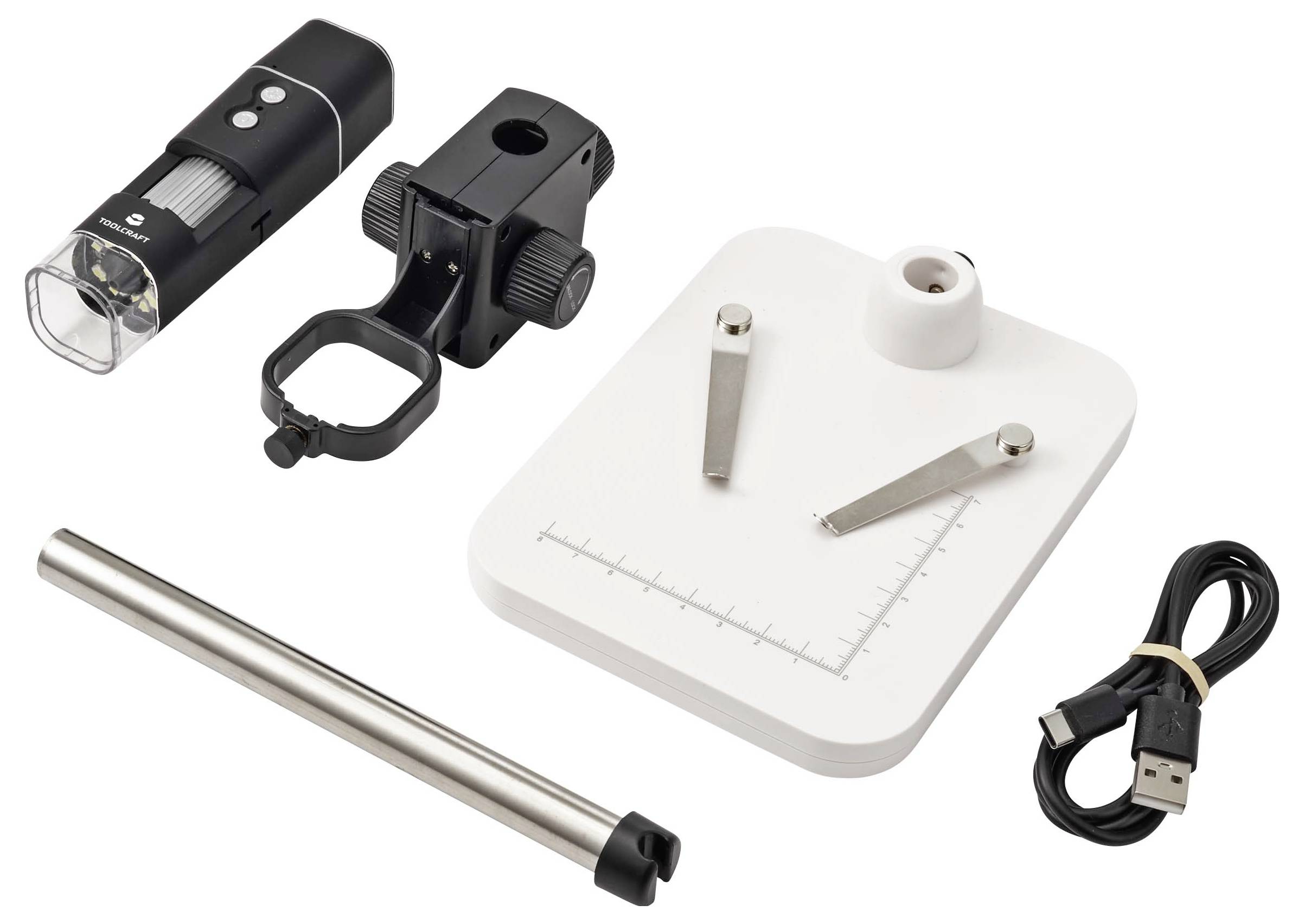

A digital microscope kit with two microscope attachments, a white base stand with measurement guide, a metal rod, and a USB cable on a white background.

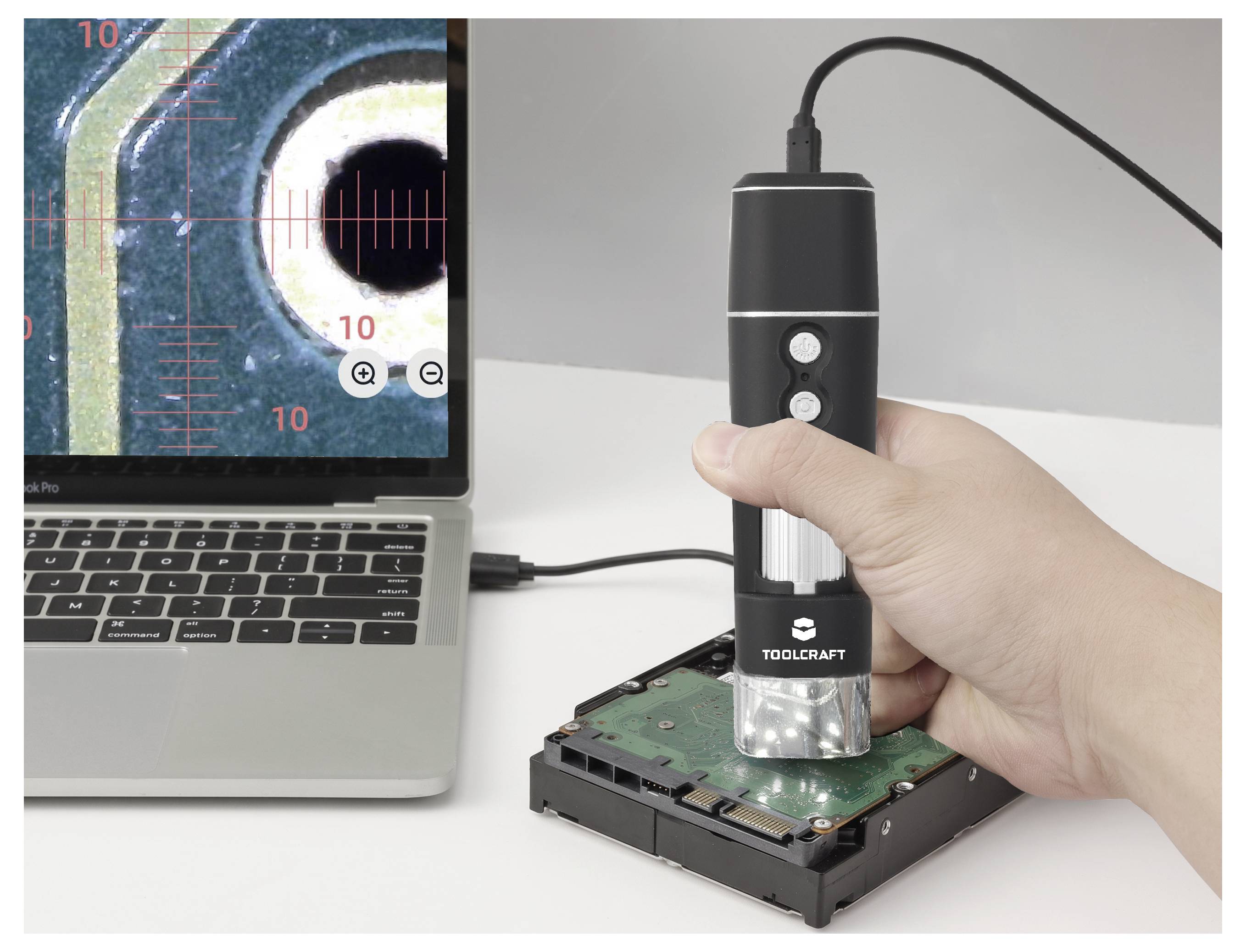

Handheld digital microscope inspecting a hard drive circuit board beside a laptop displaying a magnified view.

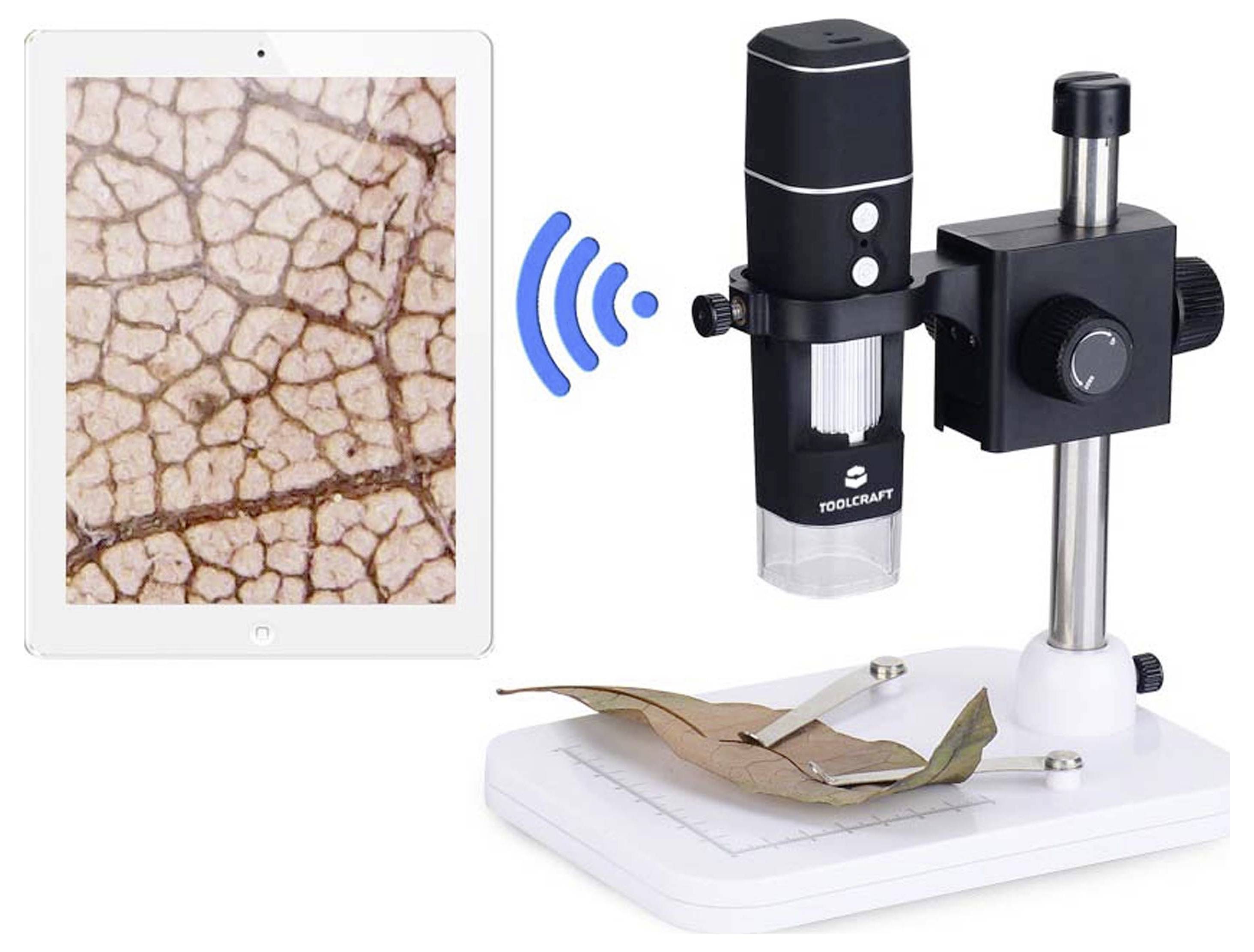

Tablet displays a magnified leaf texture while a wireless digital microscope on a stand examines a leaf sample on its base.

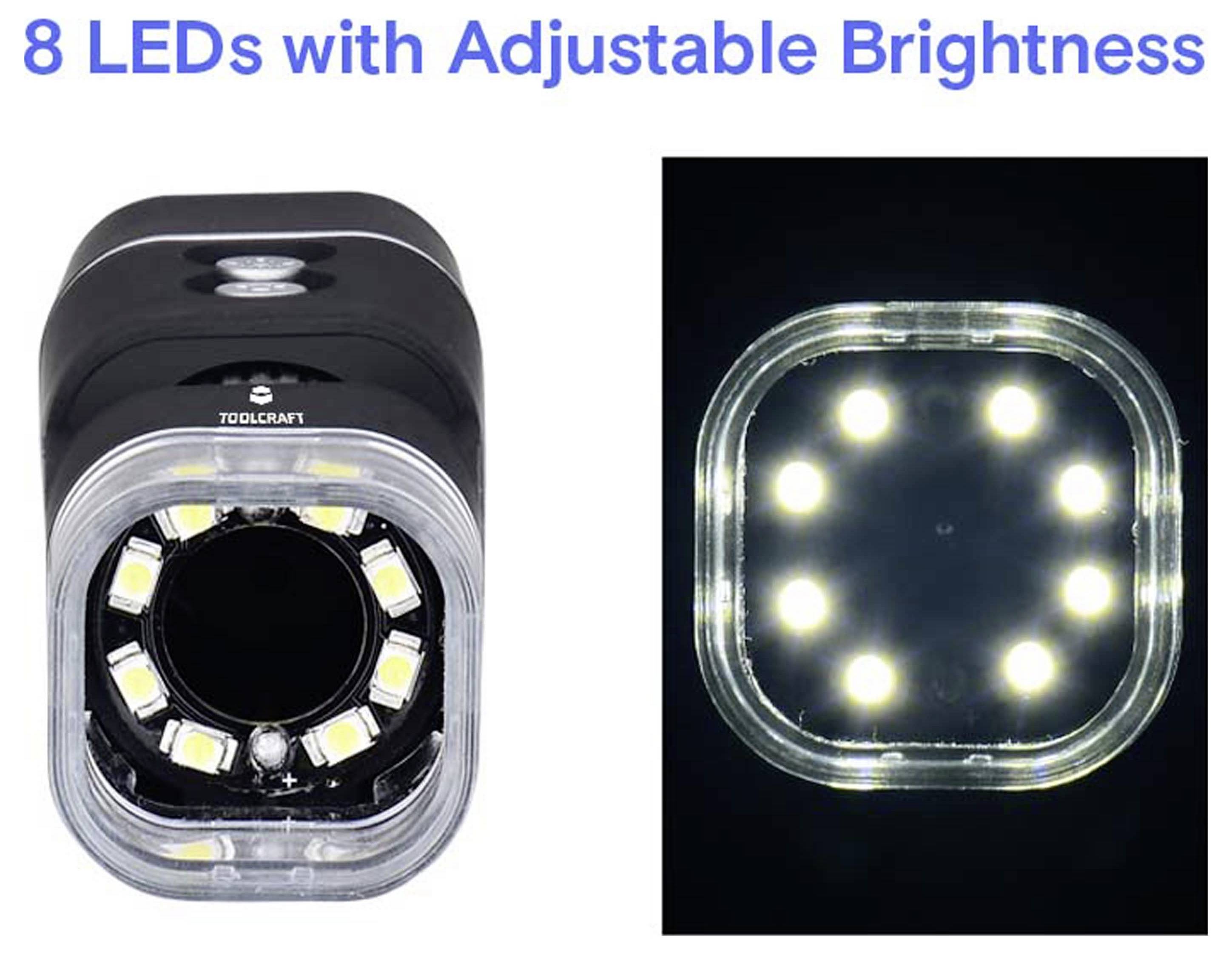

Product image of a black LED light with '8 LEDs with Adjustable Brightness' shown off and lit, highlighting the eight lights around a central opening.

Microscope feature infographic showing lifting design, 1080P HD video/1920 x 1080 photo, adjustable focus, and 50X–1000X magnification.

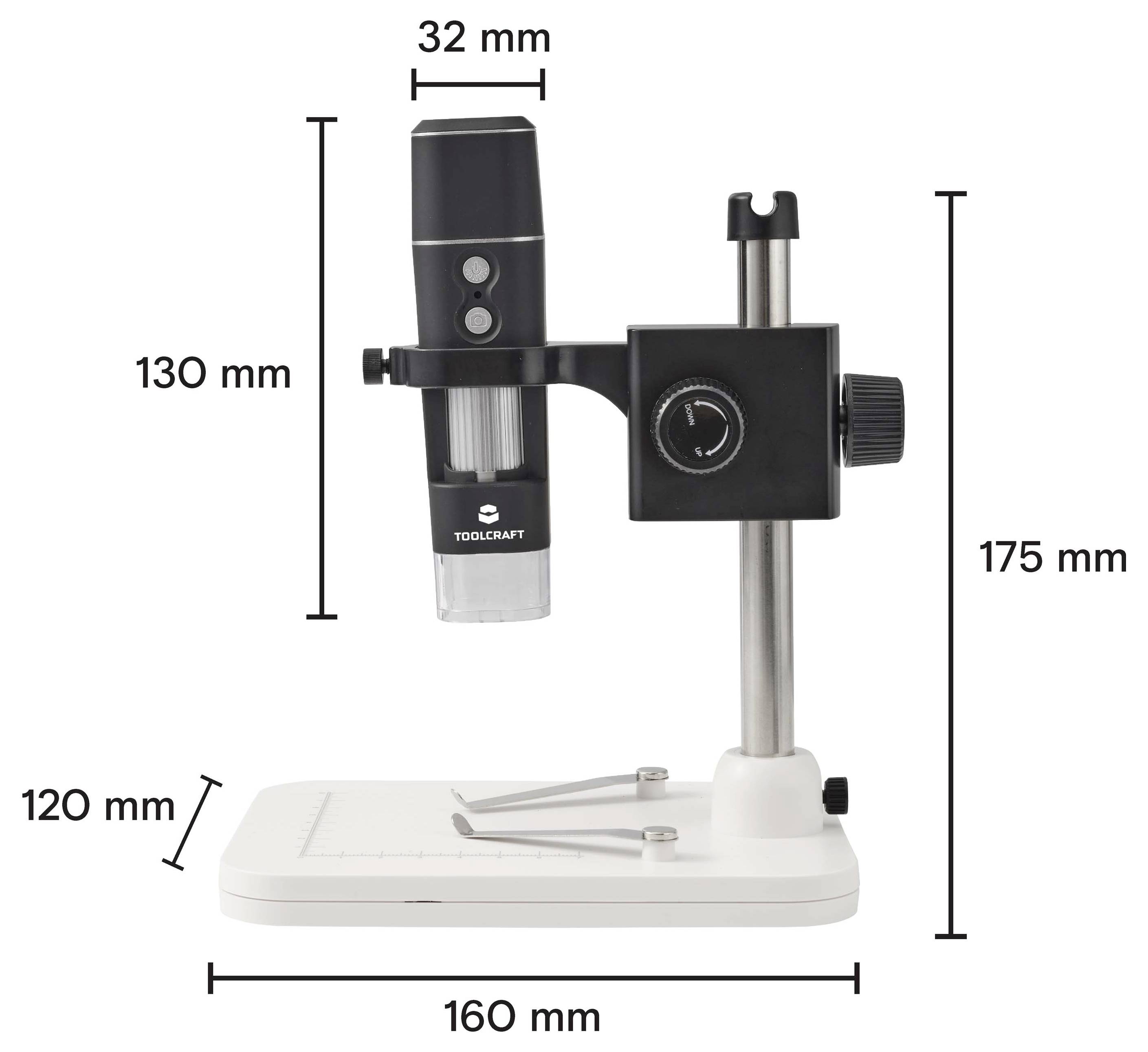

Dimensioned microscope stand with phone holder: 175 mm tall, 160 mm wide base, 130 mm device height, 120 mm base depth, 32 mm top width.

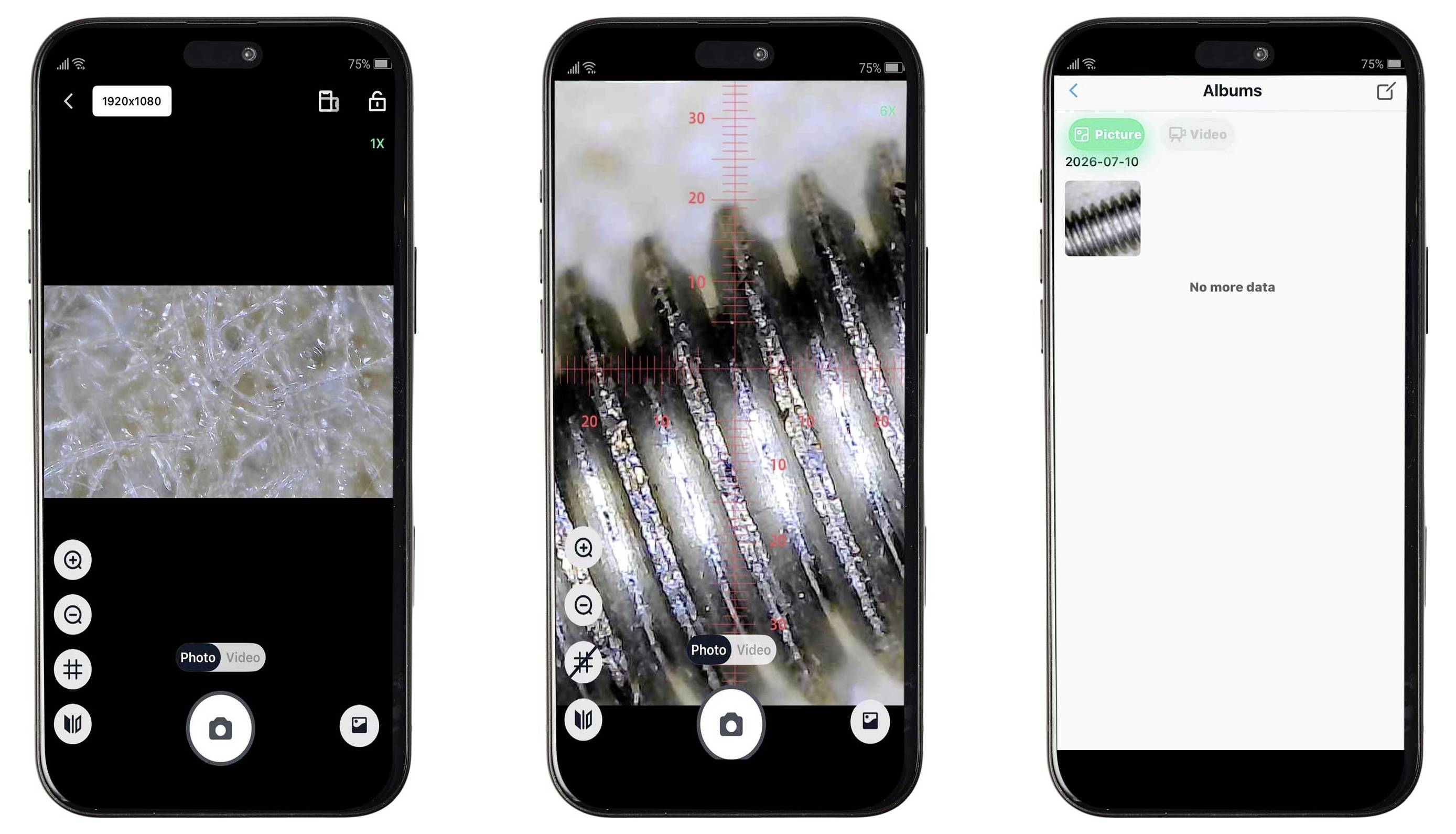

Three smartphone screens from a magnifier app show a live close-up view, zoomed detail view, and the Albums page with one saved image thumbnail.

1/11

Our service for you

Dispatches on Fri, 30 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 43.69 / piece)

€ 43.69

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Seamless wireless streaming to iOS and Android devices
Magnification: 50x to 1000x
8 LEDs with adjustable brightness
1080p HD video resolution
1920 x 1080 photo resolution

Technical specifications

Product type: Digital microscope

Digital zoom (max.): 100 x

Pic resolution: 1920 x 1080 Pixel

Video resolution: 1080 x 1920 Pixel

Resolution: 1080 p

Dim: (L x W) 160 mm x 120 mm

Length: 160 mm

Width: 120 mm

Weight: 270 g

Type: TO-11304645

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3768215 TOOLCRAFT Digital microscope 1080 p Digital zoom (max.): 100 x

Description

Features

Professional observation stand
Built-in rechargeable Li-ion battery

Scope of delivery

Microscope
Microscope stand
Base plate
Clamp
USB-C® cable
Manual

Hints

Power supply: 800 mAh built-in Li-ion battery

Charging requirements: 5 V, 1 A

Operating current: ~260 mA

Wi-Fi operating environment: Android 4.0 or higher, iOS 8.0 or higher

Wi-Fi equipment requirements: Supports 2.4 GHz (802.11b/g/n) wireless data transmission

USB operating environment: Windows XP, Win7, Win8.1, Win10, Mac OS X 10.5 or higher (supports USB Type-C® / UVC protocol devices)

Operating temperature: 0 to 40 °C

Storage temperature: -20 to 60 °C

Operating humidity: 30-60 % RH

Focus mode and range: Manual, 0-40 mm

Sensor size: 1/4""

Signal-to-noise ratio: 37 dB

Sensitivity: 4300 mV/lux-sec

Video format: AVI

Video resolution: 640x360, 1280x720, 1920x1080

Picture format: JPG

Picture size: 640x360, 1280x720, 1920x1080

Operating time: Approx. 90 minutes on a full charge

System requirements

App: DLscope
