TOOLCRAFT DIN EN 862 TO-7167606 Digital caliper 300 mm
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Total (€ 39.49 / piece)
€
Highlights & Details

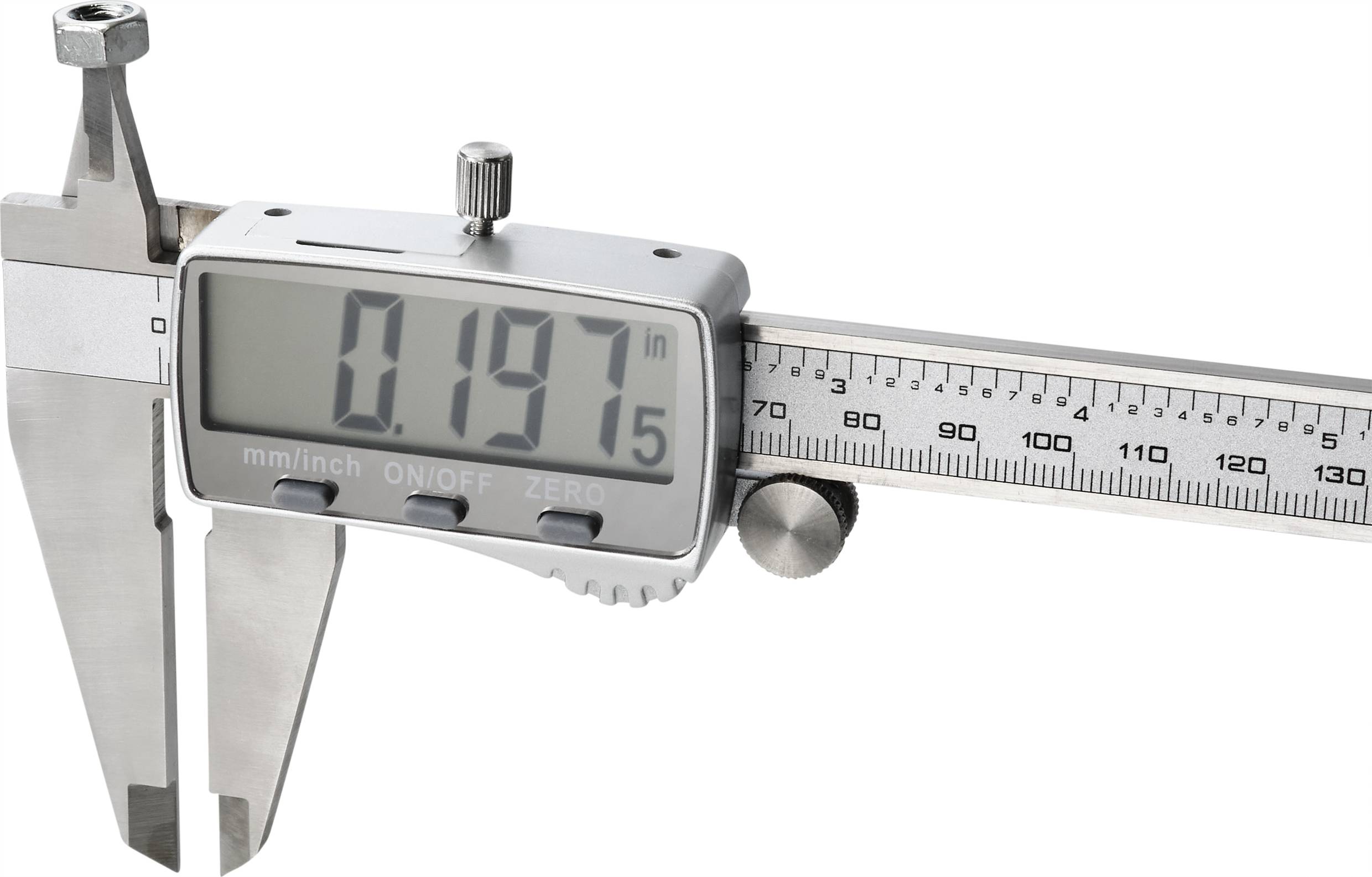

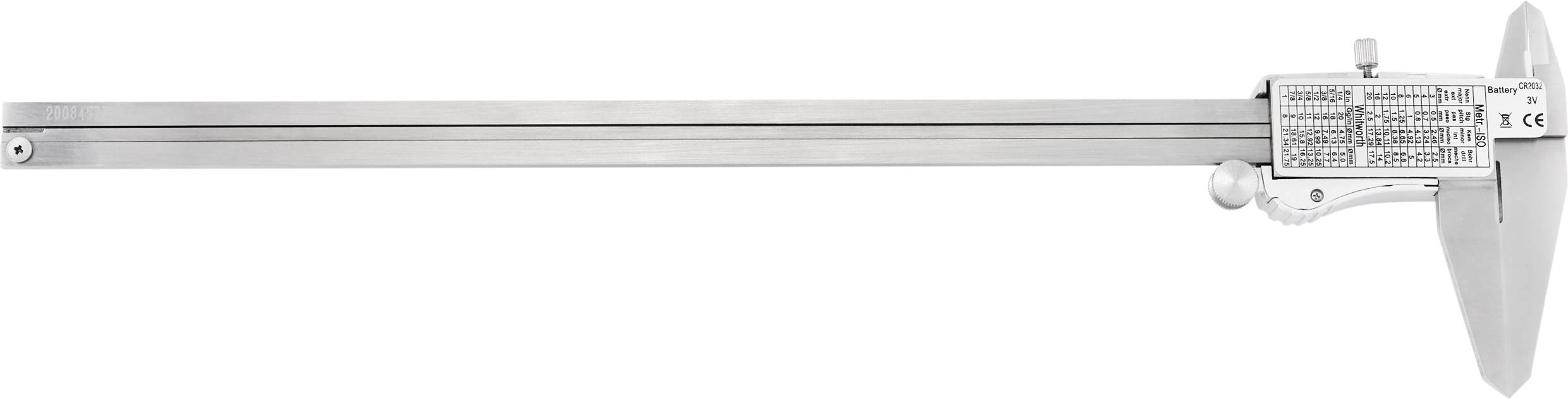

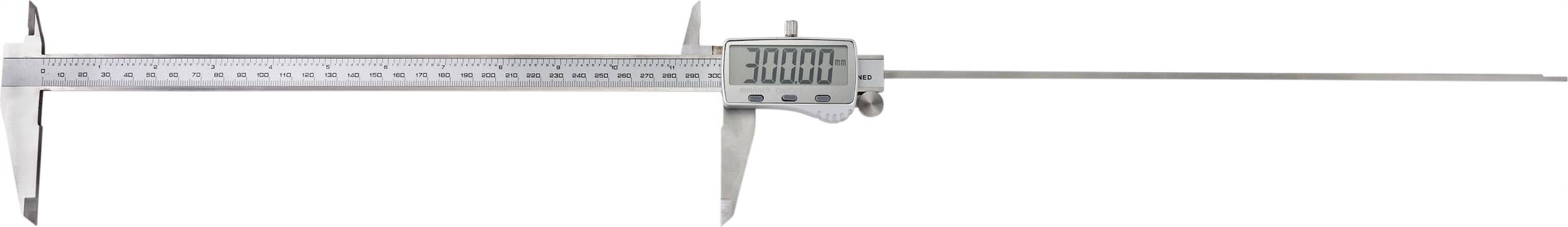

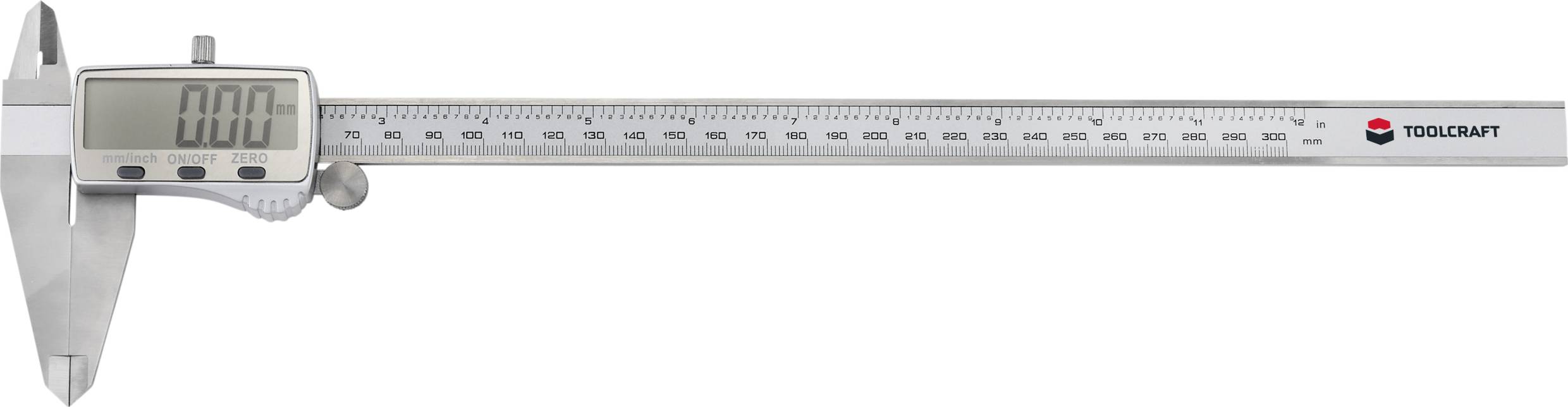

TOOLCRAFT 300 mm Digital caliper
- Digital sliding caliper enables fast and precise detection of internal/external diameters and distances.
- - 0-300 mm measuring range
- - Simply clamp the desired area and the distance will be displayed on the digital display.
Technical specifications
- - Range:0-300mm/6″
- - Resolution:0.01mm/0.0005"
- - accuracy: +-0.04mm
- - Battery Life: 8- 10 month
- Product type
Digital caliper
- Reading range (max.)
300 mm
- Reading
0.01 mm
- Accuracy
0.04 mm
- Length
390 mm
- Power supply (details)
3 V
- DIN standard
DIN 862
- Material
Stainless steel
Plastic
- Weight
0.270 kg
- Dim
Manufacturer's standards (no certificate)
- Type
DIN EN 862
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2389202 TOOLCRAFT DIN EN 862 TO-7167606 Digital caliper 300 mm
Warranty Terms
Warranty Terms 2389202 TOOLCRAFT DIN EN 862 TO-7167606 Digital caliper 300 mm
Description

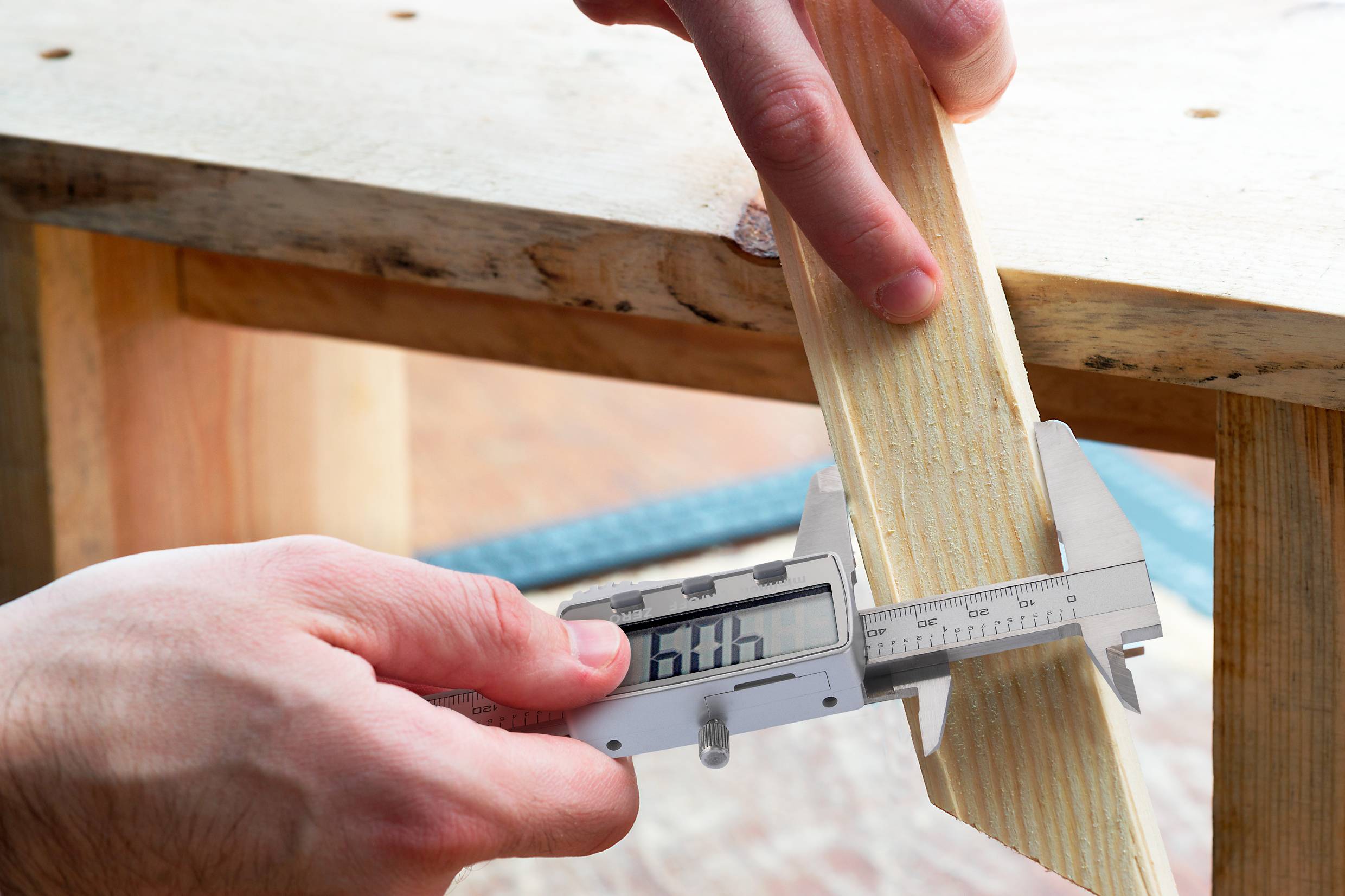

The TOOLCRAFT digital caliper allows fast and precise determination of inside, outside diameters and distances. The sliding caliper has a measuring span of 0-300 mm with an accuracy of 0.04 mm. Simply clamp the desired range and the distance is shown on the digital display.
This text is machine translated.
This text is machine translated.
Features
- Material: Stainless hardened steel (4Cr13) and plastic housing
- Functions: Manual/automatic power off, zero setting at any position.

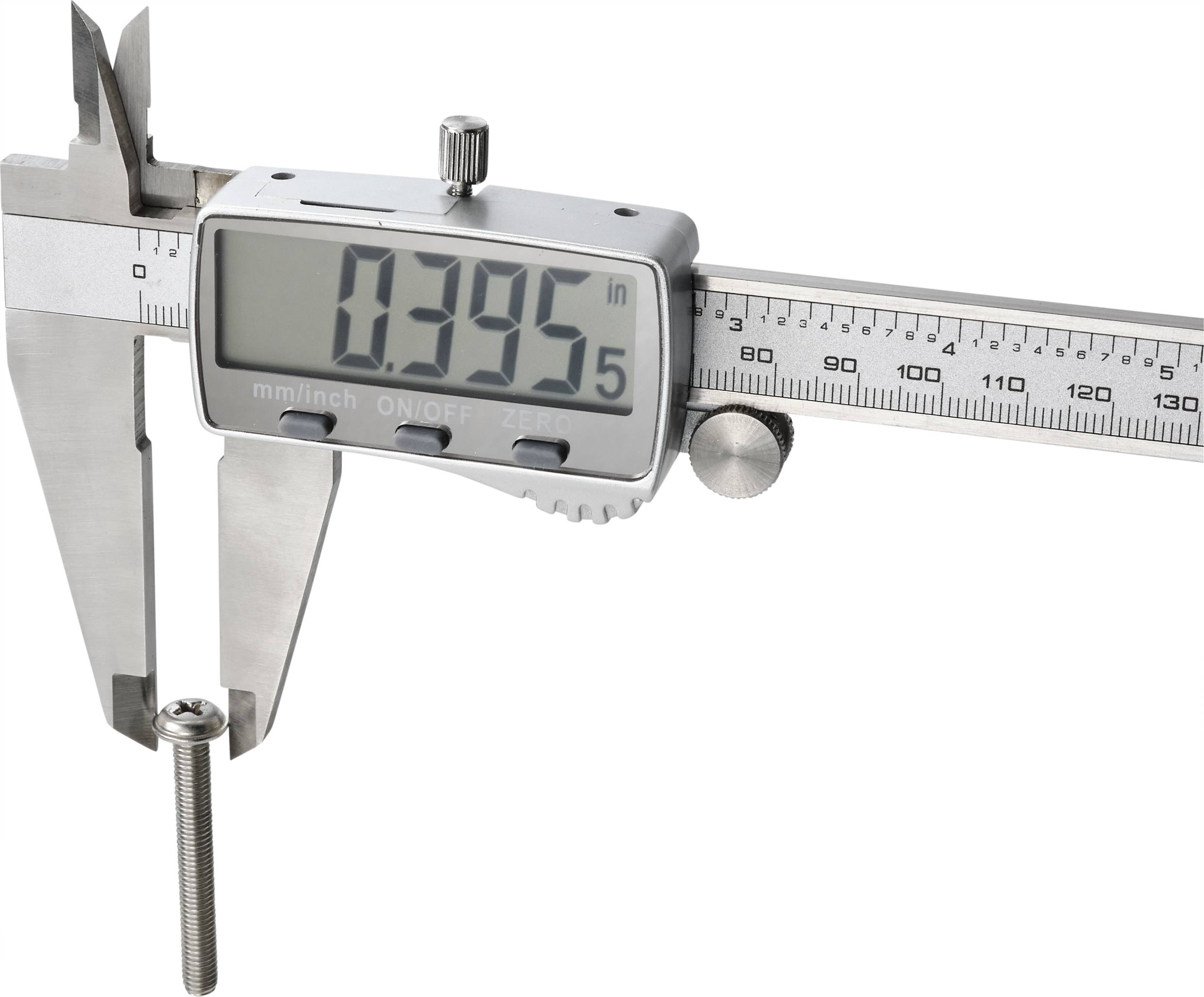

- Takes exterior, interior, depth and step measurements
- Includes x R2032 3 V battery
- Display size: 57.3 x 28.1 mm
- Range: 0-300 mm/6″
- Resolution: 0.01 mm/0.0005"
- Accuracy: +-0.04 mm
- Battery life: 8-10 months
Scope of delivery
- Dimensions : 235 x 77 x 18.6 mm (L x W x H)
- - Weight: 0.175 kg
- - Working temperature & humidity: 0+40 °C, <=80 %
- - Storage temperature and humidity: -20+70 °C, <=80 %
