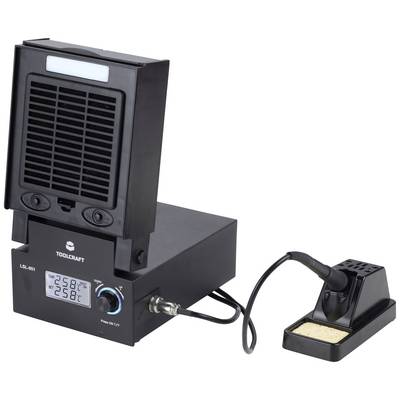

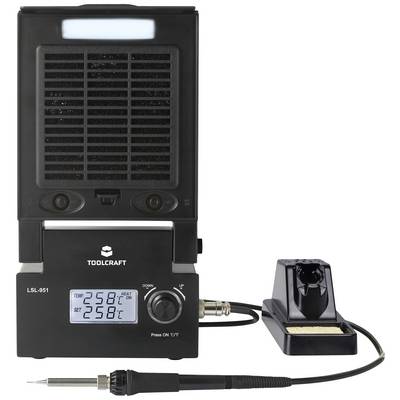

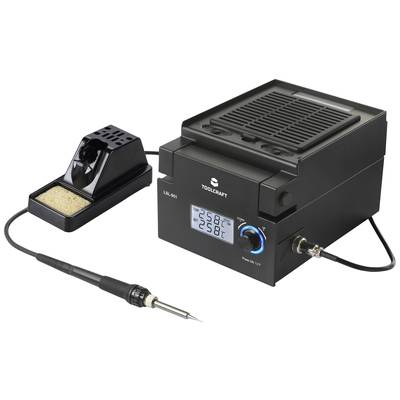

Soldering station with LED and fume extraction
- Temperature controlled soldering station with rapid heating
- Digital display and LED lighting
- With 23 W fume extraction
Technical specifications
- Suction flow rate: 1 m3/min (max.)
- Product type
Soldering station
- Max. power
80 W
- Power supply (LOV)
via base station
- Max. temperature
480 °C
- Display
Digital
- Dim
(L x W x H) 170 x 234 x 142 mm
- Preheat time
48 s
- Preheat time
To 400 °C.
- Operating voltage
230 V AC
- Weight
3.67 kg
- Width
234 mm
- Height
142 mm
- Length
170 mm
- Min. temperature
160 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2269448 TOOLCRAFT LSL-951 Soldering station with LED and fume extraction Digital 80 W 160 - 480 °C
User & Safety Instructions 2269448 TOOLCRAFT LSL-951 Soldering station with LED and fume extraction Digital 80 W 160 - 480 °C
Conformity certificate
Conformity certificate 2269448 TOOLCRAFT LSL-951 Soldering station with LED and fume extraction Digital 80 W 160 - 480 °C
Warranty Terms
Warranty Terms 2269448 TOOLCRAFT LSL-951 Soldering station with LED and fume extraction Digital 80 W 160 - 480 °C
Description

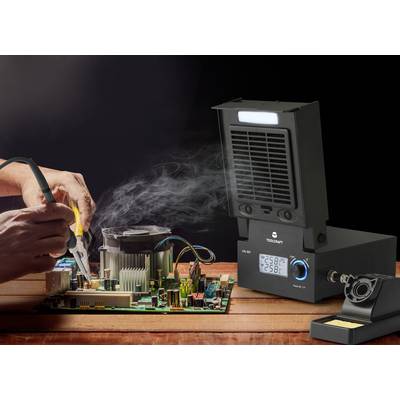

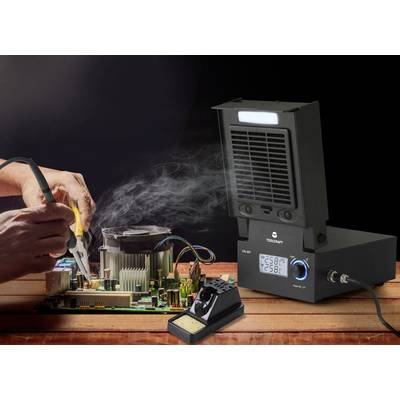

Why should you use a soldering fume extractor?
Soldering often releases additives, gases and aerosols containing rosin, which irritate the skin and airways. The solder fume extractor with activated carbon filter extracts and filters out harmful substances at source, preventing direct contact with the skin and airways and diffusion into the surrounding area.
This text is machine translated.

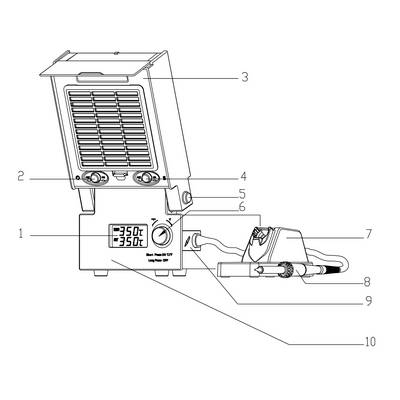

Features
- 3-in-1 soldering station with soldering iron and temperature-controllable stand
- Heats to 400 °C in 48 seconds
- PTC rapid heating element
- Backlit display with adjustable colour
- Temperature control knob
- Fume extractor with control knob for adjusting angle
- LED light indicates whether air is being emitted during the soldering process
- Pull-down lid to reduce brightness of LED

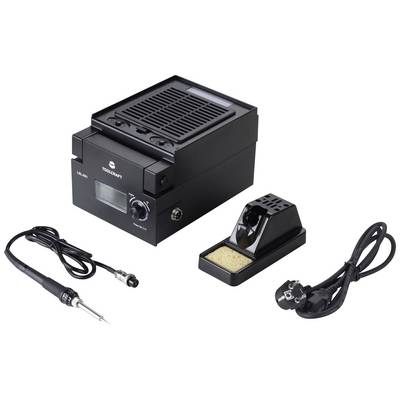

Scope of delivery
- Soldering station
- Stand
- Soldering iron
- Instruction manual
