TOOLCRAFT TO-10197438 Sand filter pump 13000 l/h 12 m
EAN:
Part number:
Item no:
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Highlights & Details

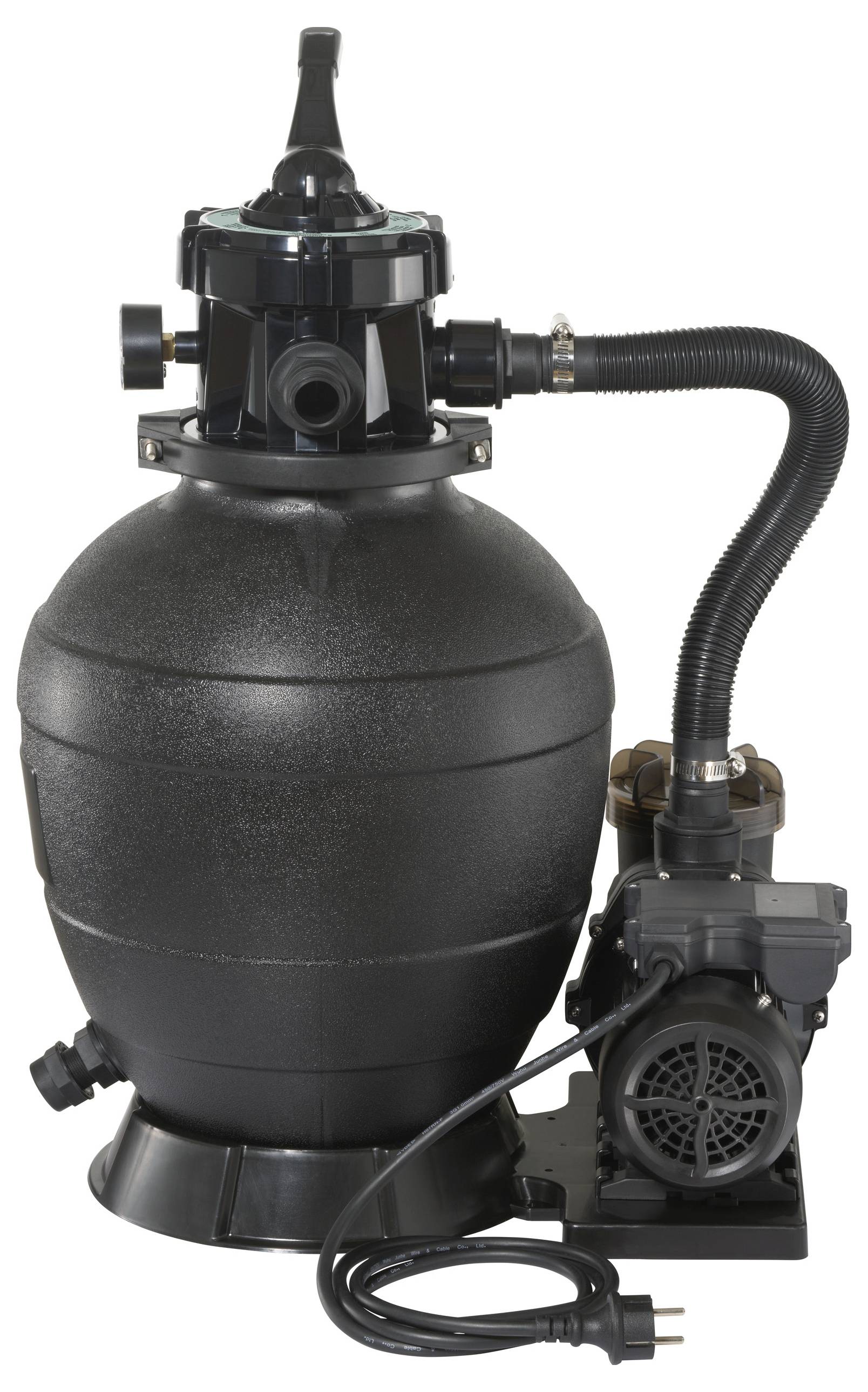

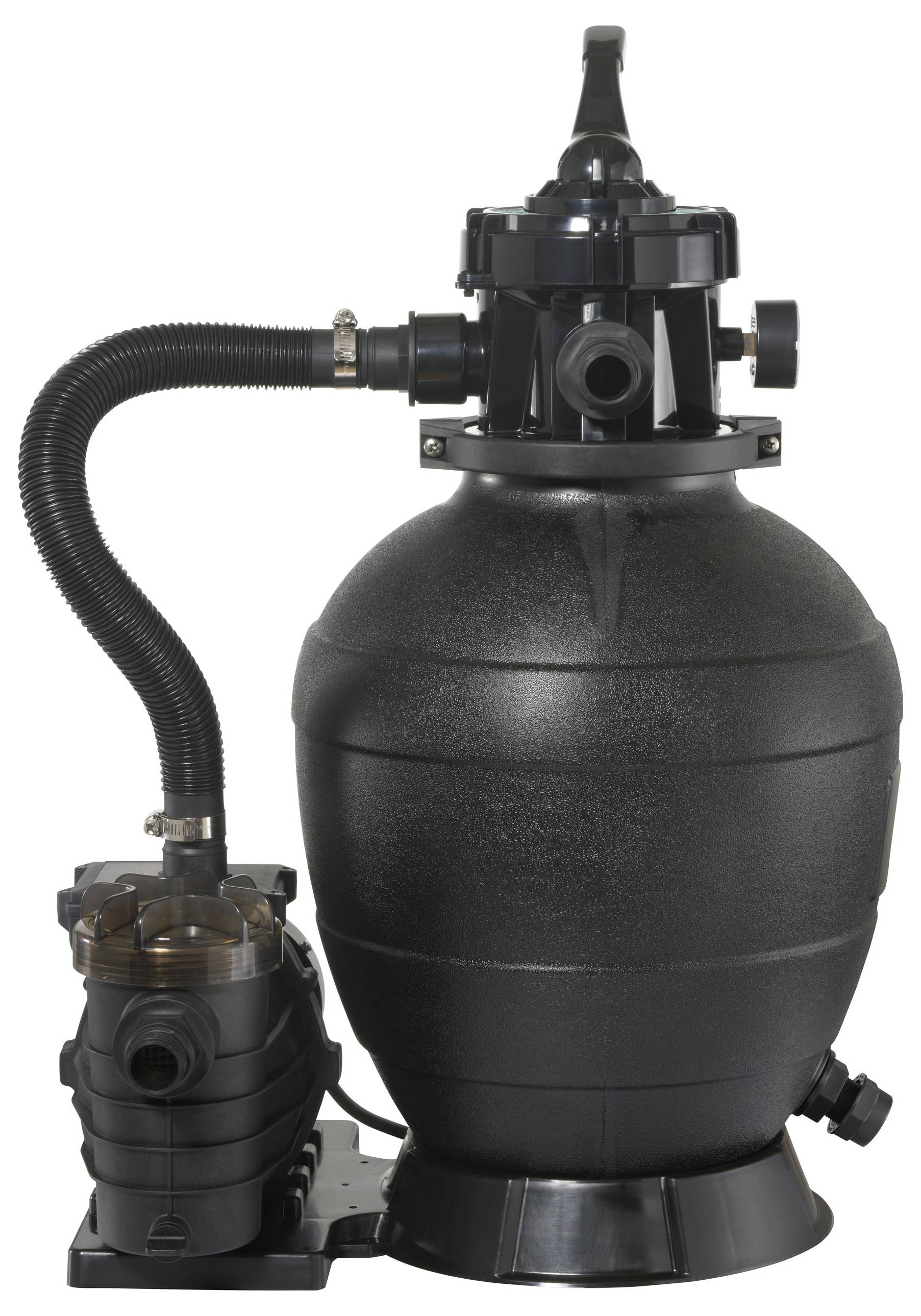

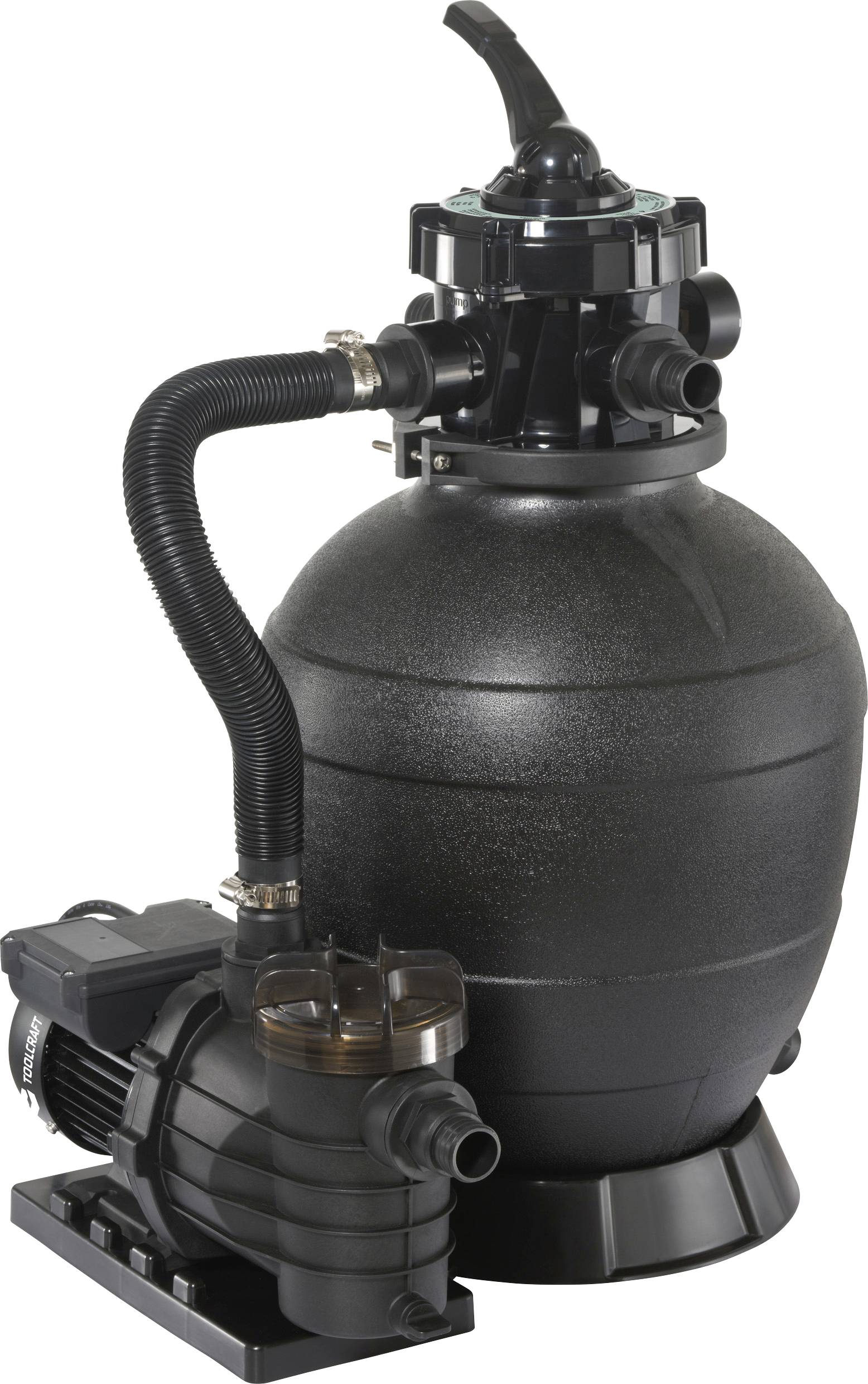

TOOLCRAFT 550W sand filter system, 13" tank, for pool, 13000 l/h 12 m
- 13L (13") tank
- Flow rate: max. 13000 l/h
- 7-way valve
- Suitable for pools up to 65 m³
- With a large integrated strainer basket (pre-filter)
- For clear water with particles up to 2.5 mm grain size

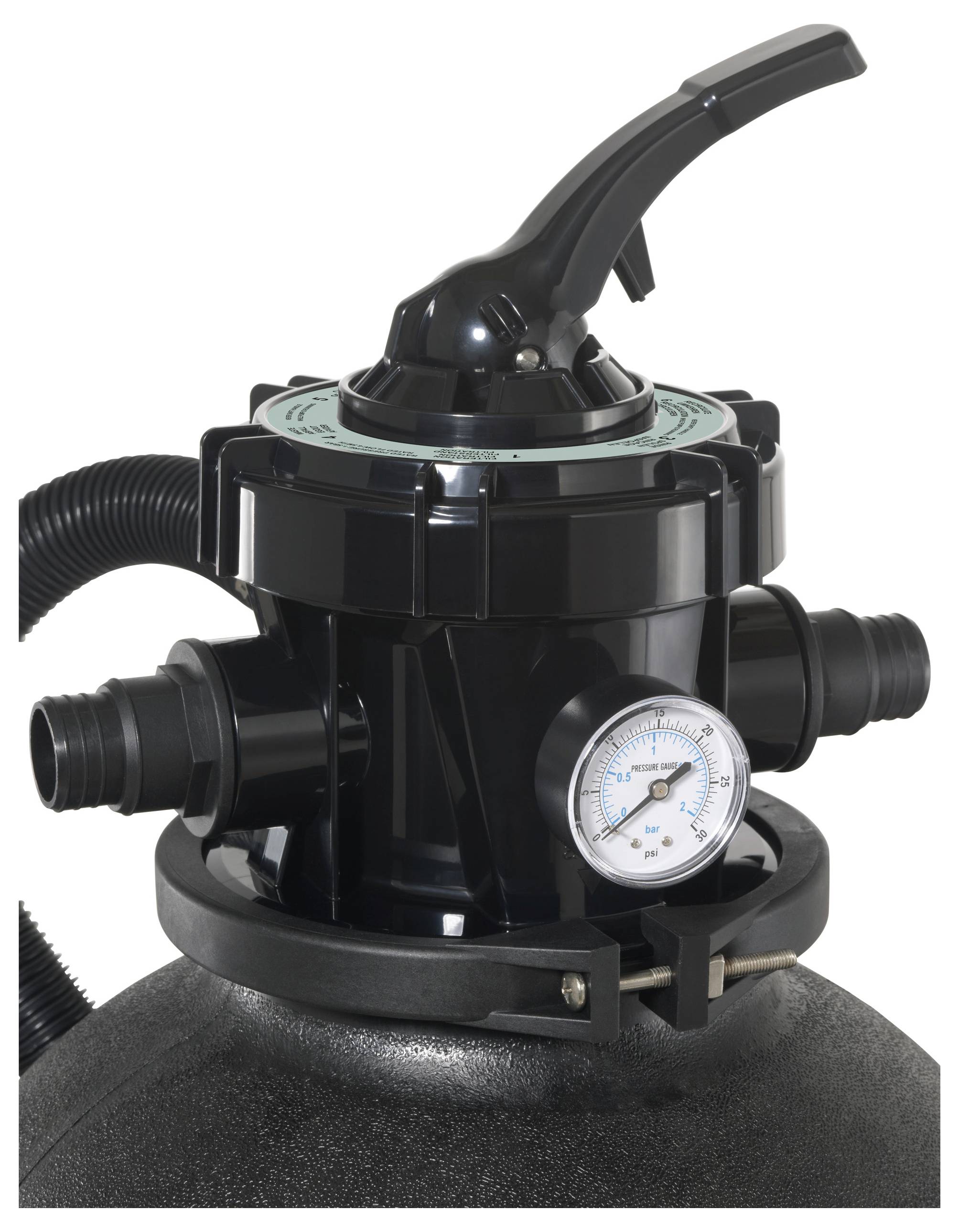

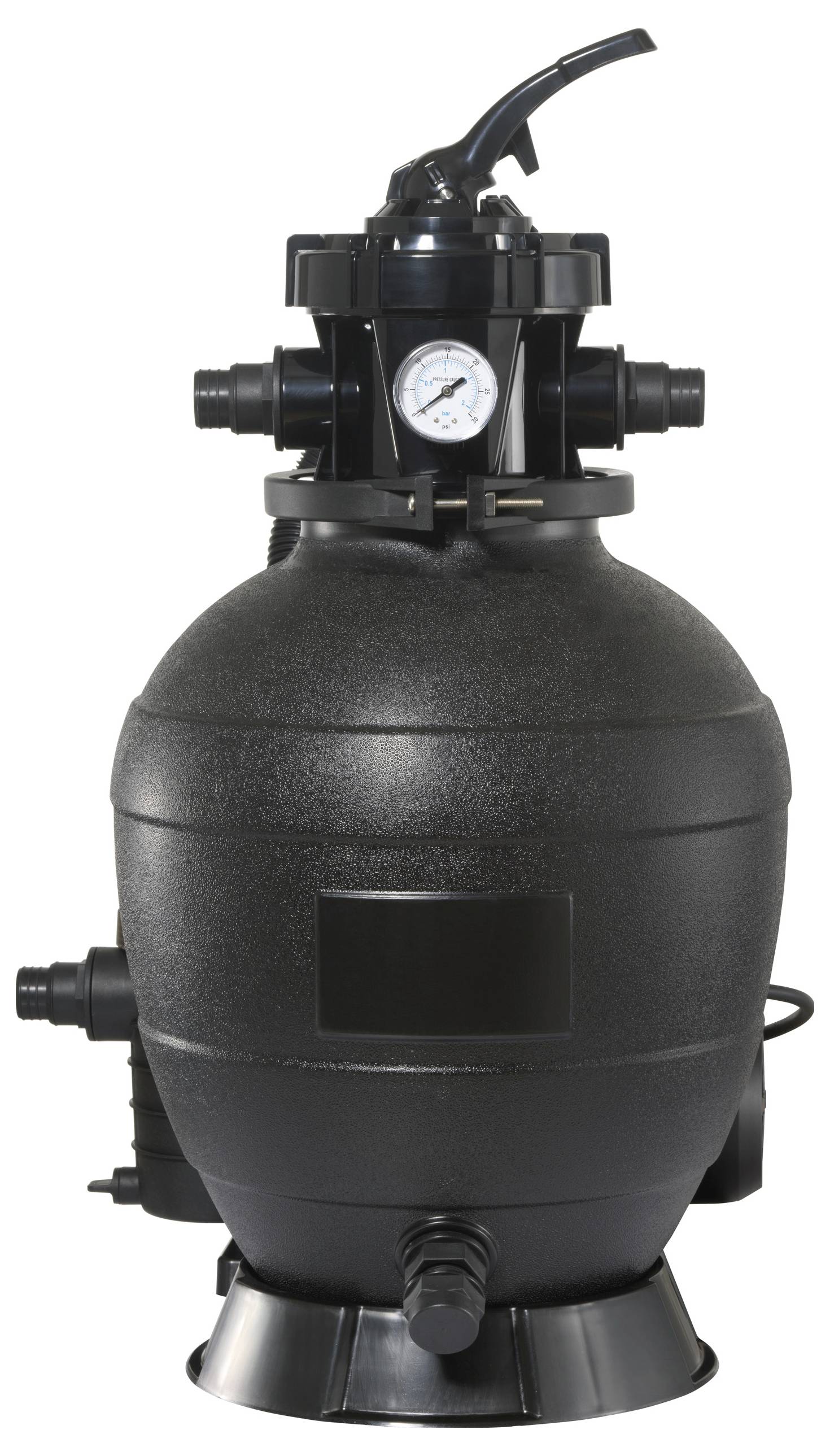

- Integrated manometer (pressure gauge) for real-time system diagnostics.
- Cost-effective and easy-to-maintain system
Technical specifications
- Product type
Sand filter pump
- Operating voltage
220 V AC
230 V AC
240 V AC
- Max. feed rate
13000 l/h
- Max. delivery head
12 m
- Hose connector
32 mm
38 mm
- Power consumption (P1)
550 W
IPX5
- Length
50.6 cm
- Width
59.1 cm
- Height
40.6 cm
- Dim
(L x W x H) 50.6 x 59.1 x 40.6 cm
- Weight
5.8 kg
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3399146 TOOLCRAFT TO-10197438 Sand filter pump 13000 l/h 12 m
Warranty Terms
Warranty Terms 3399146 TOOLCRAFT TO-10197438 Sand filter pump 13000 l/h 12 m
Description
Features
- Delivery height: max. 12 m
- IPX5

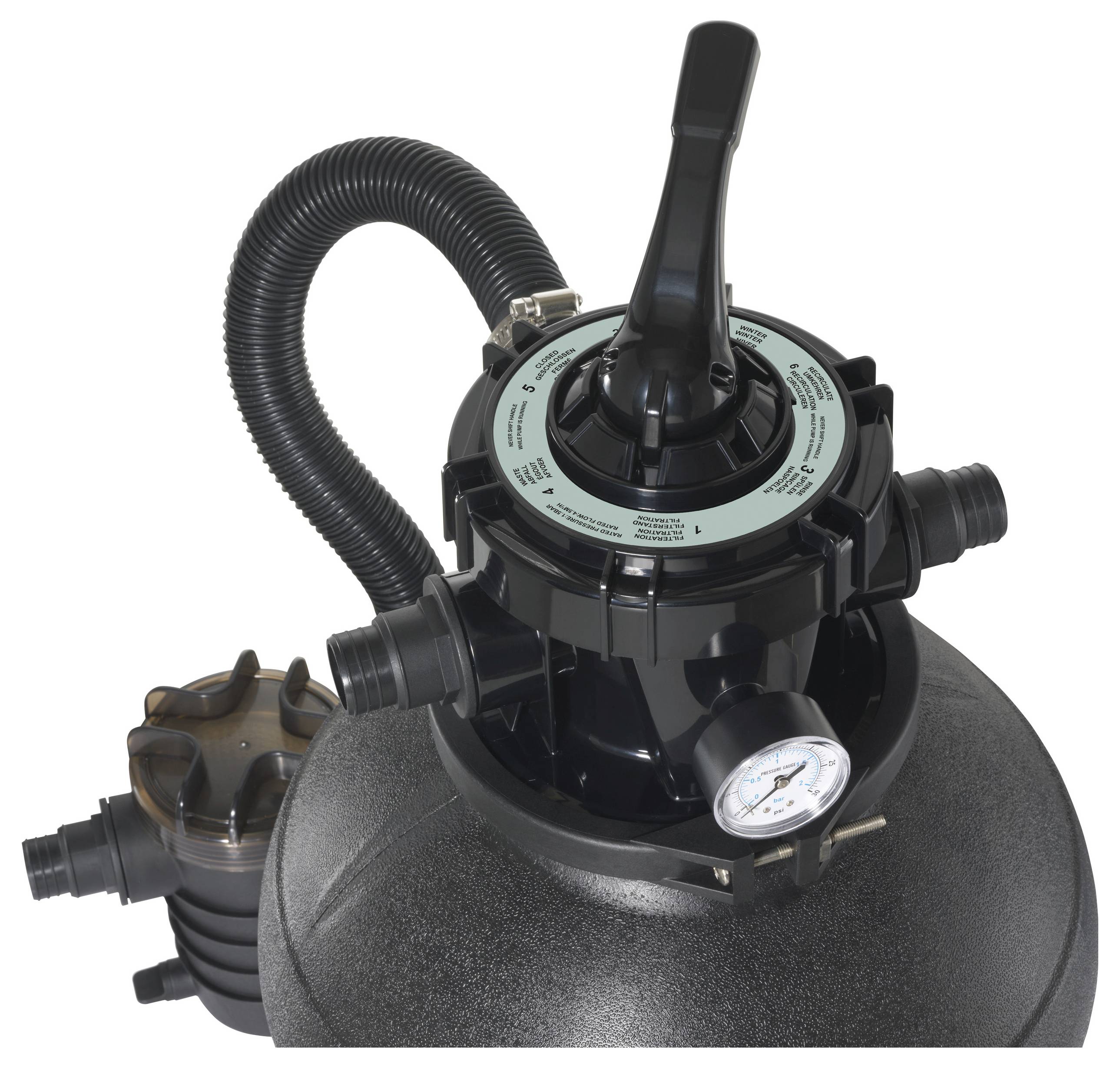

- Functions of the 7-way valve: Filter, Backwash, Rinse, Waste , Recirculate, Closed, Winter

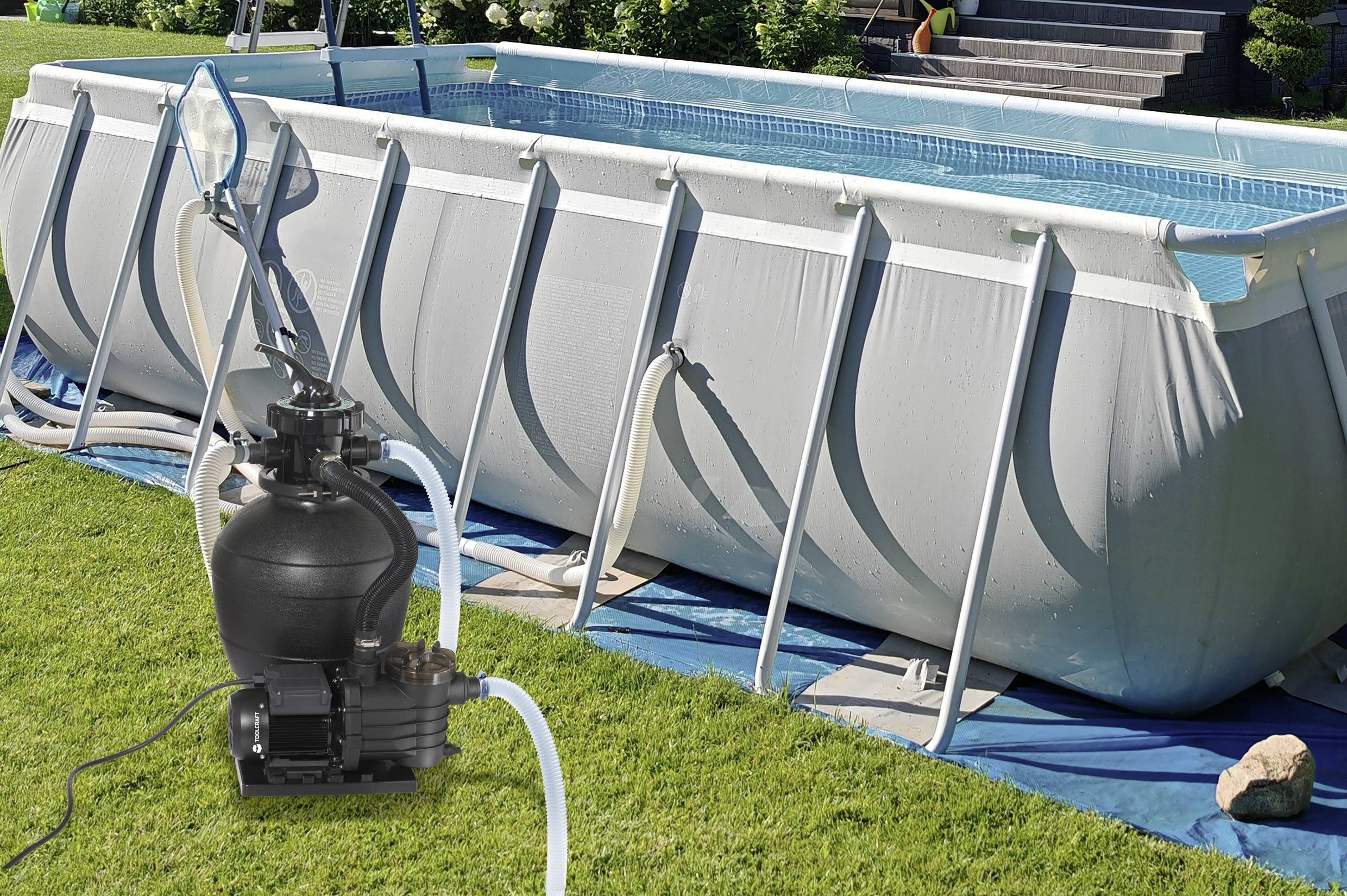

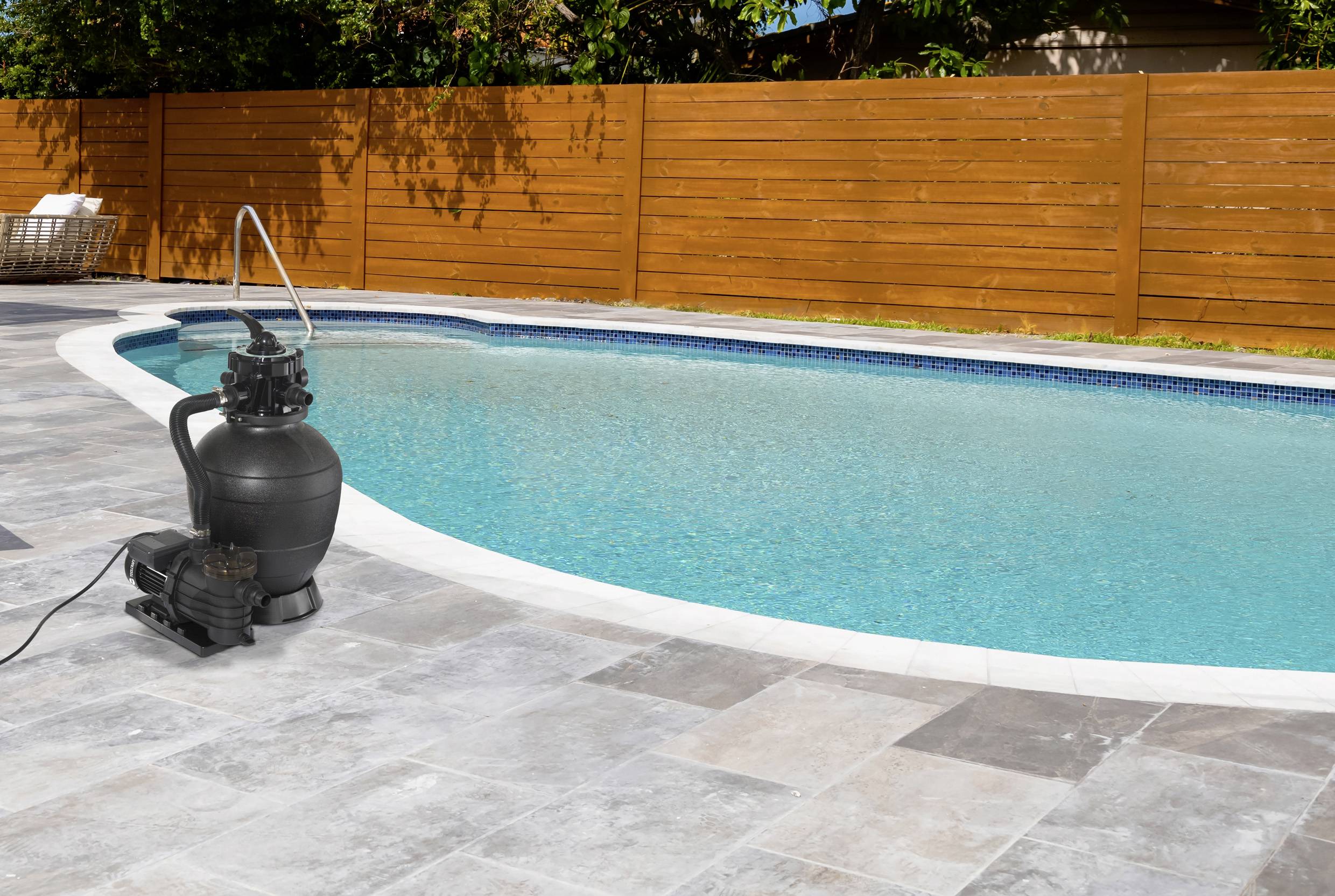

- Versatile Application: Suitable for both standard swimming pools and garden ponds.
Scope of delivery
- Pump
- Filter tank
- Filter assembly (drain, 2x large gasket, small gasket)
- Valve (with O-ring installed)
- Flange clamp (2x pieces, 2x bolts with square nut)
- Base
- Pressure gauge
- M40 x 1.5 mm (G1-1/2") valve port plug with O-ring
- Pressure hose 32 mm (1-1/4”), 45 cm
- 6x Hose adapter O-ring
- 5x Hose adaptor
- 2x Hose clamps
- Funnel
- Operating instructions
