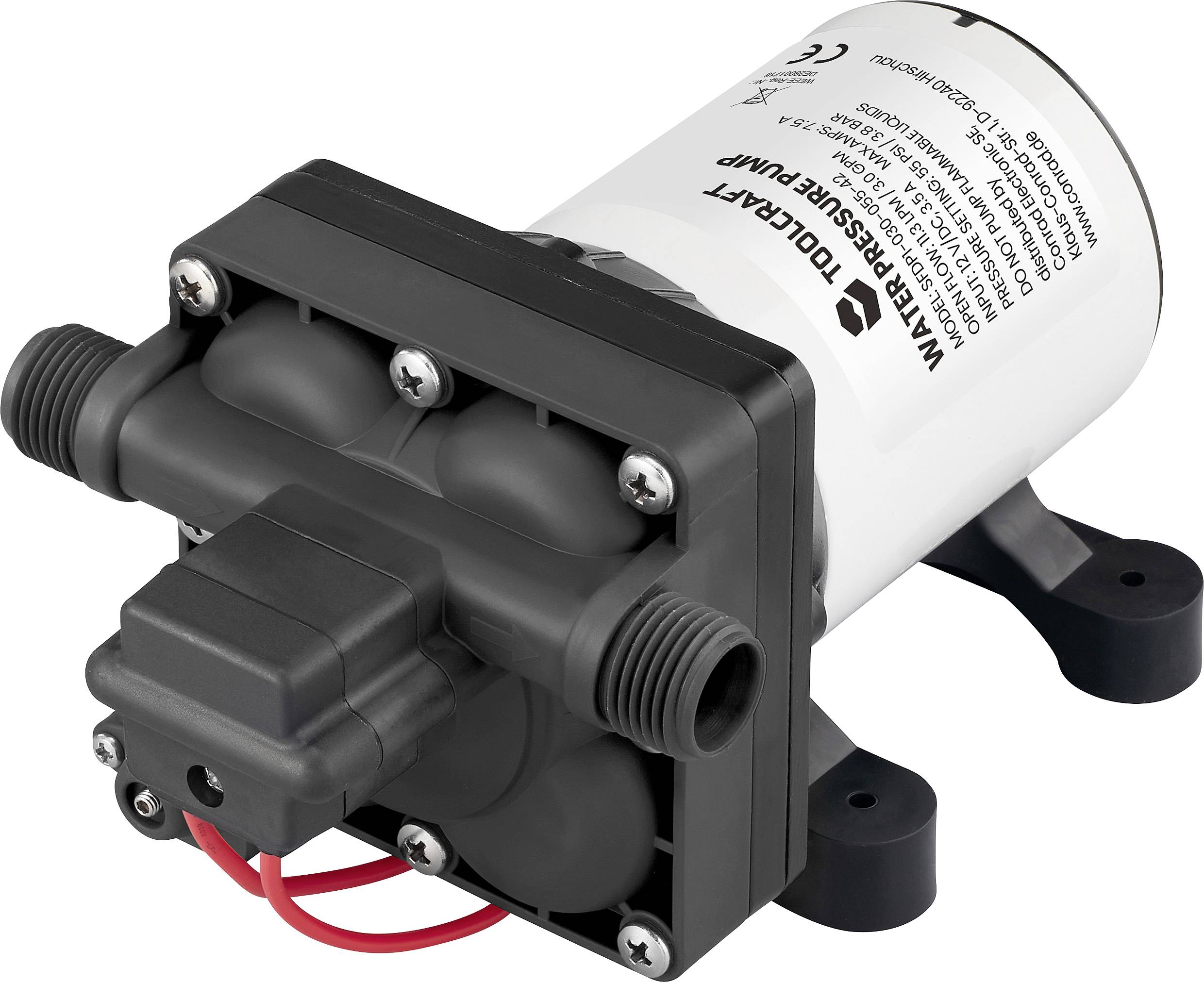

A compact black and white water pressure pump with a cylindrical body, mounting bracket, and red wire connection.

A compact black and white water pressure pump with a cylindrical body, mounting bracket, and red wire connection.

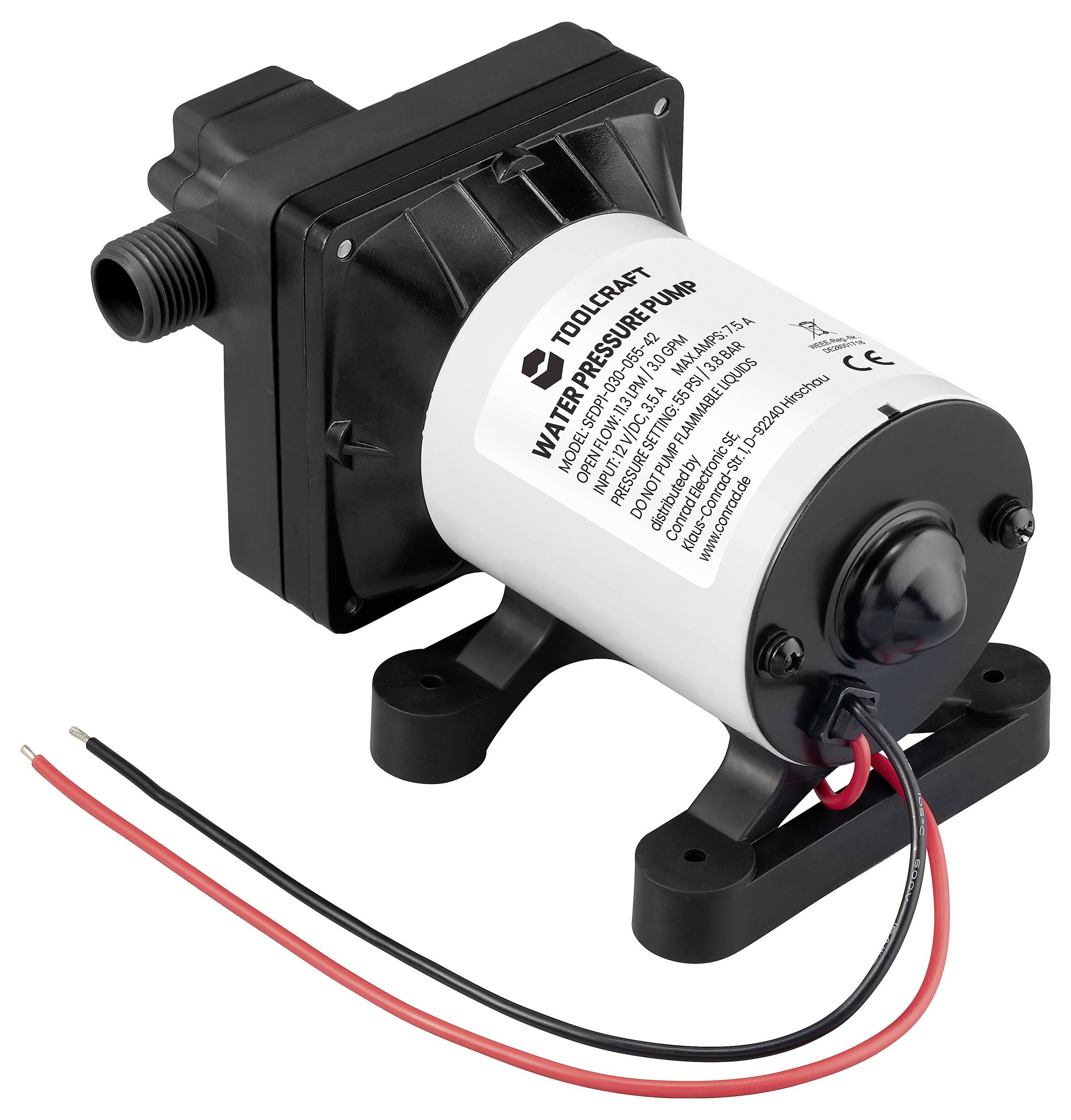

A compact Toolcraft water pressure pump with black and white housing, labeled details, and two exposed red and black wires for connections.

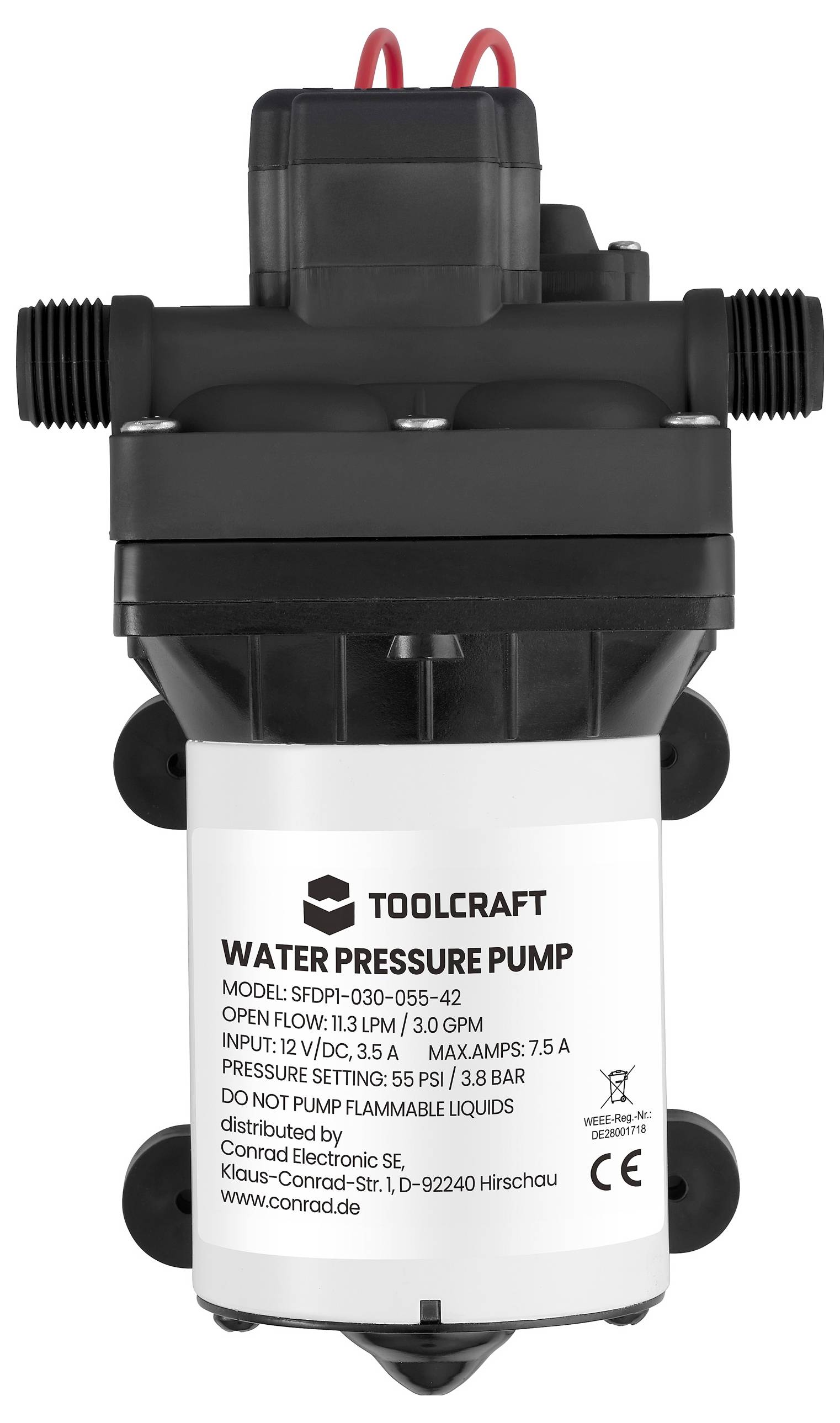

'TOOLCRAFT Water Pressure Pump, Model: 57DP-030-053-42, Open Flow: 11.3 LPM, Pressure Setting: 55 PSI / 3.8 Bar, Max Amps: 7.5A.'

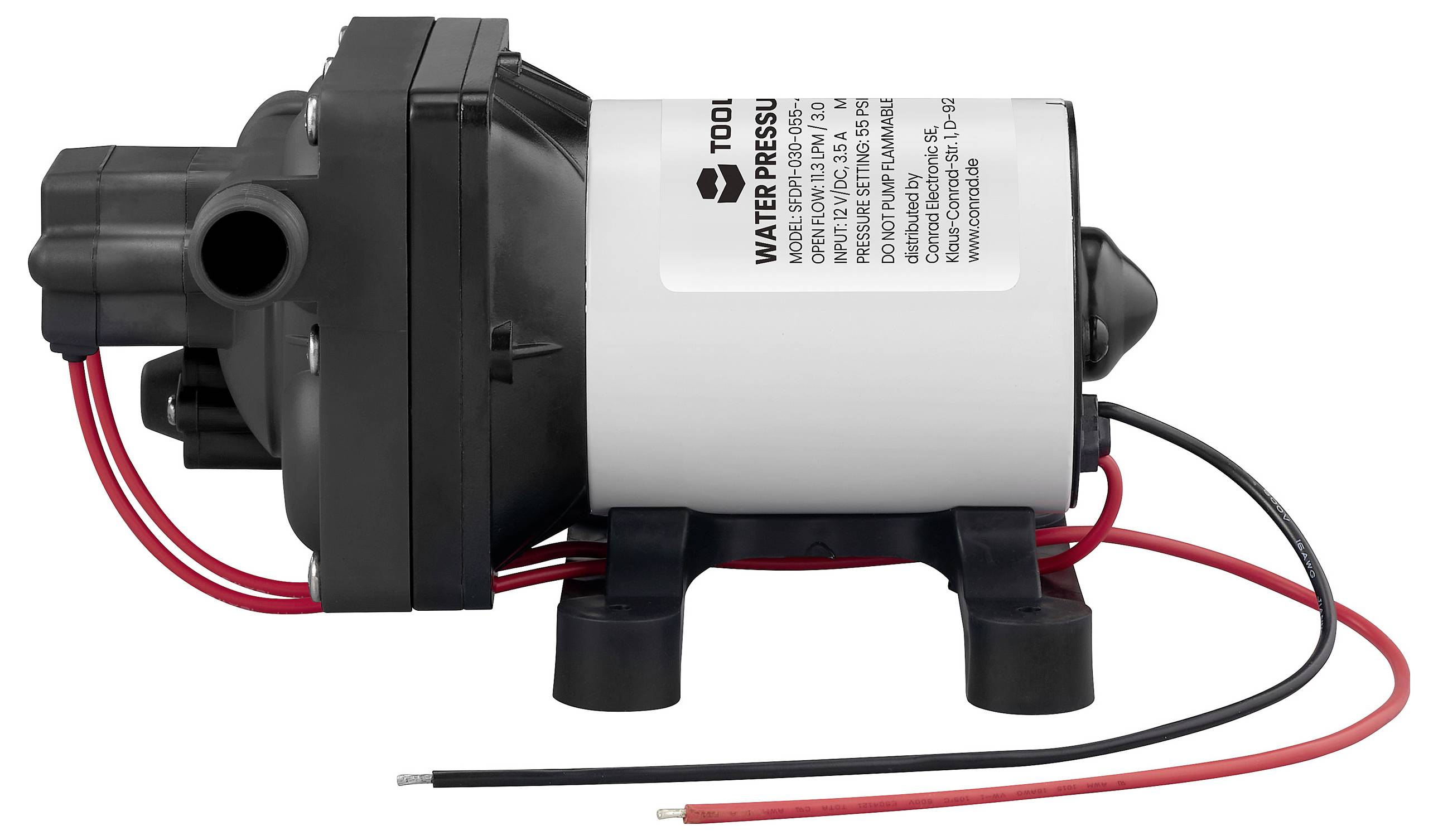

A water pressure pump with black and red wires, labeled 'Water Pressure Pump' and features specifications on its side.

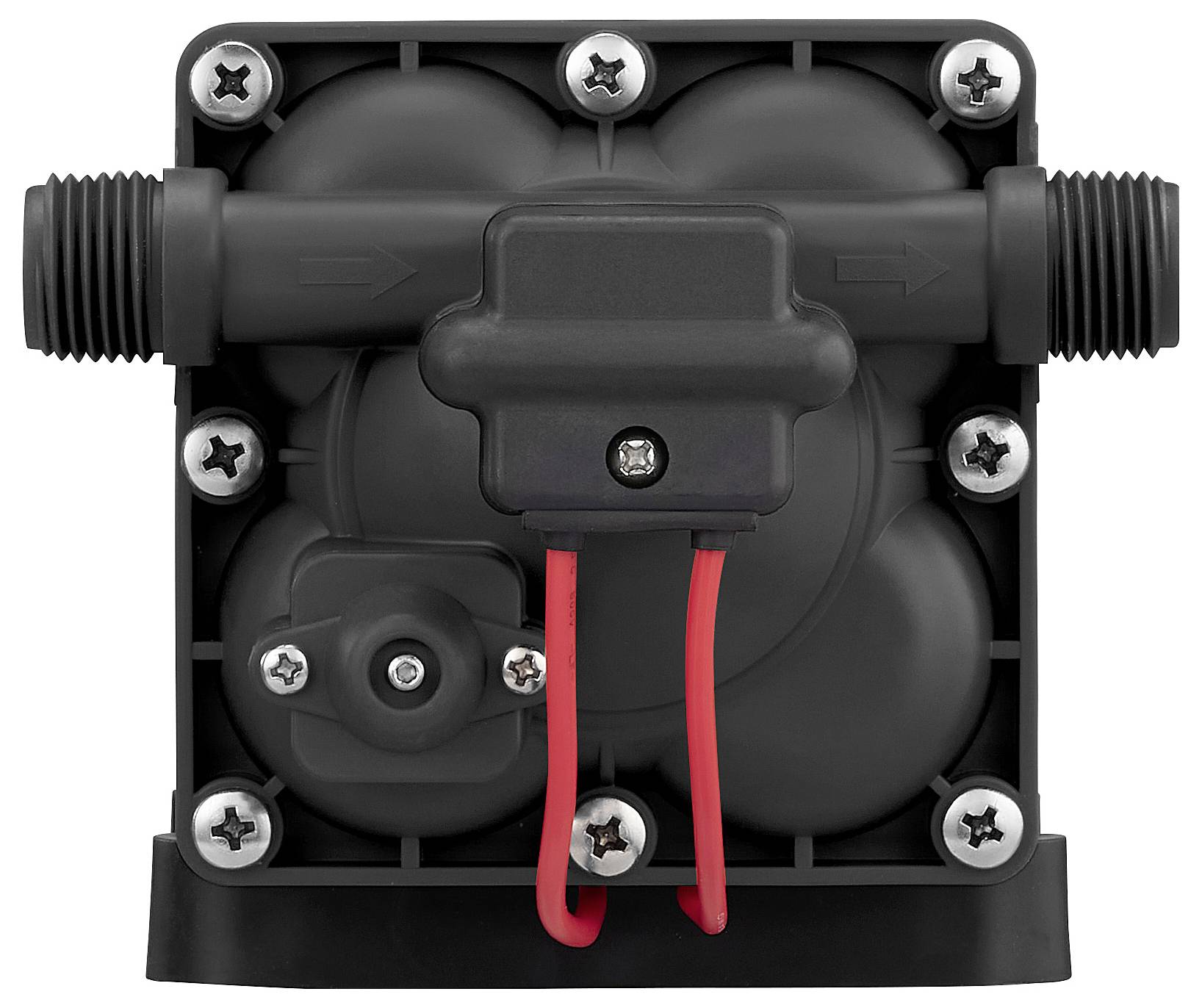

A black and gray diaphragm pump with visible red wires and multiple screws on a flat surface, showing the front view of the pump unit.

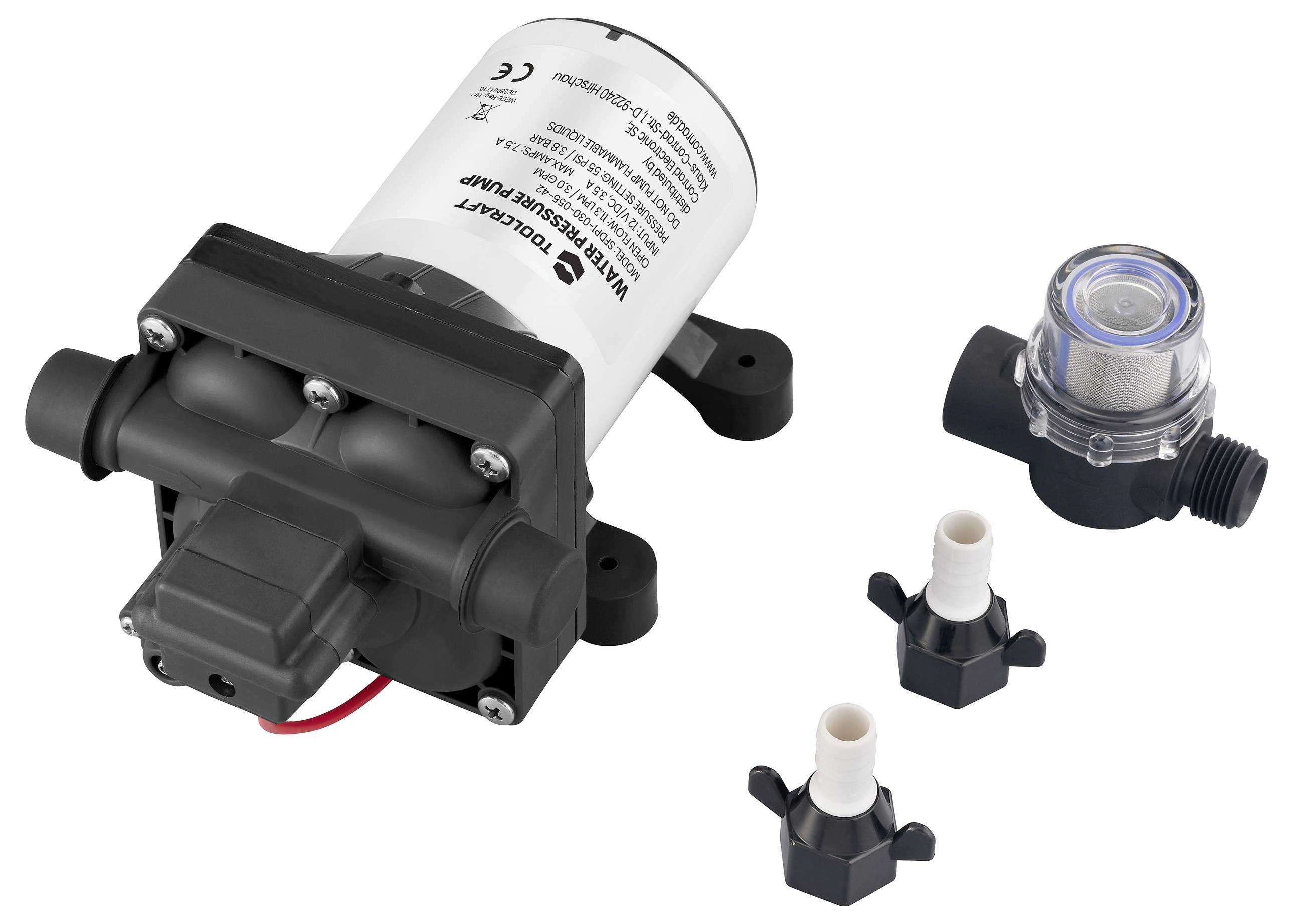

'A water pressure pump, filter, and fittings set. The pump is compact with a cylindrical shape, designed for various plumbing applications.'

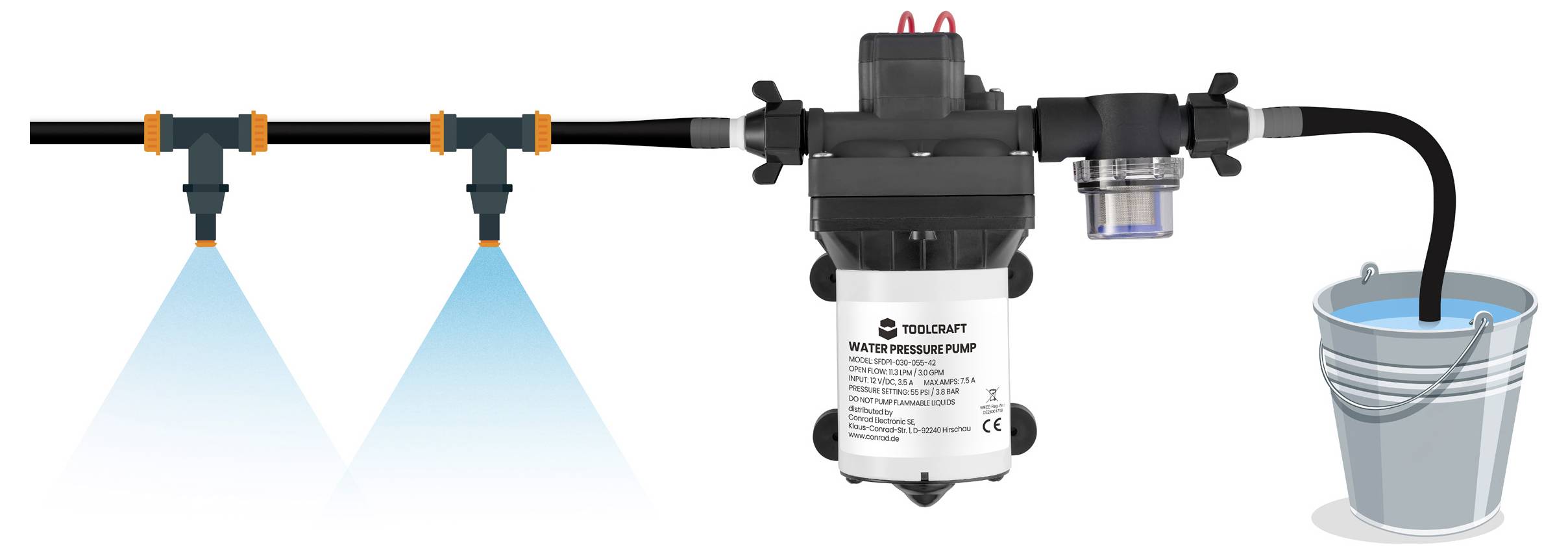

A water pressure pump system with hoses and nozzles spraying water, connected to a bucket.

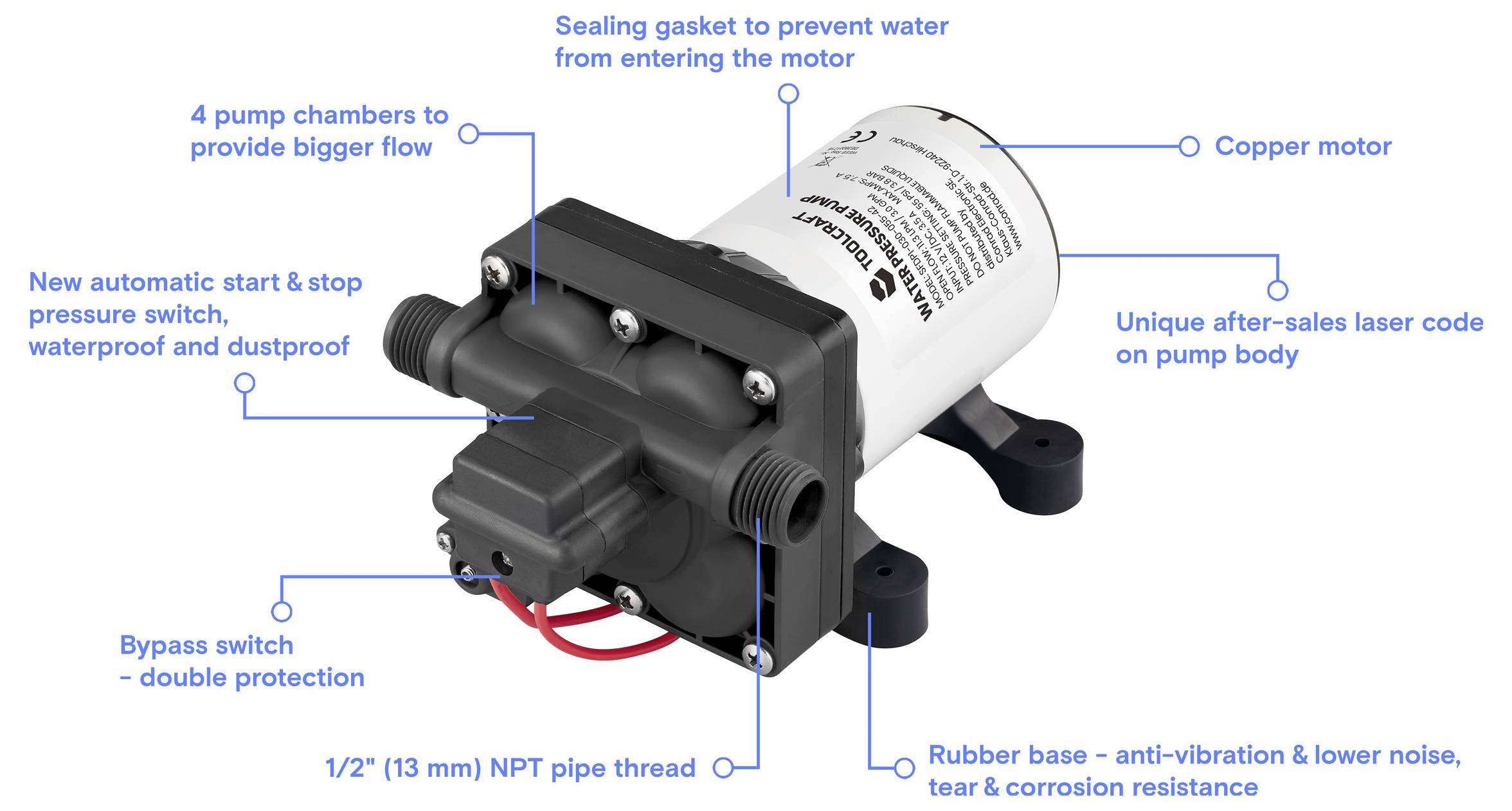

'Diagram of a water pump highlighting features: 4 chambers, copper motor, automatic start/stop, bypass switch, and rubber base.'

1/8

TOOLCRAFT

Our service for you

Fast track dispatch on Thu, 1 Oct

242 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 58.82 / piece)

€ 58.82

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TOOLCRAFT Fresh Water Pressure Pump, 12V, 7.5A, 678 l/h, 3.8 bar

4-chamber diaphragm pump
Compact design
Self-priming

Technical specifications

Operating voltage: 12 V DC

Hose connector: 13 mm (1/2") Ø

Switch-off pressure: 2.4 bar

Max. delivery head: 38 m

Max. discharge pressure: 3.8 bar

Max. feed rate: 678 l/h

Length: 202.5 mm

Width: 125 mm

Height: 111 mm

Dim: (L x W x H) 202.5 x 125 x 111 mm

Weight: 1.85 kg

Selfpriming up to: 1.8 m

Plastic free packaging: Plastic-free packaging

Product type: Low voltage pressure water pump

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3454175 TOOLCRAFT TO-10362525 Low voltage pressure water pump 678 l/h 12 V DC

Warranty Terms

Warranty Terms 3454175 TOOLCRAFT TO-10362525 Low voltage pressure water pump 678 l/h 12 V DC

Description

Reliable and powerful low-voltage pressure water pump.

This text is machine translated.

Features

Automatically controlled by pressure switch and bypass switch
Ignition protected

Scope of delivery

1x Pump
2x Pump fitting (Straight, 1/2'' Barb)
1x Pump filter
1x User manual
