TOOLCRAFT TO-11241450 Digital microscope 200 x Reflected light, Transmitted light
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Highlights & Details

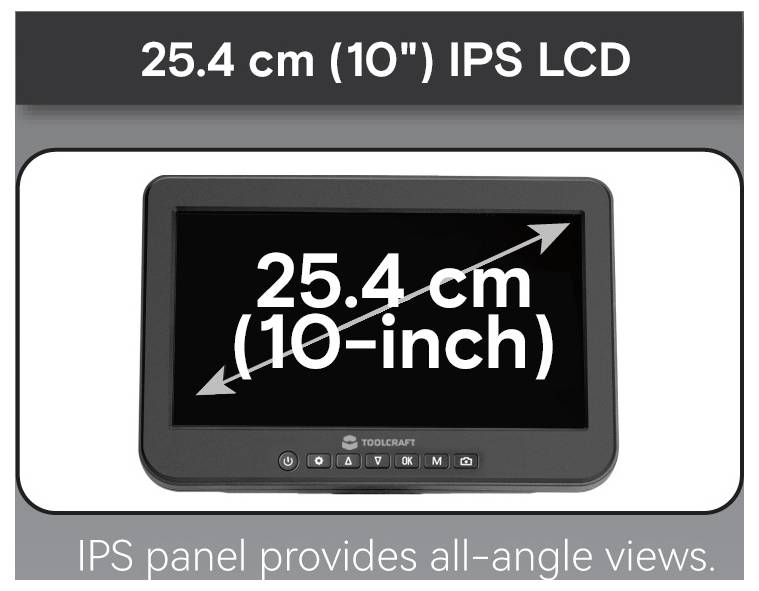

TOOLCRAFT 25.4 cm (10") LCD digital microscope
- Large 25.4 cm (10"") LCD display
- Magnification: 20x to 200x (up to 1200x with digital zoom)

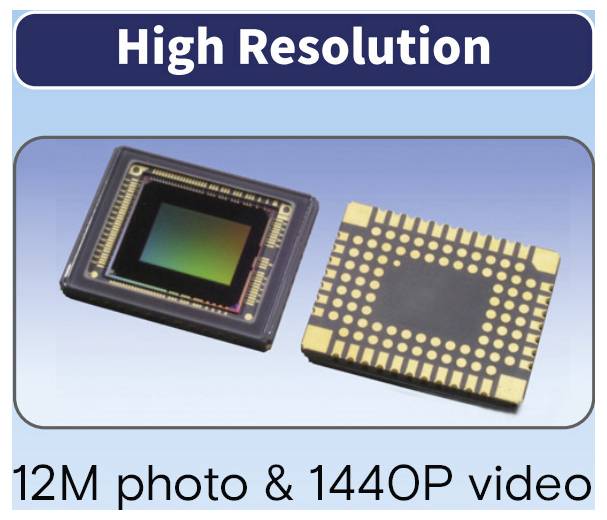

- 1440p HD video resolution
- 12 MP photo resolution
- HDMI output

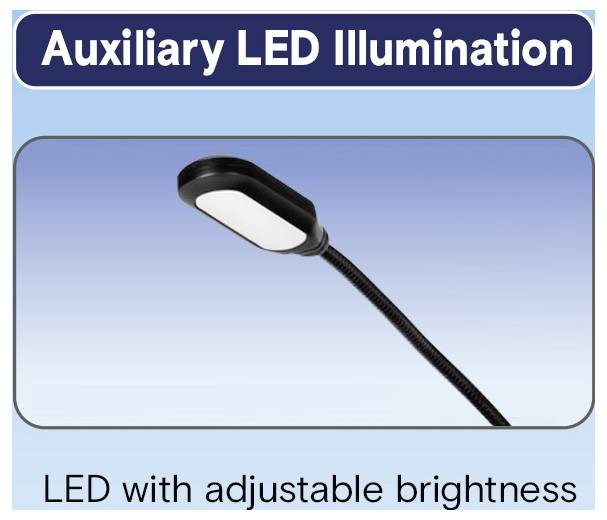

- Auxiliary LED illumination

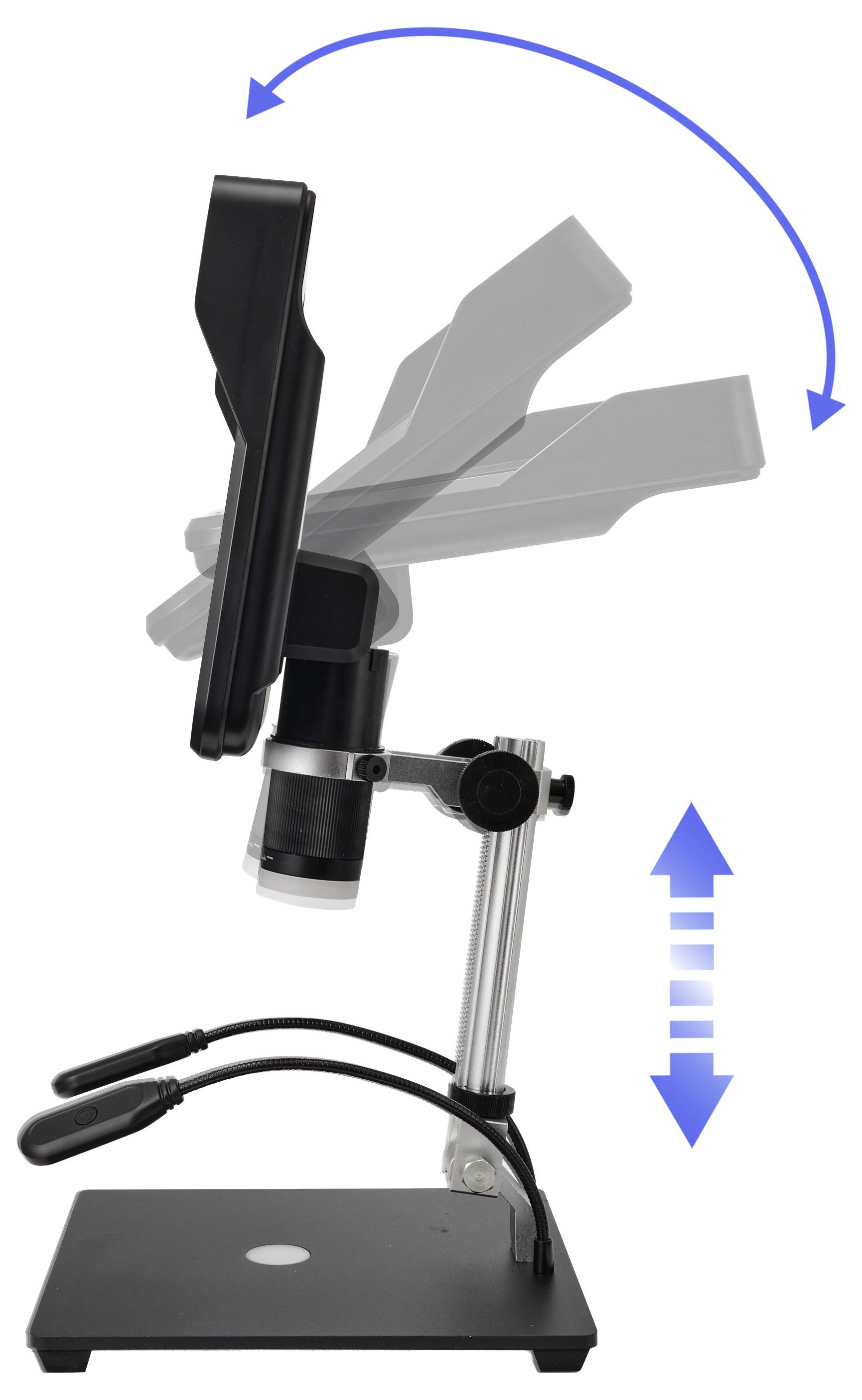

- Adjustable viewing angle

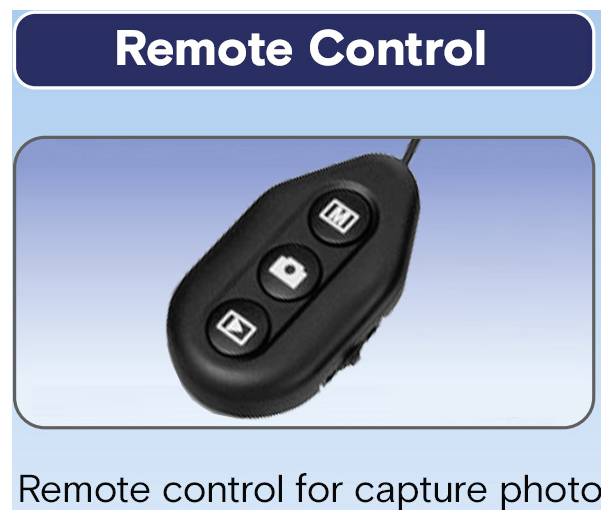

- Remote control for photo capture
Technical specifications
- Video resolution: 1440 p
- Photo resolutions: 12 M, 10 M, 8 M, 5 M, 3 M, 2 M
- Powered by: 5 V / 2 A adapter
- Product type
Digital microscope
- Optical magnification (max.)
200 x
- Digital zoom (max.)
1200 x
- Lighting type
Reflected light
Transmitted light
- Bulb type
LED (monochrome)
- Operating voltage
230 V / AC
- Factory colour
White
- Dim
(L x W x H) 245 x 200 x 360 mm
- Length
245 mm
- Width
200 mm
- Height
360 mm
- Weight
1270 g
- Features
Zoom
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3747150 TOOLCRAFT TO-11241450 Digital microscope 200 x Reflected light, Transmitted light
Description

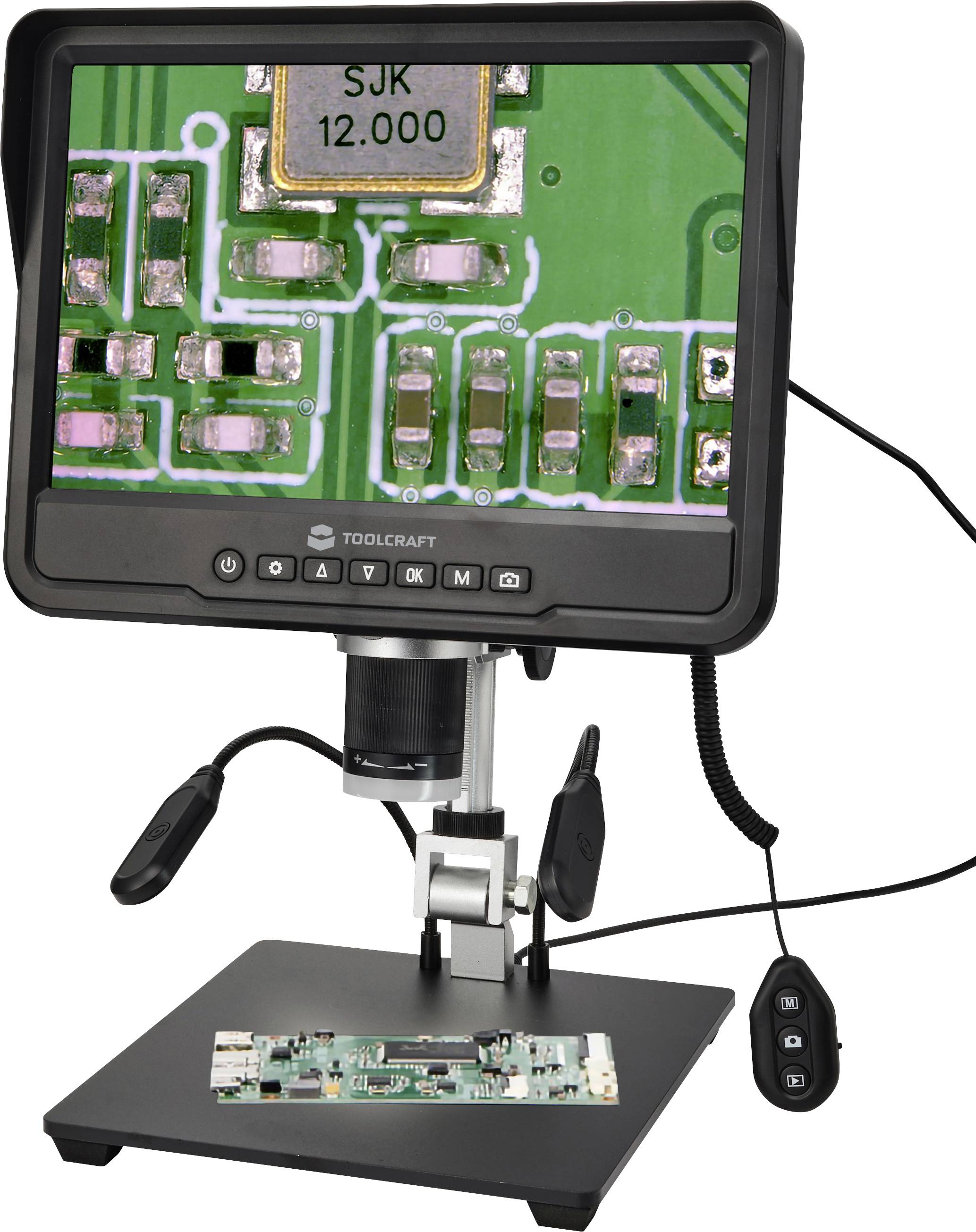

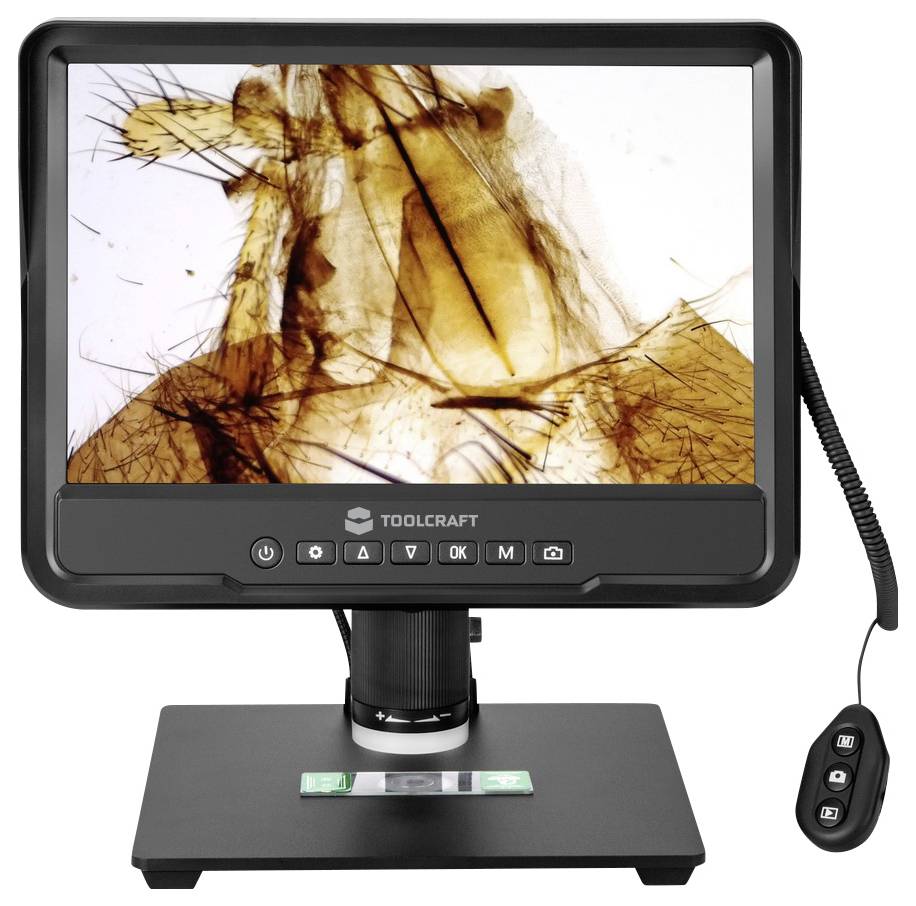

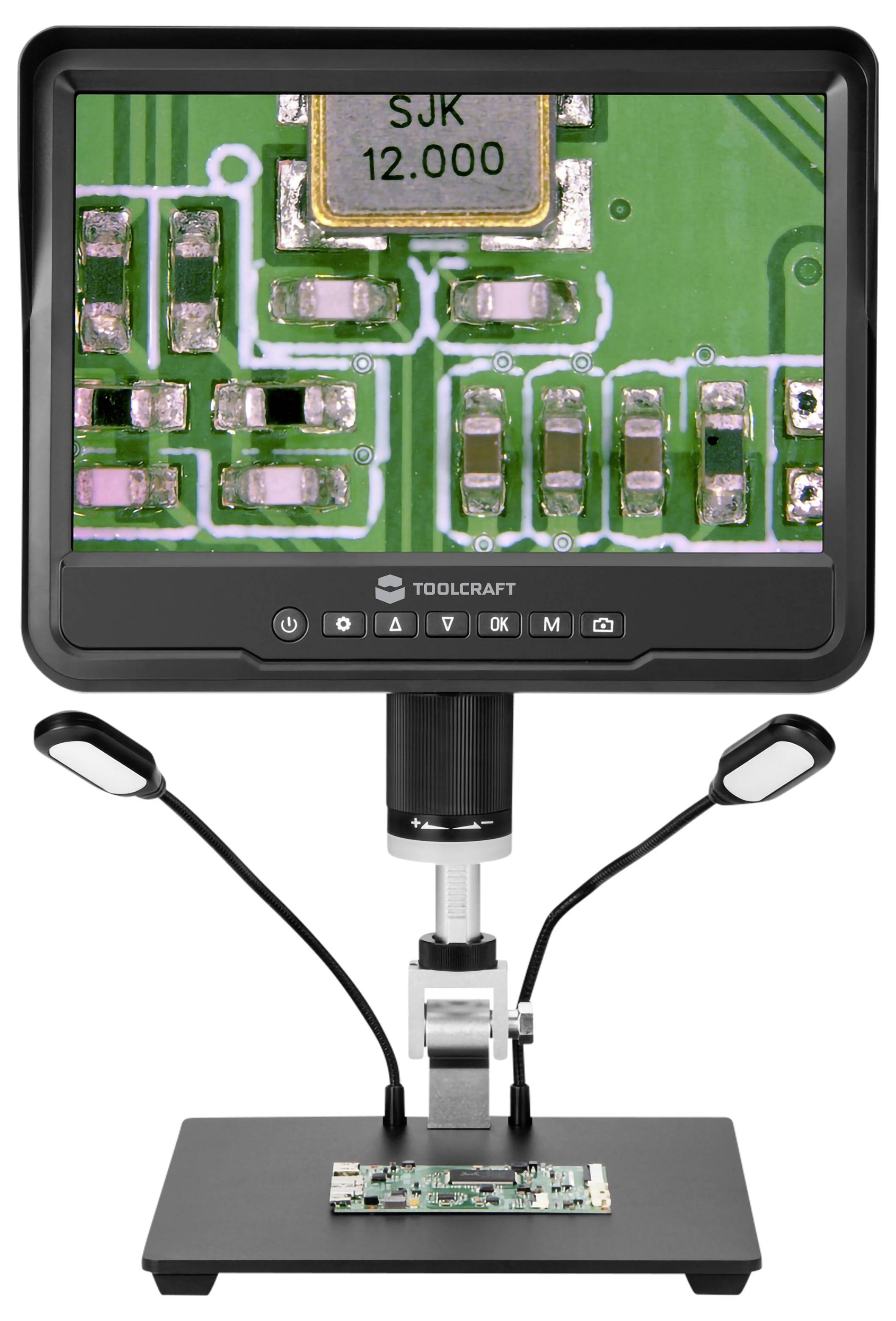

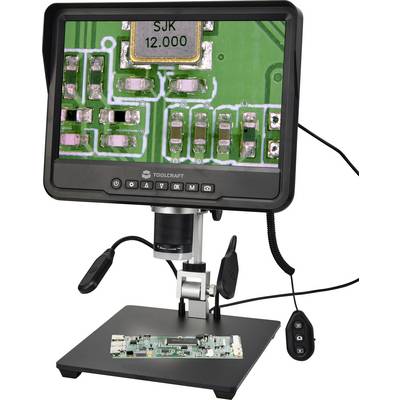

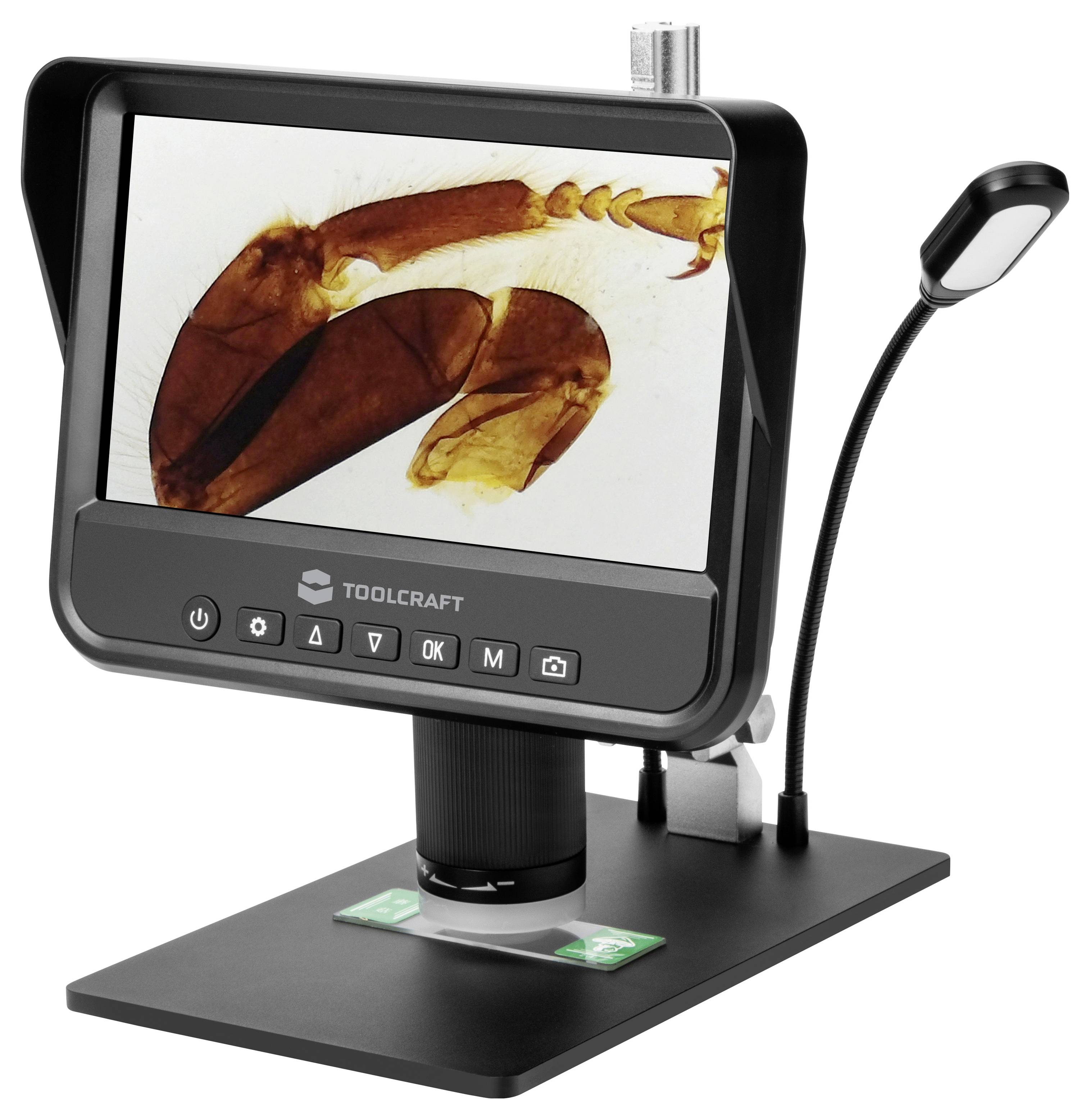

The TOOLCRAFT 25.4 cm (10") LCD digital microscope is an instrument for precise observation and testing tasks in the daily work or for ambitious home users. It is suitable for viewing electronic components, circuits as well as biological thin-film samples and displays the results directly on your own screen.
Detailed description
The device is equipped with a 25.4 cm (10") LCD screen. It offers an optical magnification from 20x to 200x, which can be extended by the zoom function digital up to 1200x. This allows the user to identify even the smallest structures and details on the objects under investigation.
Integrated recording function
Images and videos can be saved directly to log work. The microscope delivers a video resolution in 1440p HD and a photo resolution of up to 12 MP. As a storage medium, the system supports microSD cards with a capacity of up to 128 GB. With the accompanying remote control you can also trigger photos, without touching the device and taking the picture wobbly.
Flexible lighting and ergonomy

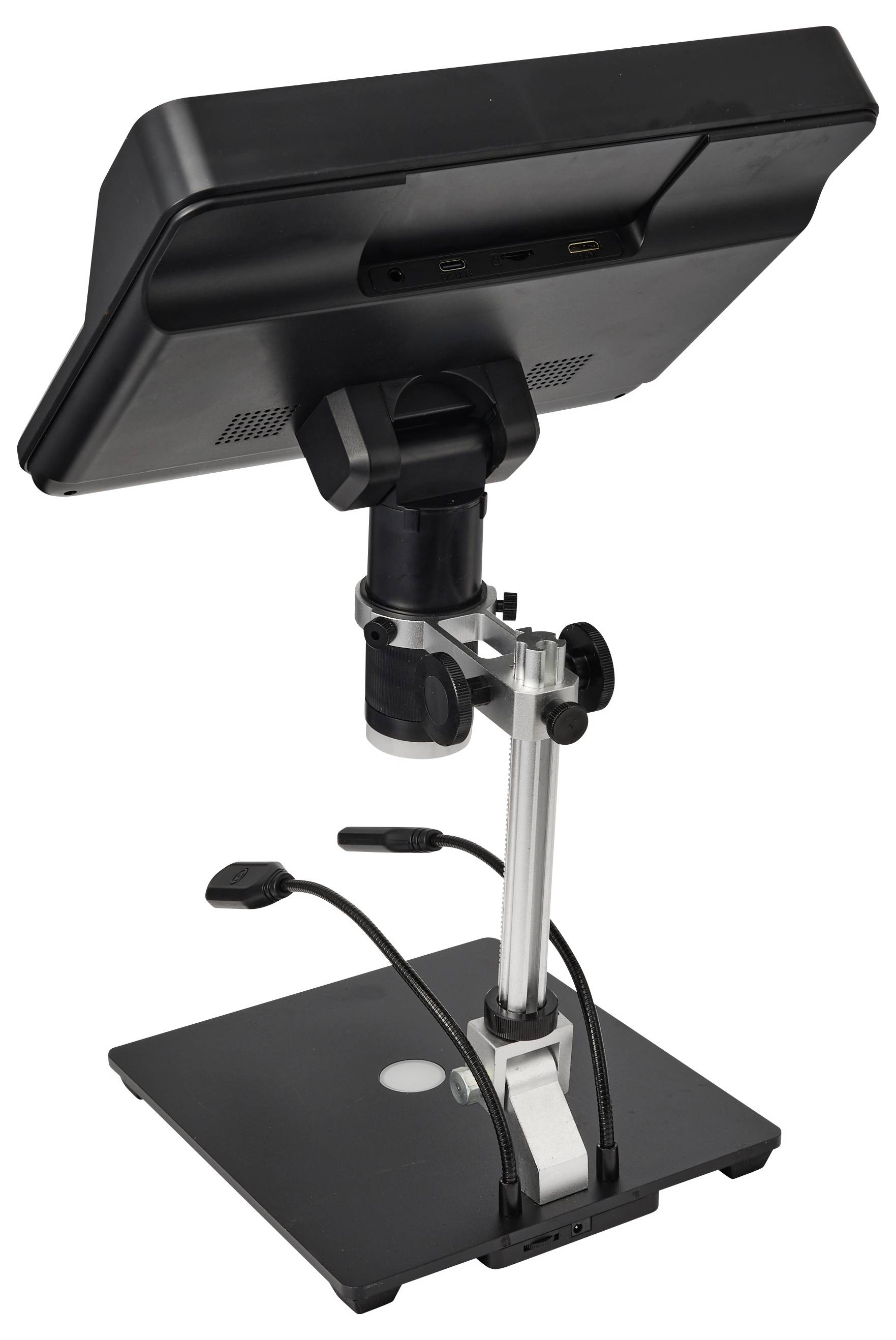

For accurate sample illumination, the microscope offers adjustable LED illumination and a base plate with additional LED for reflected and transmitted light. The professional observation stand has an adjustable viewing angle to allow for different examination positions.
Connection and start-up

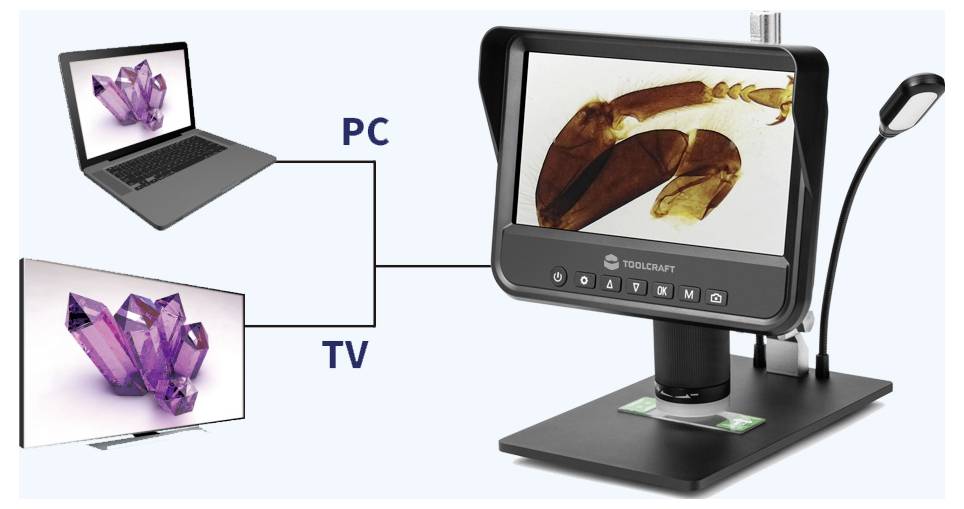

The microscope has an HDMI-output, through which the display can be transmitted to external screens if needed. The device with a weight of 1270 g is powered via the 230 V mains adapter (5 V / 2 A) supplied.
This text is machine translated.
Detailed description
The device is equipped with a 25.4 cm (10") LCD screen. It offers an optical magnification from 20x to 200x, which can be extended by the zoom function digital up to 1200x. This allows the user to identify even the smallest structures and details on the objects under investigation.
Integrated recording function
Images and videos can be saved directly to log work. The microscope delivers a video resolution in 1440p HD and a photo resolution of up to 12 MP. As a storage medium, the system supports microSD cards with a capacity of up to 128 GB. With the accompanying remote control you can also trigger photos, without touching the device and taking the picture wobbly.
Flexible lighting and ergonomy
For accurate sample illumination, the microscope offers adjustable LED illumination and a base plate with additional LED for reflected and transmitted light. The professional observation stand has an adjustable viewing angle to allow for different examination positions.
Connection and start-up
The microscope has an HDMI-output, through which the display can be transmitted to external screens if needed. The device with a weight of 1270 g is powered via the 230 V mains adapter (5 V / 2 A) supplied.
This text is machine translated.
Features
- Supports microSD cards up to 128 GB
- Professional observation stand
- LED with adjustable brightness
- Ideal for examining small objects such as electronic components, circuits, and biological thin-film samples
- Powered by AC adapter
- OSD languages: German, English, Spanish, French, Russian, Japanese, Chinese, etc.

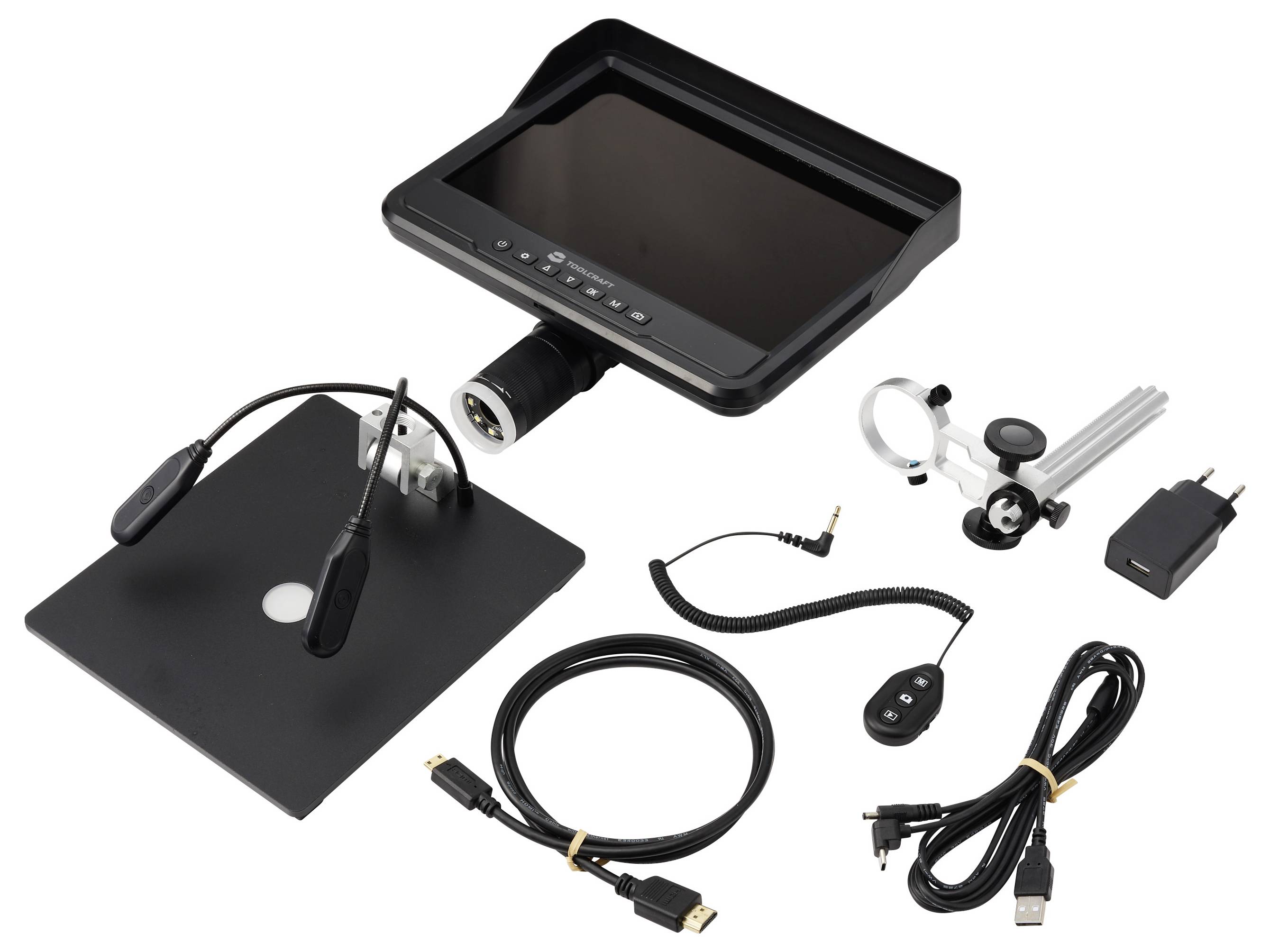

Scope of delivery
- LCD digital microscope
- Microscope stand
- Base plate with auxiliary LED
- Remote control
- Power adapter
- USB cable
- HDMI cable
