TOOLCRAFT TO-6425613 Crimper 1-piece RJ connectors RJ45
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
14-day return policy included
Highlights & Details

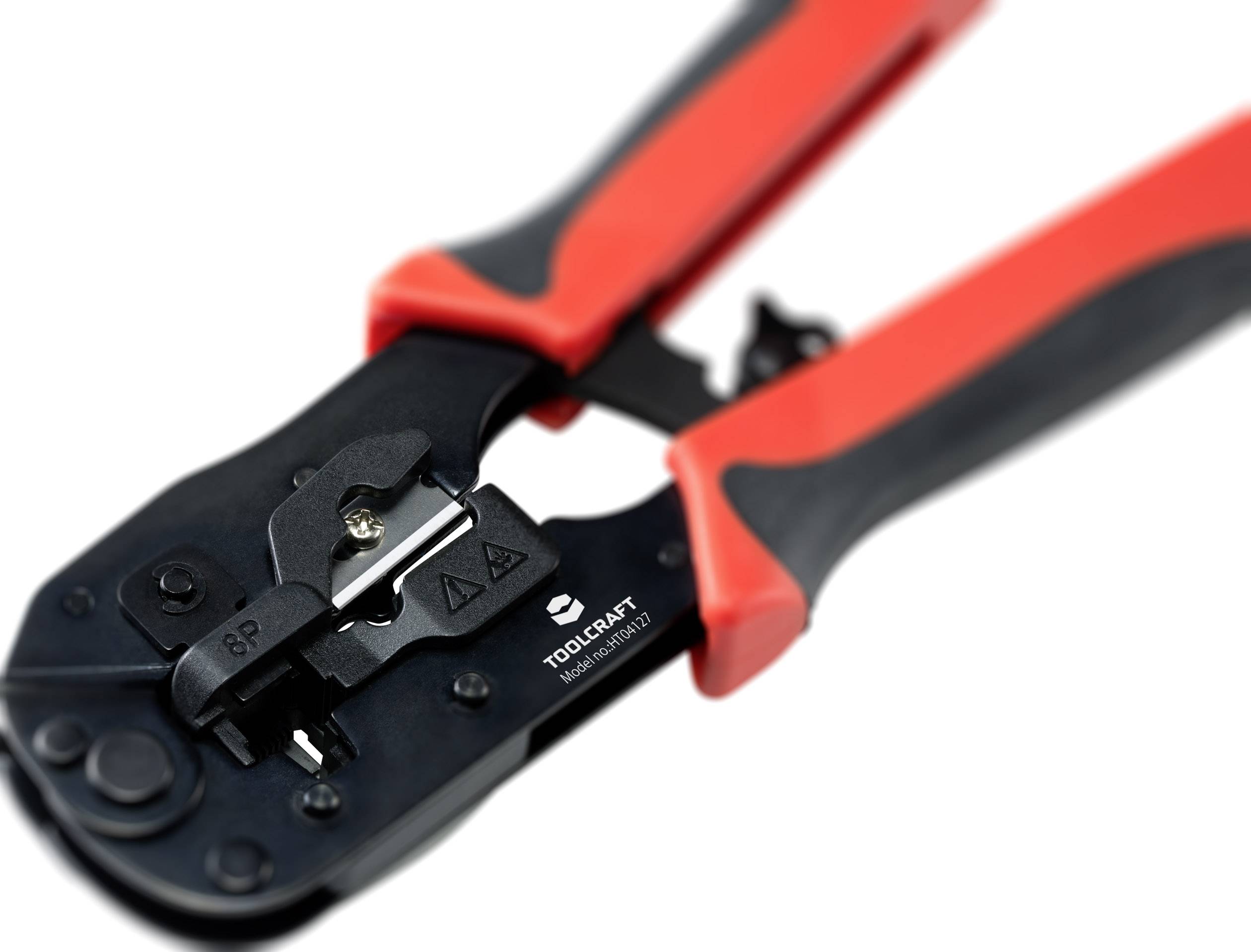

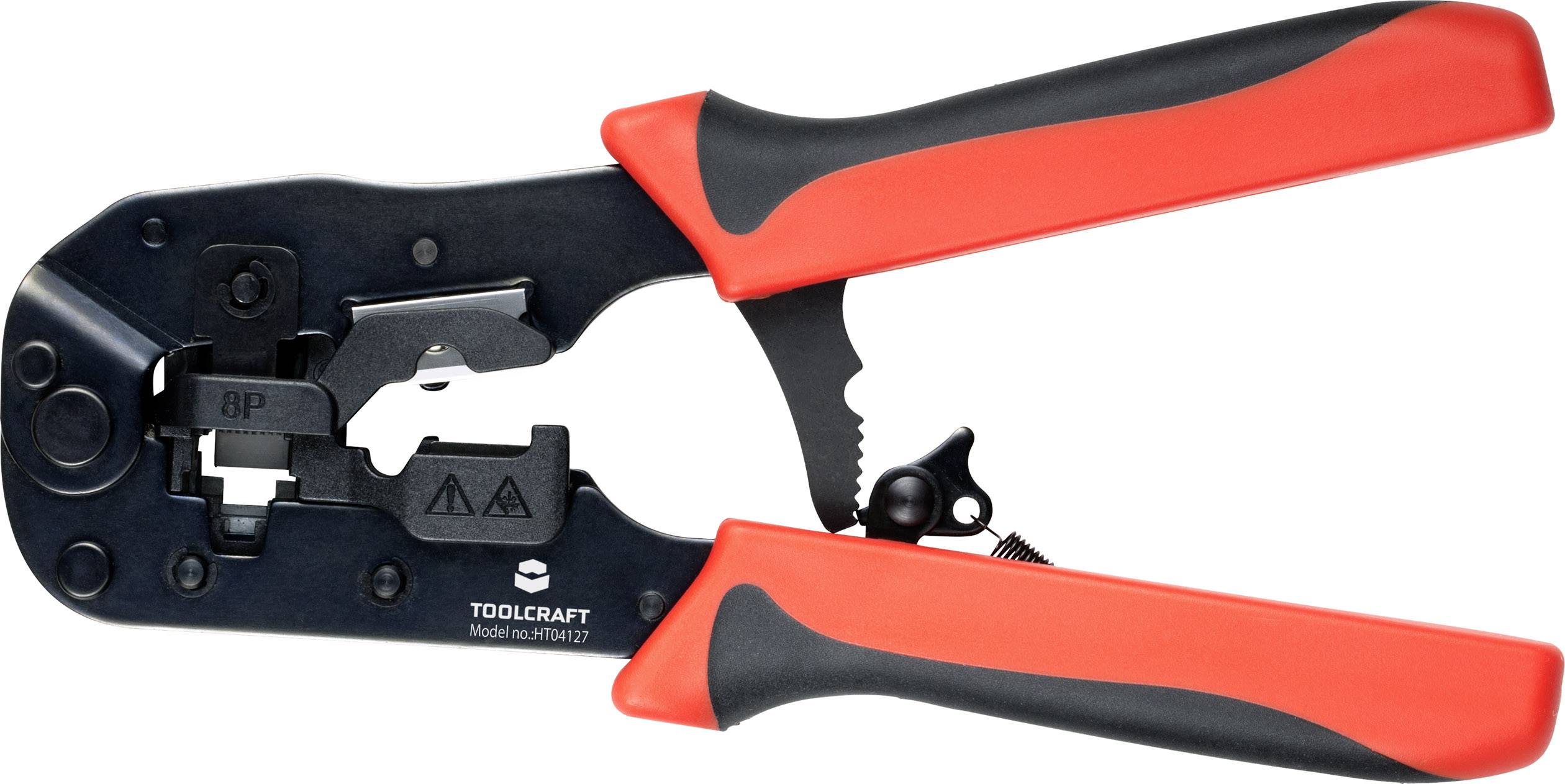

Crimping pliers for RJ45 Cat 6 pass-through connections
- Length 190 mm / 7.5 inch
- Made of Carbon Steel
Technical specifications
- Type of connector suitable for the crimping tool: RJ45(8P8C) only.
- Not for use with standard (non-passthrough) RJ45 modular plugs.
- The blade #1 (width = 9.3mm):SK5 ( Carbon Steel – SK5 )
- The blade #2 (width = 20mm):SK5 ( Carbon Steel – SK5 )
- The red plastic part of handle: PP ( Polypropylene )
- The black plastic part of handle: TPR ( Thermoplastic Rubber )
- The black metal part: Middle Carbon Steel / Black Oxide Finish and heat treatment
- Product type
Crimper
- Manufacturer part #
TO-6425613
- Range of uses
RJ connectors
- Suitable for connectors
RJ45
- Crimp area
- Crimp area AWG
- Length
190 mm
- Material
Carbon steel
Polypropylene (PP)
Thermoplastic
- Width
77 mm
- Height
27 mm
- Weight
304 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2141871 TOOLCRAFT TO-6425613 Crimper 1-piece RJ connectors RJ45
Warranty Terms
Warranty Terms 2141871 TOOLCRAFT TO-6425613 Crimper 1-piece RJ connectors RJ45
Description

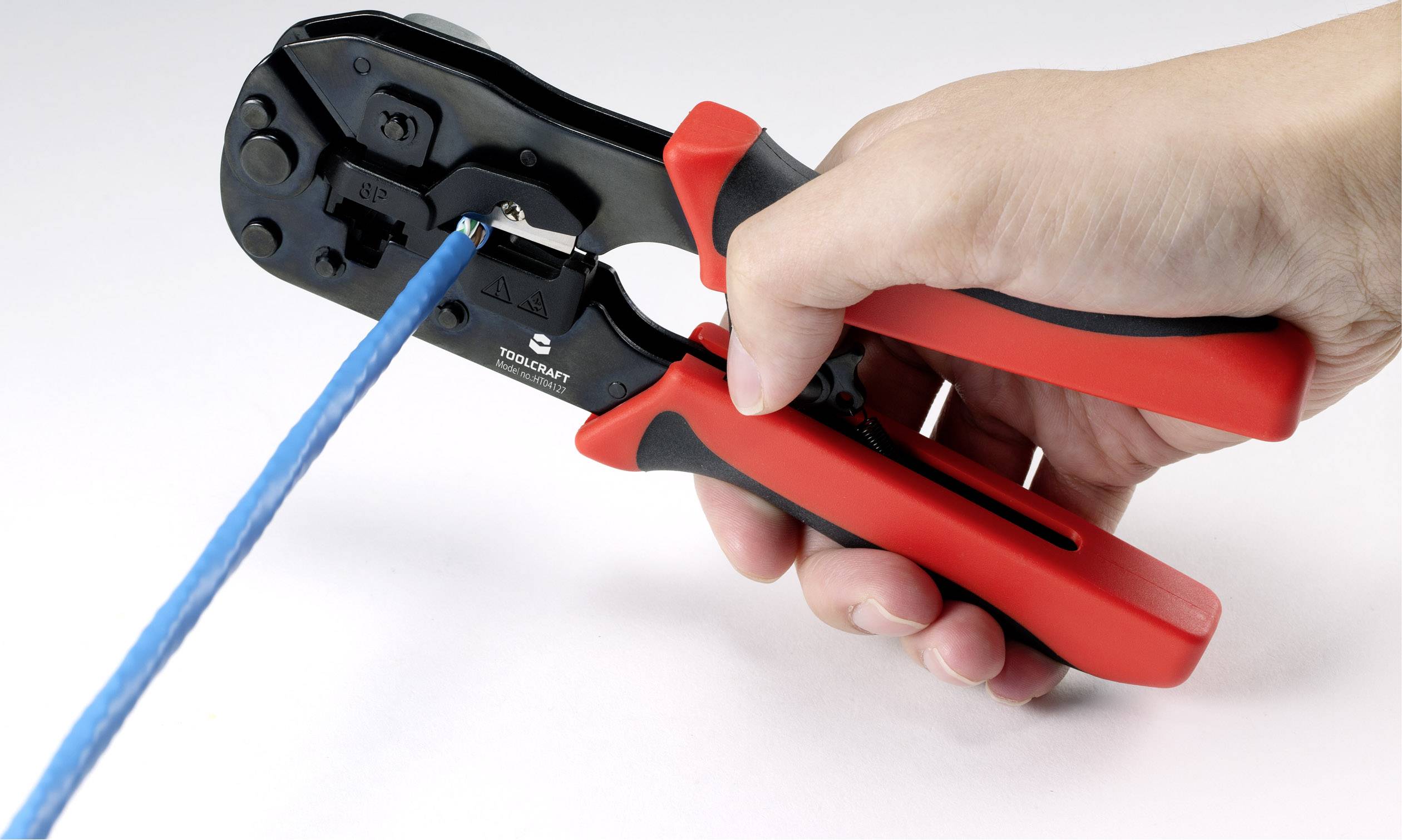

The TOOLCRAFT crimping tool can be used for pass-through connectors. The versatile crimping tool can be used for crimping Ethernet and telephone cables, for cable installation in networks and telecommunications. It is suitable for all network RJ 45 (8P 8C) modular connectors (including shielded connectors).
The crimp and trim system provides a clean, flush cladding on the extended conductors for all EZ connectors. It cuts and seals RJ45 copper wires with a precision punch head..
In addition to the crimping functions, it also cuts wires. It also comes with a ratchet lock and a blade guard.
The crimp and trim system provides a clean, flush cladding on the extended conductors for all EZ connectors. It cuts and seals RJ45 copper wires with a precision punch head..
In addition to the crimping functions, it also cuts wires. It also comes with a ratchet lock and a blade guard.
Scope of delivery
- Crimping tool
