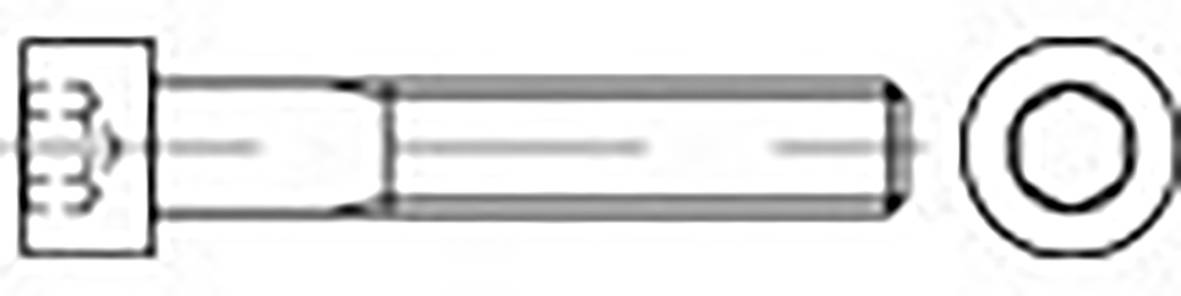

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
TOOLCRAFT TO-6857031 Cheese head screw M4 10 mm Hex socket (Allen) DIN 912 Stainless steel V2A A2 200 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Cheese head screw
- Drive
Hex socket (Allen)
- DIN standard
DIN 912
- Nut included
No
- Content
200 pc(s)
- Material
Stainless steel V2A
- Length
10 mm
- Thread size
M4
- Material properties
A2
- Head shape
Cheese head
- Gradient
0.7 mm
- Outside Ø
4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2285677 TOOLCRAFT TO-6857031 Cheese head screw M4 10 mm Hex socket (Allen) DIN 912 Stainless steel V2A A2 200 pc(s)
Description
DIN 912 A 2 - 70 socket head screws with dimensions: M 4 x 10*
This text is machine translated.
This text is machine translated.
