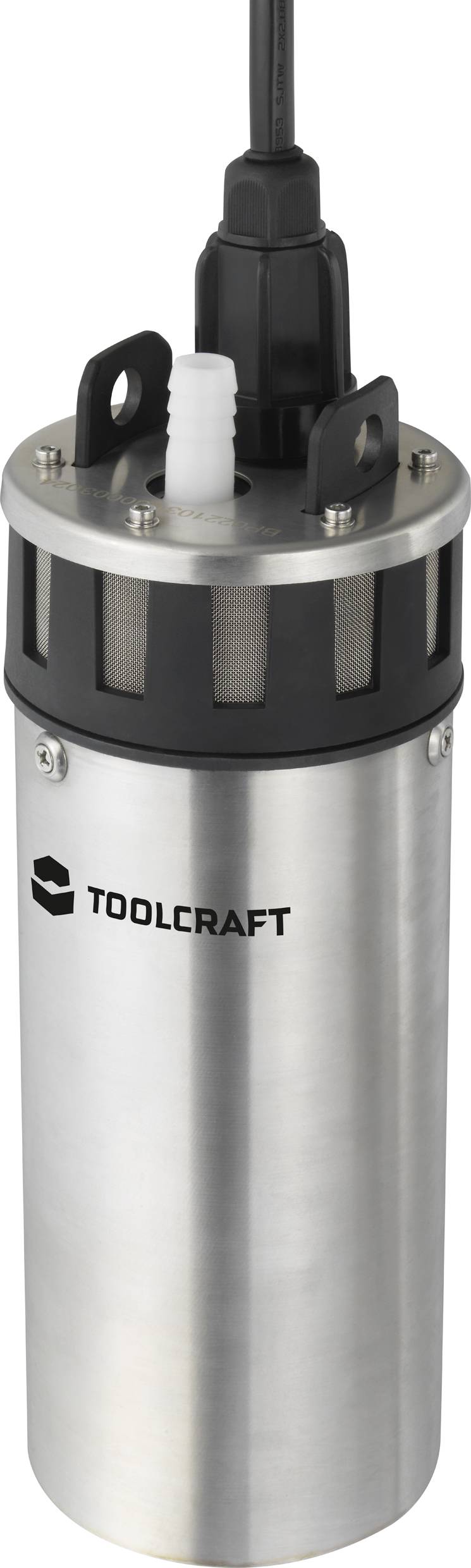

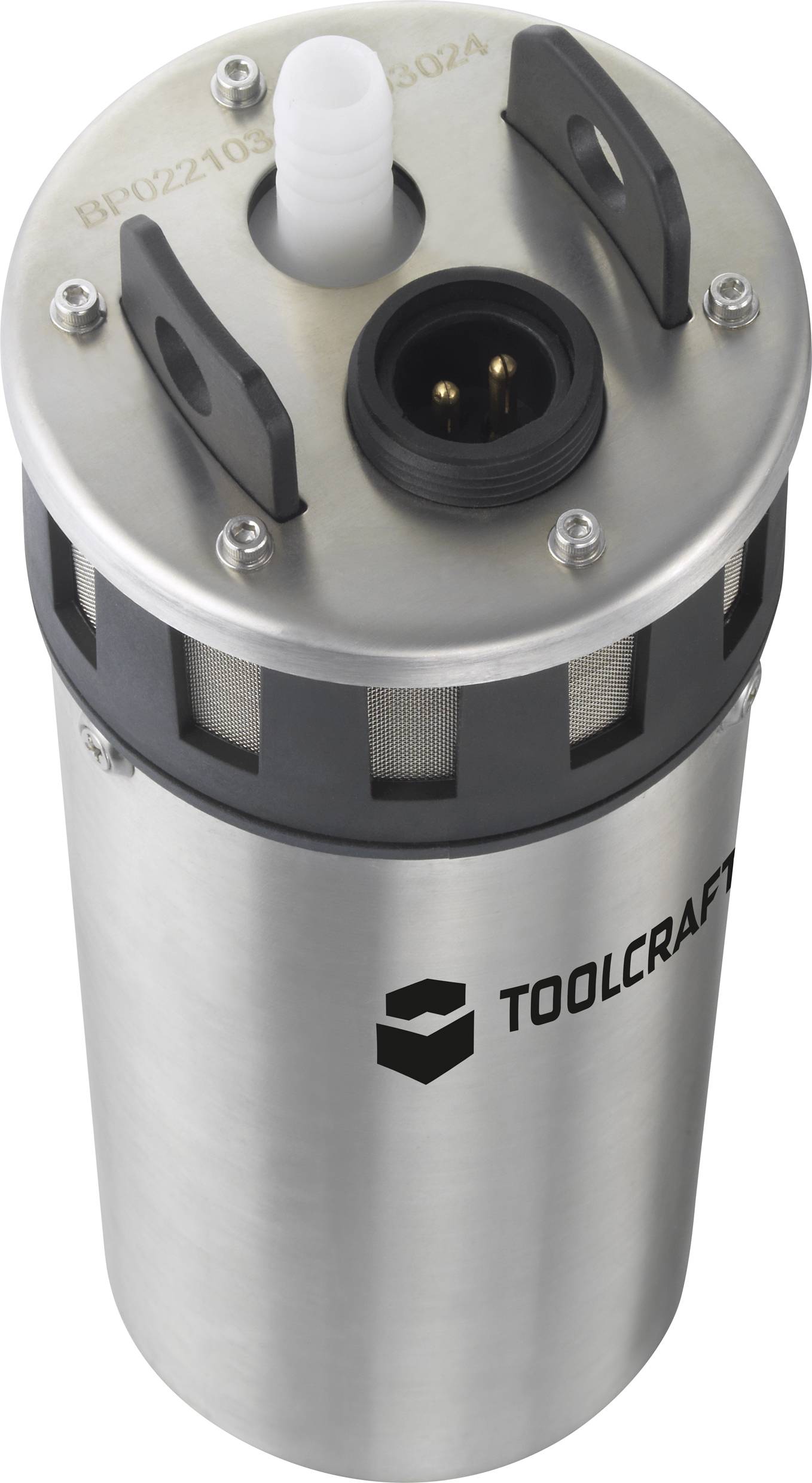

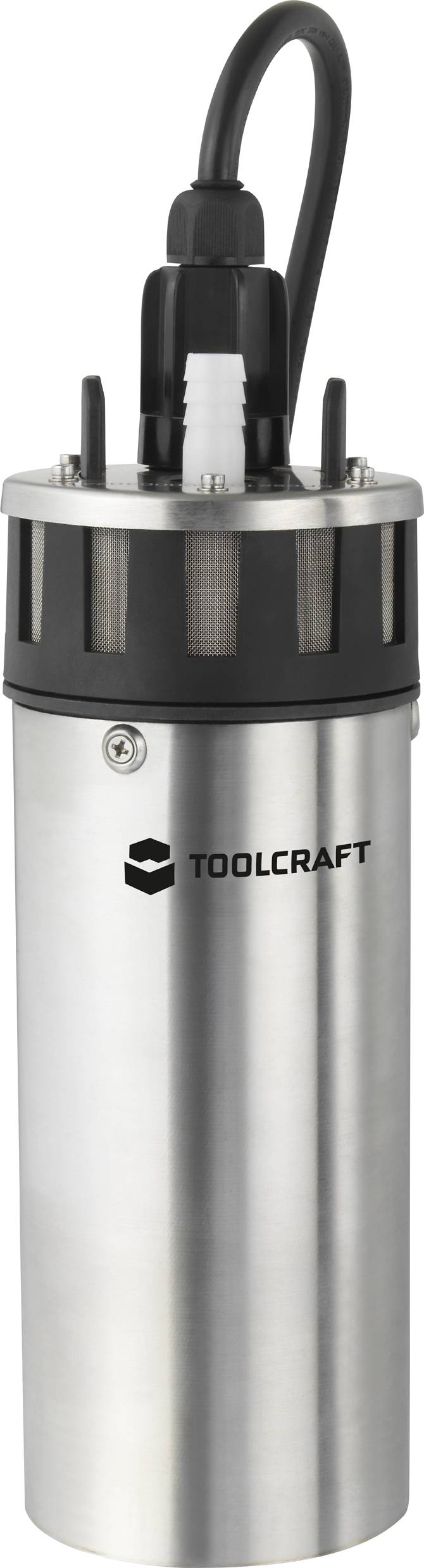

TOOLCRAFT TO-7159143 Well pump 390 l/h 24 V DC
EAN:
Part number:
Item no:
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
Deep well pump 24 V, 6 A, 390 l/h

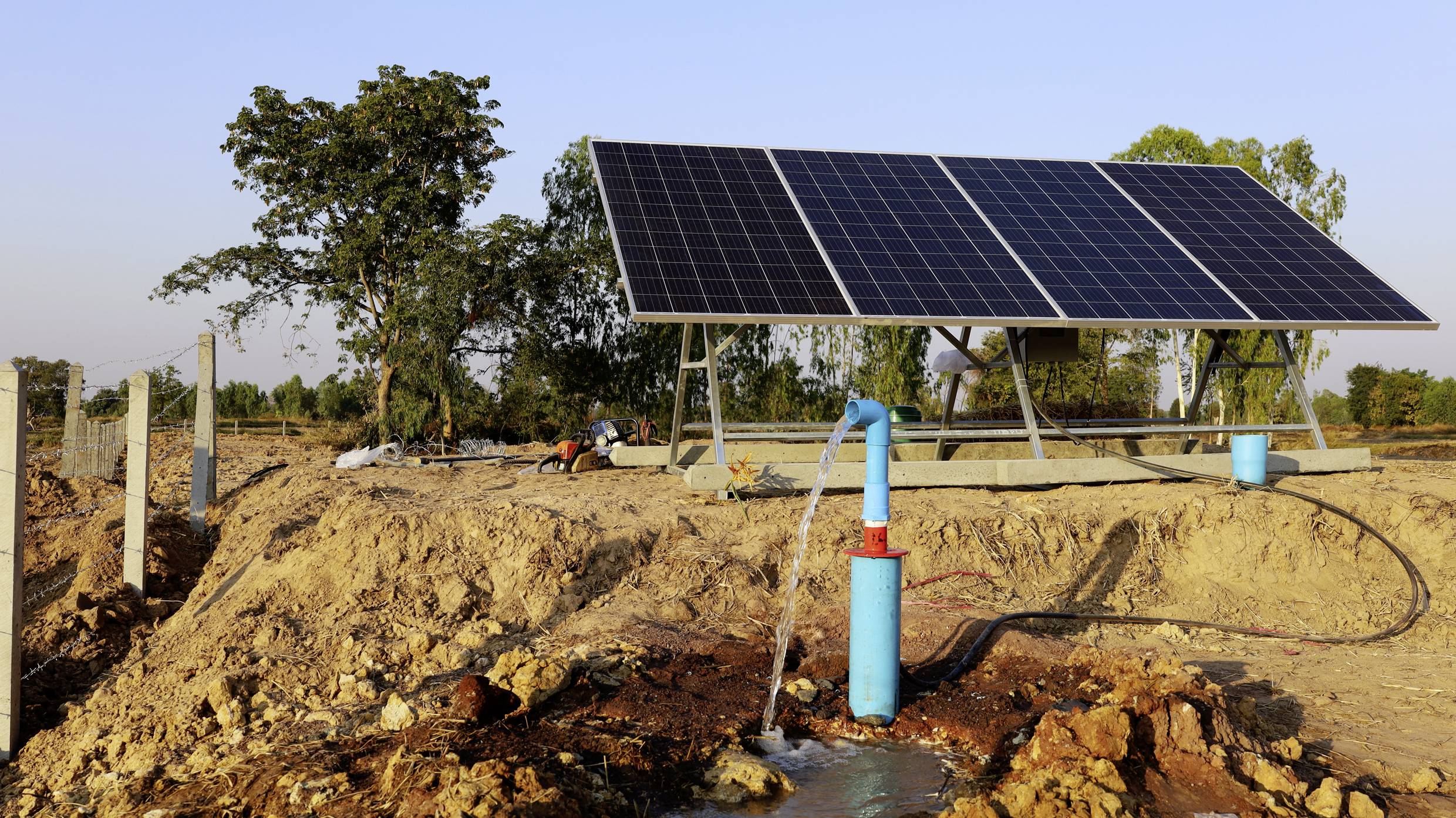

- Designed to be used with solar panels or a 24 V battery system
- For 10.16 cm (4") wells or larger
- 304 stainless steel housing
Technical specifications
- Operating voltage
24 V DC
- Hose connector
12.7 mm (1/2”) Ø
- Max. delivery head
70 m
- Max. discharge pressure
7 bar
- Max. feed rate
390 l/h
- Height
310 mm
- (Ø)
98 mm
- Dim
(Ø x H) 98 mm x 310 mm
- Weight
3.7 kg
- Plastic free packaging
Plastic-free packaging
- Product type
Well pump
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2386381 TOOLCRAFT TO-7159143 Well pump 390 l/h 24 V DC
Conformity certificate
Conformity certificate 2386381 TOOLCRAFT TO-7159143 Well pump 390 l/h 24 V DC
Warranty Terms
Warranty Terms 2386381 TOOLCRAFT TO-7159143 Well pump 390 l/h 24 V DC
Description

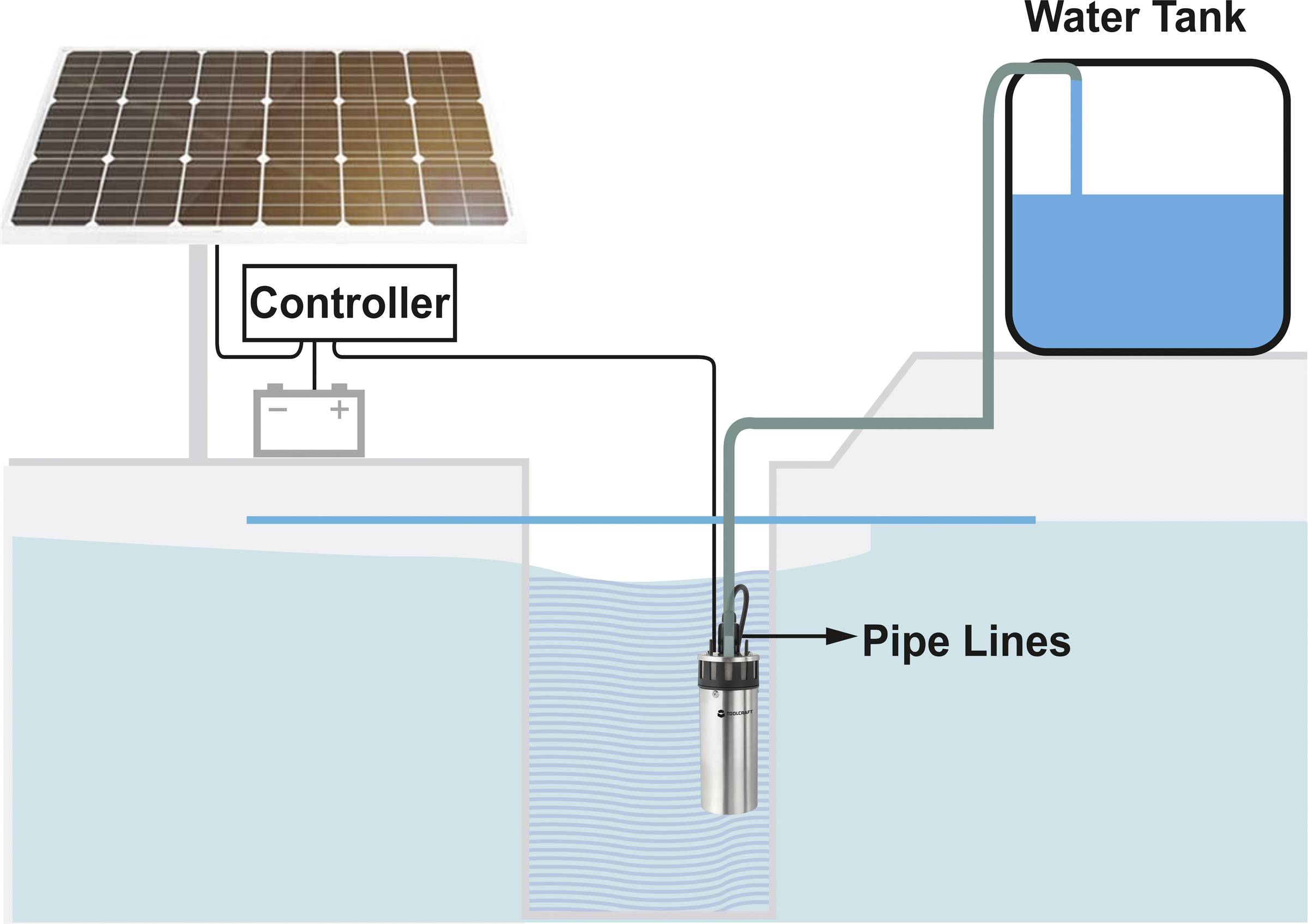

For operation with solar elements or a 24 V rechargeable battery.
This text is machine translated.
This text is machine translated.
Features
- Diving depth up to 100 feet (30 m)
- Lift up to 230 feet (70 m)
- 2.5mm², 2 meter (6.7 feet) long lead
- IPX8

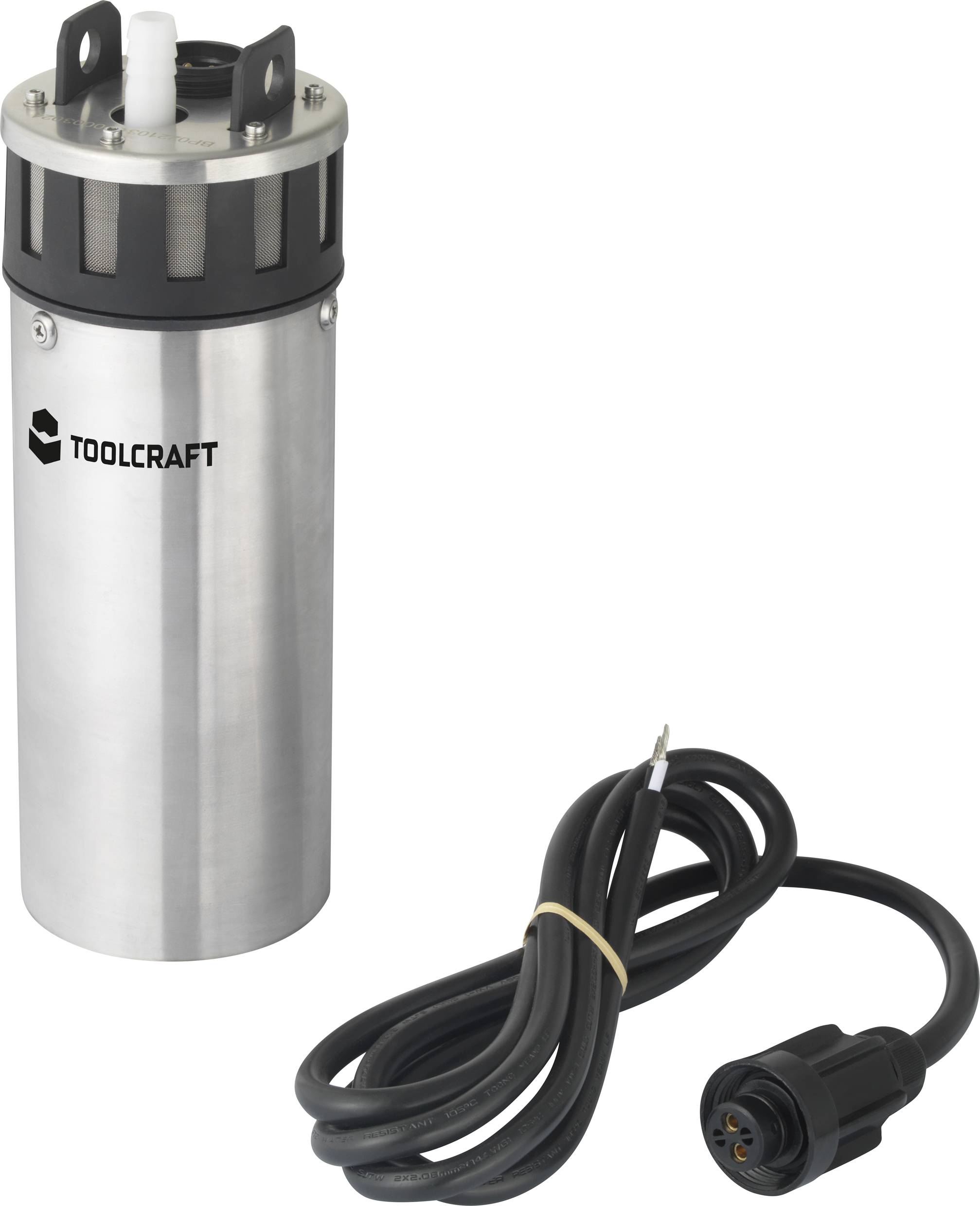

Scope of delivery
- Pump
- Power cord
- Ø 12.7 mm (1/2") hose
- L spanner
- 2x Rubber ring
- Hose clamp
- User manual
