TOOLCRAFT TO-9625854 Crimp inset MCP Flat Contact , SPT Flat Contact 2.5 mm² (max)
EAN:
Part number:
Item no:
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details

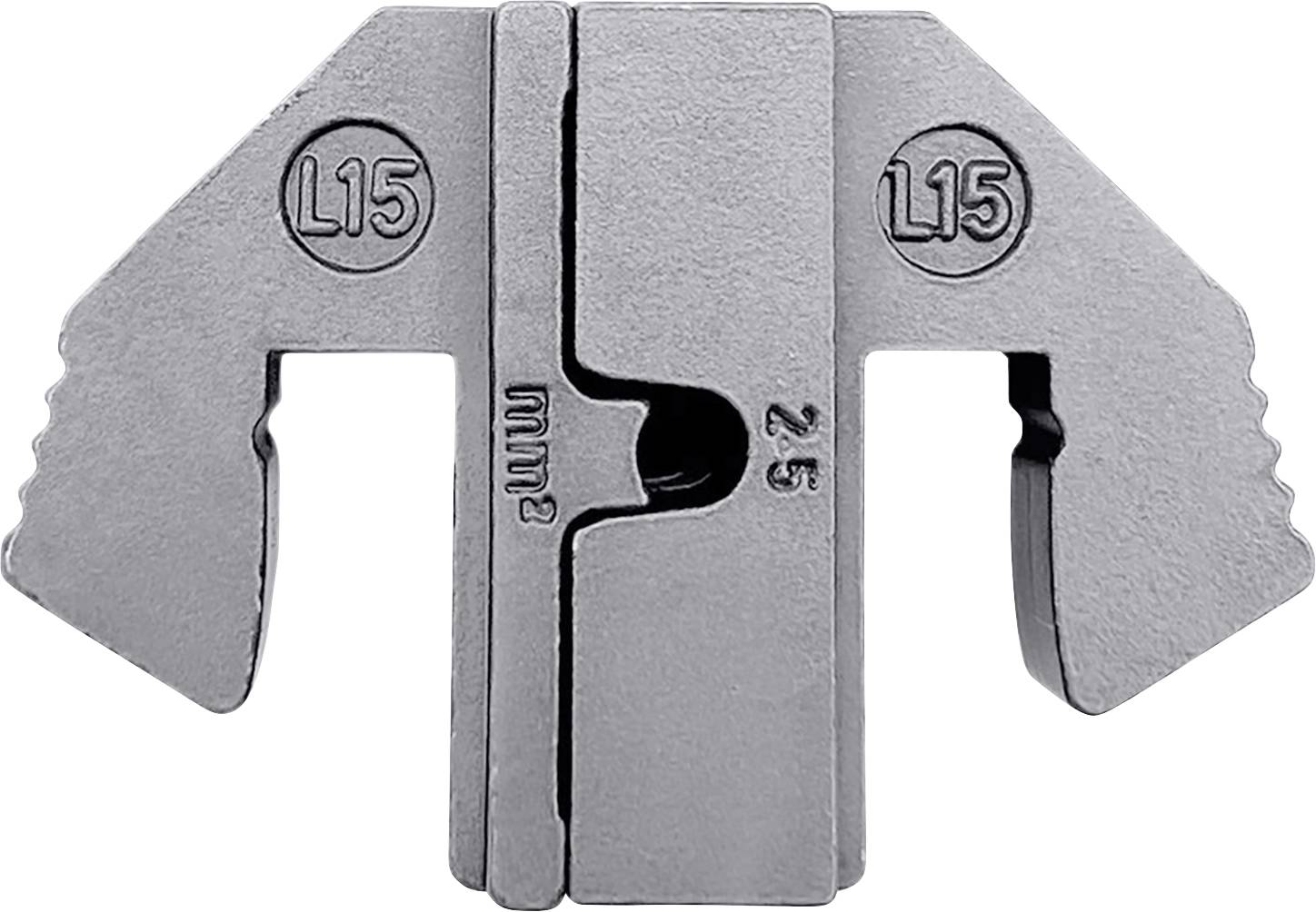

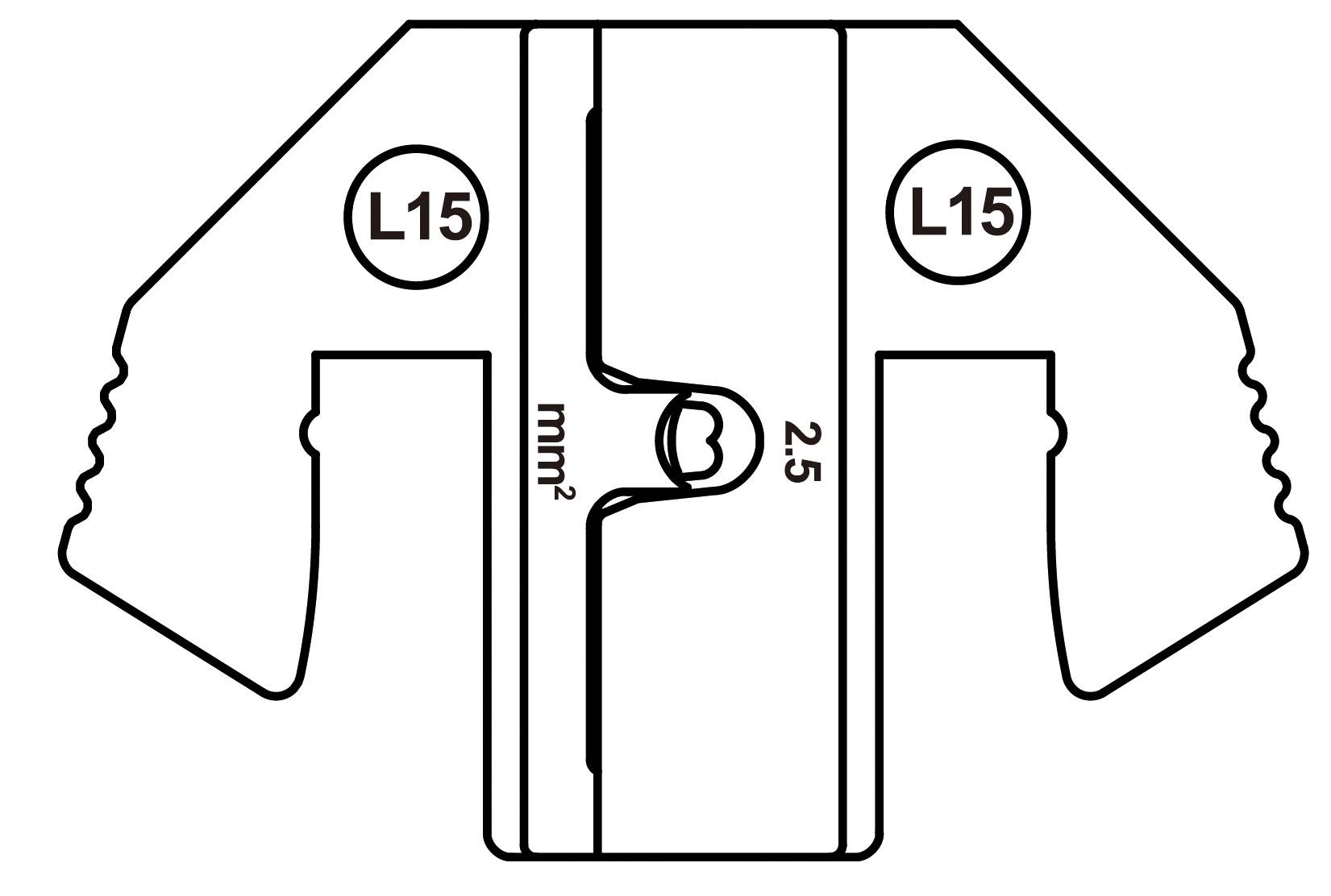

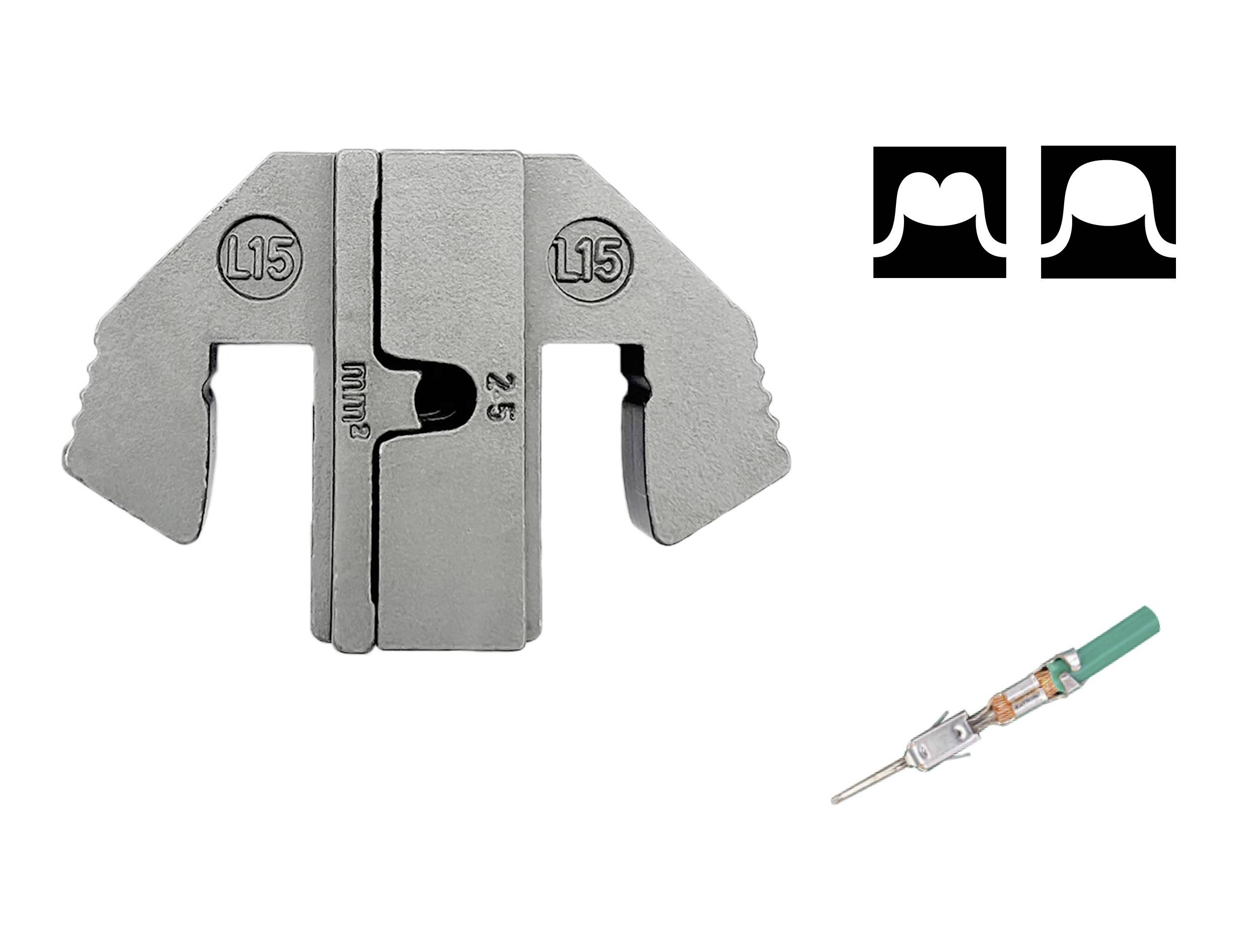

TOOLCRAFT Crimping insert for 2.5 mm2 MCP & SPT Flat Contact
- Precision and wax-lost casting
- Treatment: Finished with heat treatment
- Zinc phosphate surface treatment
Technical specifications
- Material: AISI 4140 steel 1.7225 42CrMo4 SCM440
- Product type
Crimp inset
- Manufacturer part #
TO-9625854
- Range of uses
MCP Flat Contact
SPT Flat Contact
- Crimp area (max.)
2.5 mm²
- Length
50.7 mm
- Material properties
zinc phosphate coating
alloyed
- Width
10 mm
- Height
34 mm
- Weight
69.8 g
- Crimp area
2.5 mm² (max)
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3208618 TOOLCRAFT TO-9625854 Crimp inset MCP Flat Contact , SPT Flat Contact 2.5 mm² (max)
Warranty Terms
Warranty Terms 3208618 TOOLCRAFT TO-9625854 Crimp inset MCP Flat Contact , SPT Flat Contact 2.5 mm² (max)
Description
Crimping inserts for TOOLCRAFT crimping pliers
Features
- Crimping range: 2.5 mm²
- Suitable forMCP & SPT Flat Contact
Scope of delivery
- 1 Crimp insert
Hints
For operating the TOOLCRAFT system pliers Order No. 1423556 or identical model necessary!
