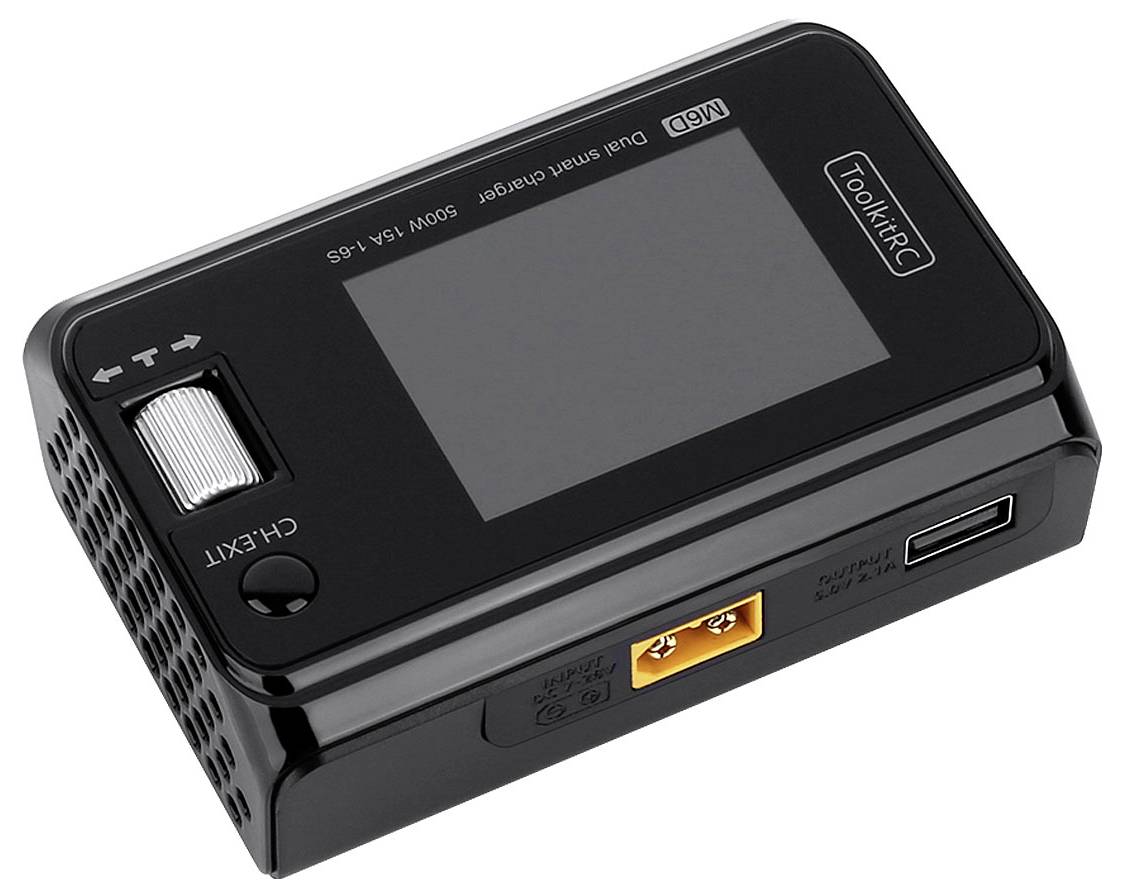

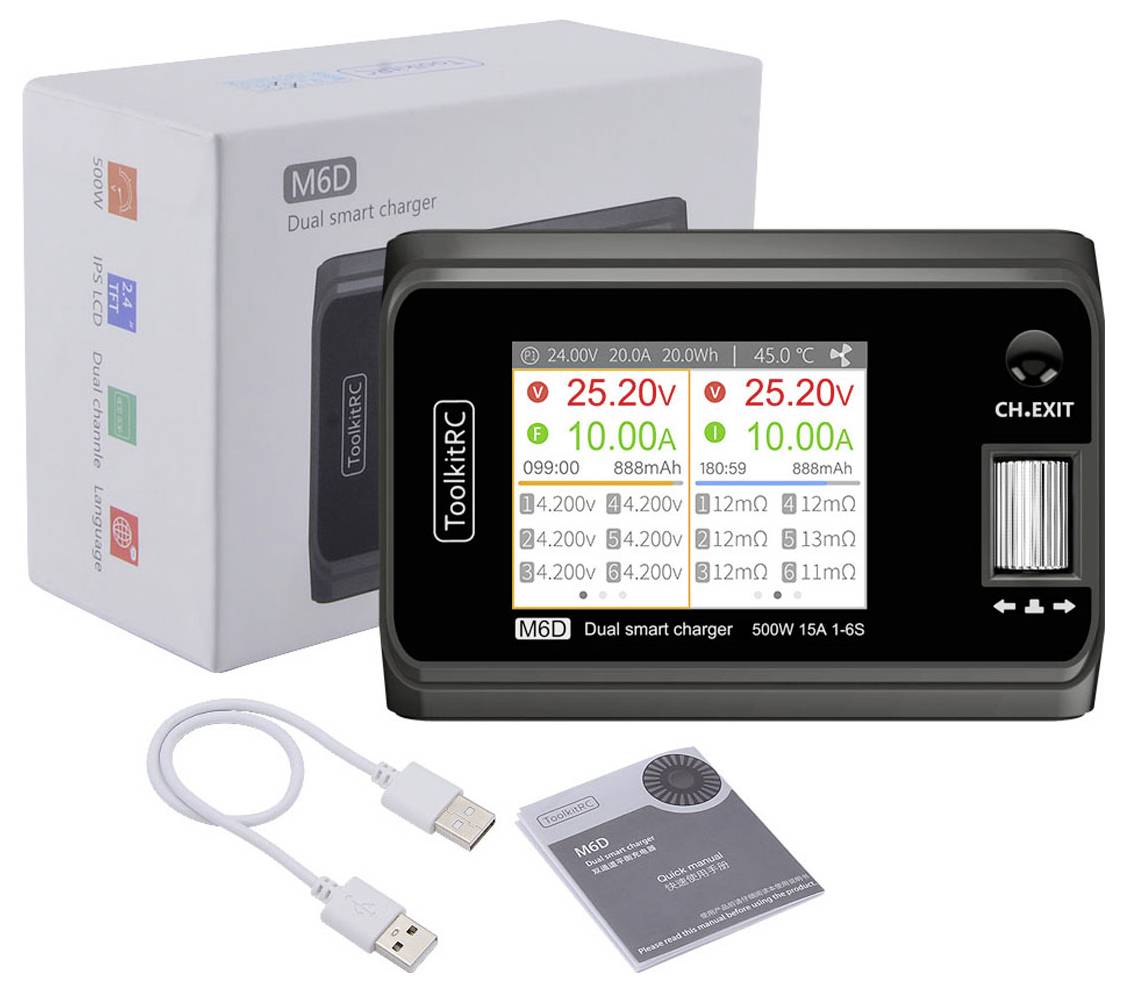

Toolkit RC M6D Scale model battery charger 25 A LiPolymer, LiFePO, Li-ion, LiHV, NiMH, Lead, NiCd
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Technical specifications
- Input voltage DC 7-28V, max. 30A
- Charging current: 0.1-15A, 250W x2 (asynchronous mode), 0.1-25A, 500W (synchronous mode)
- Discharge current: 0.1-15A, 250W x2 (recycle mode), 0.1-3A, 12W x2 (normal mode)
- Charging accuracy <0.005V
- USB 2.1A, 5V (or upgrade)
- Balancer current 800 mA, 2-6S
- Number of cells: LiPo/LiFe/LiIon/LiHV 1-6S
- Number of cells: NiMH/NiCd 1-16S
- Pb battery voltage: 1-10S
- VOLTAGE 1.0V-5.0V, 1-6S
- Display: IPS 2.4'' 320x240px LCD
- Max. charging capacity
500 W
- Charging current (max.)
25 A
- Discharge current
3 A
- Charging slots
1
- Dim
(L x W x H) 98 x 68 x 35 mm
- Height
35 mm
- Length
98 mm
- Width
68 mm
- Matching rechargeable battery
LiPolymer
LiFePO
Li-ion
LiHV
NiMH
Lead
NiCd
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
6
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
1
- Suitable for (no. of NiCd/NiMH batteries) (max.)
16
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Suitable for lead-type rechargeables (max.)
10 V
- Suitable for lead-type rechargeables (min.)
1 V
- Manufacturer part #
TK10800
- Weight
220 g
- Product type
Scale model battery charger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400272 Toolkit RC M6D Scale model battery charger 25 A LiPolymer, LiFePO, Li-ion, LiHV, NiMH, Lead, NiCd
Description
The M6D charger is smaller, lighter and almost as powerful as the M6DAC charger. The two available charging channels and the helpful functions for discharging, cyclic charging and general settings WAS make this smart Dual device hardly ever go wrong. Because of its special construction, the charger is even able to supply two accumulators with more energy than just a new one.
This charging process can take place with the M6D both synchronously and asynchronously. This is precisely what makes this charger so versatile. This means that if for example two batteries are charged in synchronous mode, the charging process runs the same time and the charger can thus provide the maximum charging current of up to 25A. In asynchronous mode, on the other hand, both batteries are charged separately and thus a current of max. 15A is possible.
This text is machine translated.
This charging process can take place with the M6D both synchronously and asynchronously. This is precisely what makes this charger so versatile. This means that if for example two batteries are charged in synchronous mode, the charging process runs the same time and the charger can thus provide the maximum charging current of up to 25A. In asynchronous mode, on the other hand, both batteries are charged separately and thus a current of max. 15A is possible.
This text is machine translated.
Features
- Up to 500W charging power and a maximum of 25A charging current in synchronous mode
- Max. 250W discharge power and maximum 15A
- Operation via the DC input (7-28V)
- Simple operation with scroll wheel and one button
- Multilingual user interface incl. speech output
- Can be upgraded via USB
- Various safety monitors
