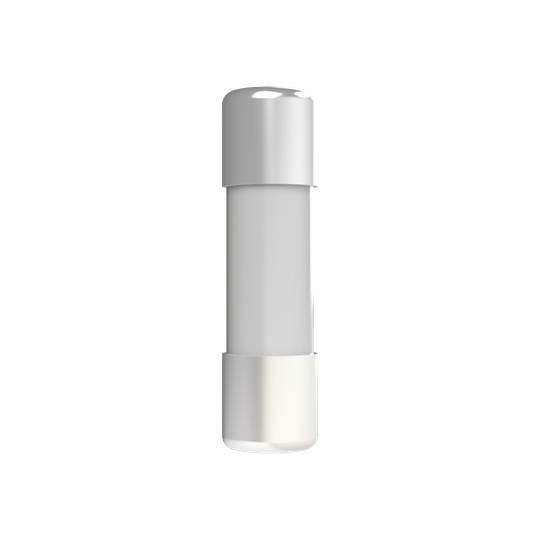

Torpedo fuse 0.5 A 500 V AC Time delay -T- ABB E 9F10 AM05 1 pc(s)
EAN:
Part number:
Item no:
Product type
Torpedo fuse
Nominal voltage
500 V AC
Nominal current - rounded value
500 mA
Release characteristics
Time delay -T-
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Torpedo fuse
- Nominal voltage
500 V AC
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Switch-off capacity
120 kA
- Type
Ceramic fuse
- Release characteristics
Time delay -T-
- Content
1 pc(s)
- Type
E 9F10 AM05
Ceramic fuse
10x38 mm
AC
0.5 A
500 V
Other
aM (switchgear protection)
Other
120 kA
0.7 W
Documents & Downloads
Datasheet
Datasheet 3112574 Torpedo fuse 0.5 A 500 V AC Time delay -T- ABB E 9F10 AM05 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3112574 Torpedo fuse 0.5 A 500 V AC Time delay -T- ABB E 9F10 AM05 1 pc(s)
Description
E 9F on the cylinder fuses for fuse holder and circuit breaker. The cylinder fuses of the operating class AM with delayed tripping are suitable for the protection of motors with high inrush currents. The fuses are available in all common sizes (8.5 x 31.5 mm, 10.3 x 38 mm, 14 x 51 mm and 22 x 58 mm) at currents from 1 A to 125 A.
