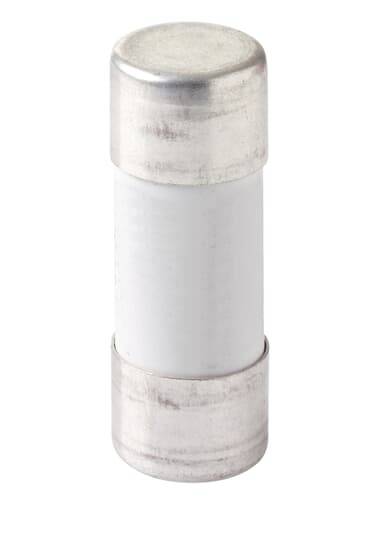

Torpedo fuse 100 A 500 V AC ABB E 9F22 AM100 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Torpedo fuse
Nominal voltage
500 V AC
Nominal current - rounded value
100 A
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Torpedo fuse
- Nominal voltage
500 V AC
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Switch-off capacity
120 kA
- Type
Ceramic fuse
- Content
1 pc(s)
- Type
E 9F22 AM100
Ceramic fuse
22x58 mm
AC
100 A
500 V
Other
aM (switchgear protection)
Other
120 kA
6.65 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112598 Torpedo fuse 100 A 500 V AC ABB E 9F22 AM100 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3112598 Torpedo fuse 100 A 500 V AC ABB E 9F22 AM100 1 pc(s) Piece
Description
E 9F on the cylinder fuses for fuse holder and circuit breaker. The cylinder fuses of the operating class AM with delayed tripping are suitable for the protection of motors with high inrush currents. The fuses are available in all common sizes (8.5 x 31.5 mm, 10.3 x 38 mm, 14 x 51 mm and 22 x 58 mm) at currents from 1 A to 125 A.
