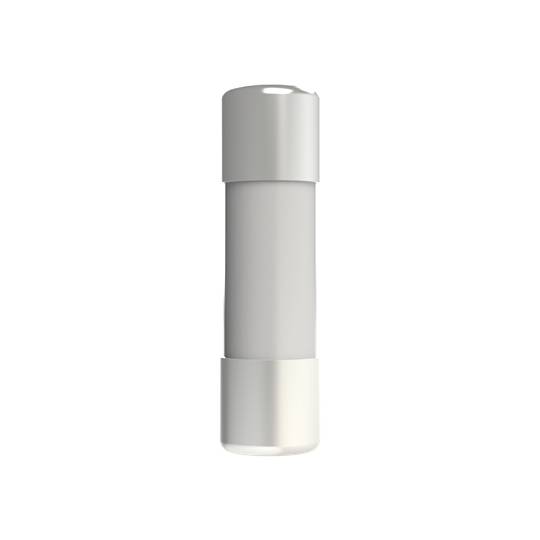

Torpedo fuse 16 A 690 V AC Time delay -T- ABB E 9F14 AM16 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Torpedo fuse
Nominal voltage
690 V AC
Nominal current - rounded value
16 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Torpedo fuse
- Nominal voltage
690 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
120 kA
- Type
Ceramic fuse
- Release characteristics
Time delay -T-
- Content
1 pc(s)
- Type
E 9F14 AM16
Ceramic fuse
14x51 mm
AC
16 A
690 V
Other
aM (switchgear protection)
Other
120 kA
1.05 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112609 Torpedo fuse 16 A 690 V AC Time delay -T- ABB E 9F14 AM16 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3112609 Torpedo fuse 16 A 690 V AC Time delay -T- ABB E 9F14 AM16 1 pc(s) Piece
Description
E 9F on the cylinder fuses for fuse holder and circuit breaker. The cylinder fuses of the operating class AM with delayed tripping are suitable for the protection of motors with high inrush currents. The fuses are available in all common sizes (8.5 x 31.5 mm, 10.3 x 38 mm, 14 x 51 mm and 22 x 58 mm) at currents from 1 A to 125 A.
