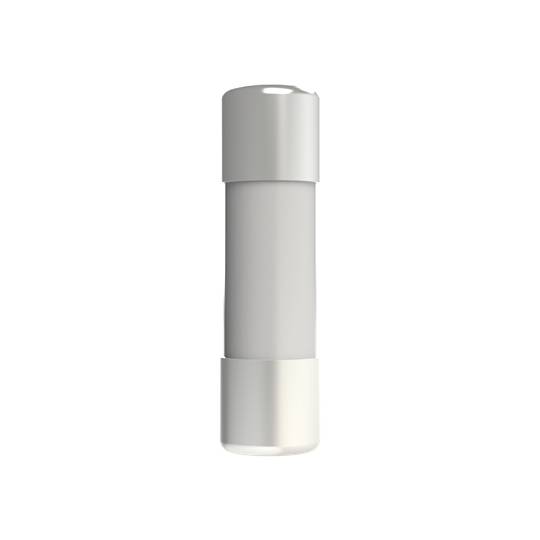

Torpedo fuse 4 A 690 V AC Time delay -T- ABB E 9F14 AM4 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Torpedo fuse
Nominal voltage
690 V AC
Nominal current - rounded value
4 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Torpedo fuse
- Nominal voltage
690 V AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Switch-off capacity
120 kA
- Type
Ceramic fuse
- Release characteristics
Time delay -T-
- Content
1 pc(s)
- Type
E 9F14 AM4
Ceramic fuse
14x51 mm
AC
4 A
690 V
Other
aM (switchgear protection)
Other
120 kA
0.28 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112587 Torpedo fuse 4 A 690 V AC Time delay -T- ABB E 9F14 AM4 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3112587 Torpedo fuse 4 A 690 V AC Time delay -T- ABB E 9F14 AM4 1 pc(s) Piece
Description
E 9F on the cylinder fuses for fuse holder and circuit breaker. The cylinder fuses of the operating class AM with delayed tripping are suitable for the protection of motors with high inrush currents. The fuses are available in all common sizes (8.5 x 31.5 mm, 10.3 x 38 mm, 14 x 51 mm and 22 x 58 mm) at currents from 1 A to 125 A.
