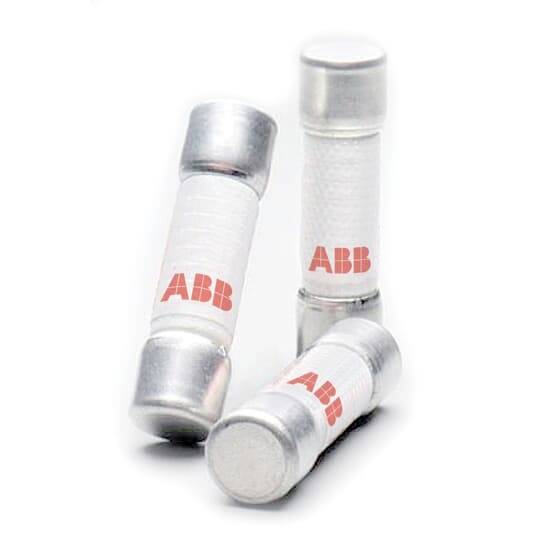

Torpedo fuse (Ø x L) 10 mm x 85 mm 12 A 1500 V DC ABB E9F12 PV1500 1 pc(s)
EAN:
Part number:
Item no:
Product type
Torpedo fuse
Nominal voltage
1500 V DC
Nominal current - rounded value
12 A
Length
85 mm
(Ø)
10 mm
Datasheet (PDF)
Technical specifications
- Product type
Torpedo fuse
- Nominal voltage
1500 V DC
- Dim
(Ø x L) 10 mm x 85 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Switch-off capacity
50 kA
- Type
Ceramic fuse
- Length
85 mm
- (Ø)
10 mm
- Content
1 pc(s)
- Type
E9F12 PV1500
Ceramic fuse
10x38 mm
DC
12 A
1500 V
Other
Other
Other
50 kA
2.89 W
Documents & Downloads
Datasheet
Datasheet 3112519 Torpedo fuse (Ø x L) 10 mm x 85 mm 12 A 1500 V DC ABB E9F12 PV1500 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3112519 Torpedo fuse (Ø x L) 10 mm x 85 mm 12 A 1500 V DC ABB E9F12 PV1500 1 pc(s)
Description
The E 9F PV series of cylindrical fuses has been specially designed for protection of DC circuits up to 1500 V. These fuses are the best way to protect photovoltaic systems. The fuses E 9F PV are available in the size 10.3 x 38 mm for up to 30 A nominal current at rated voltage 1000 V DC or in the size 10 x 85 mm to 32 A nominal current at rated voltage 1500 V DC.
