TowiTek RFID access control 12 V DC, 9 V AC, 12 V AC
EAN:
Part number:
Item no:
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
Highlights & Details
RFID-Zugangskontrolle
- High reader rangeCan learn up to 50 ID cards.Change or time function can be configured
Technical specifications
- Dim
(L x W x H) 50 x 51 x 20 mm
- Height
20 mm
- Length
50 mm
- Width
51 mm
- Operating voltage
12 V DC
9 V AC
12 V AC
- Product type
RFID access control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2564474 TowiTek RFID access control 12 V DC, 9 V AC, 12 V AC
Conformity certificate
Conformity certificate 2564474 TowiTek RFID access control 12 V DC, 9 V AC, 12 V AC
Description

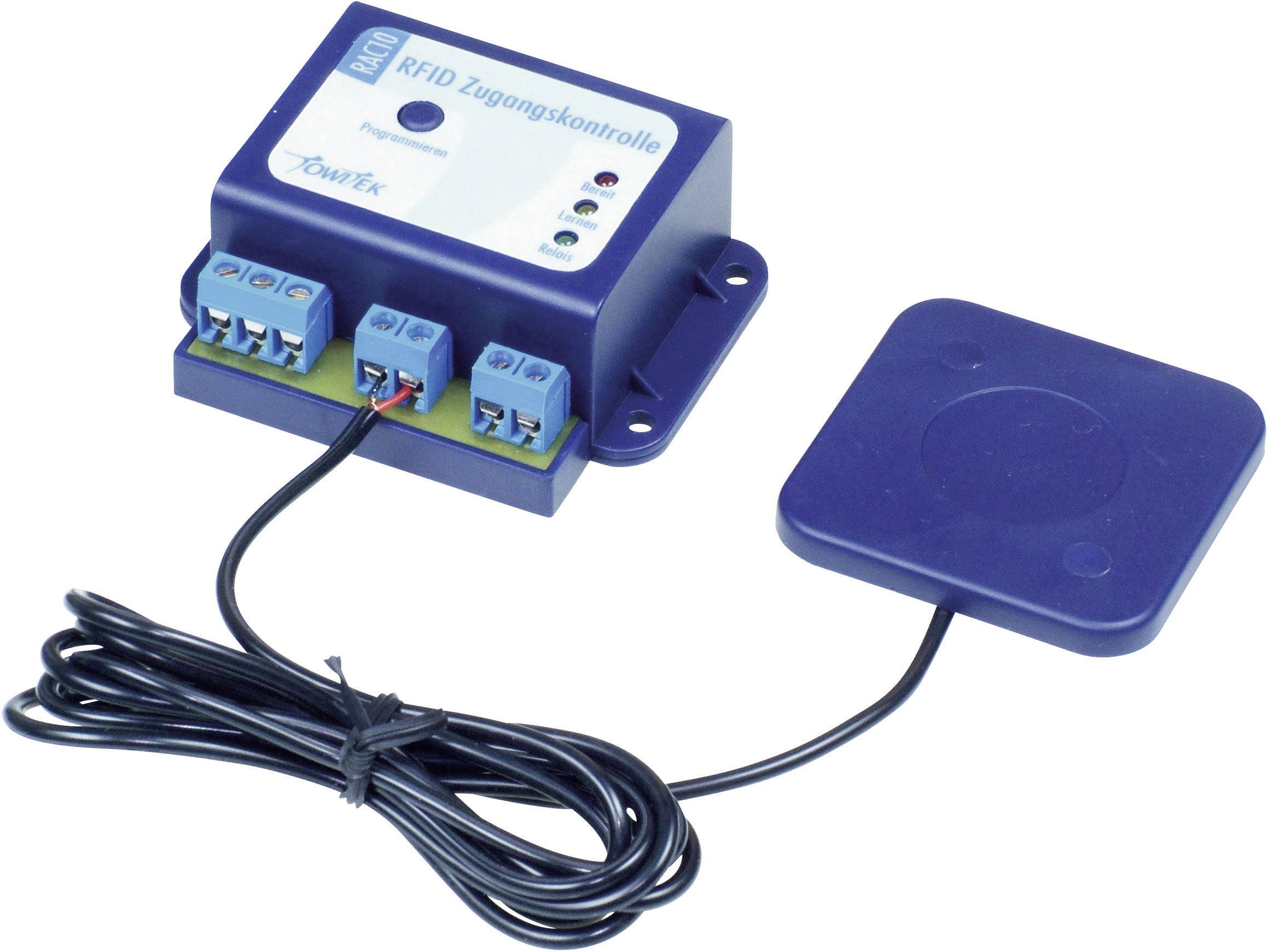

Compact component for an independent access control system with RFID-transponders as proof of authority. The system learns up to 50 identifications and can be controlled in a simpe way via a programming card. The switch contact can be configured to change or time function. The transponders used are copy-protected and offer a much higher security than similar systems. The reading range is around 20 – 50 mm.
This text is machine translated.
This text is machine translated.

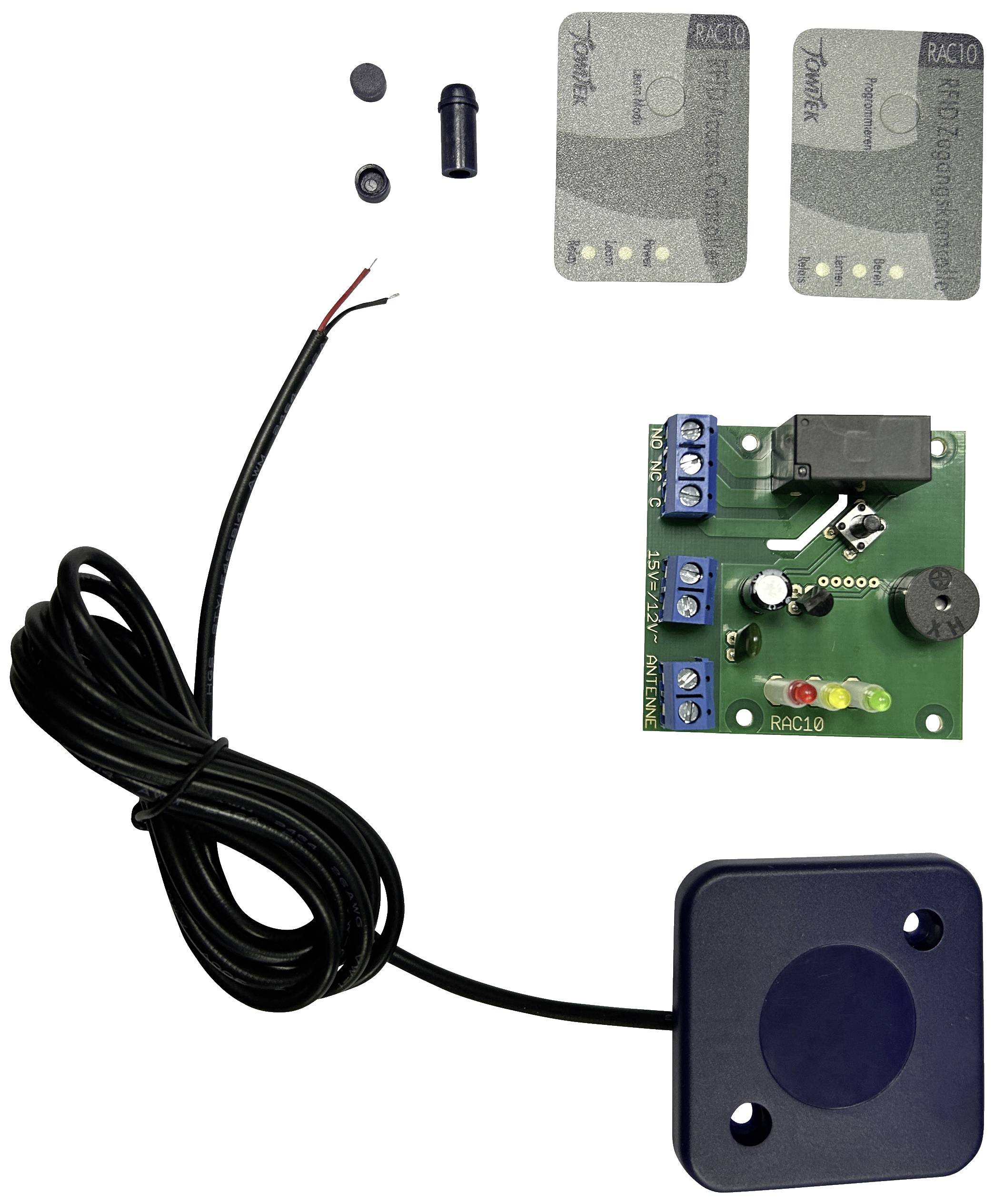

Scope of delivery
- Antenna (dim. 50 x 50 x 5 mm) with 1.5 m connection cable
- Front plate films (German/English) for optional housing (Order No. No.: 1840878, 2564480).
Hints
The housing is not included in the delivery. Please order this separately.
