TowiTek Wireless control system incl. remote control Max. range (open field): 50 m 12 V DC
EAN:
Part number:
Item no:
Number
Total (€ 43.69 / piece)
€ 50.41
-13 %
€ 43.69
plus VAT.
Technical specifications
- OUTPUT POWER 250 V/AC/5 A.
- Dim. (L x B x H): 58 x 30 x 17 mm
- Product type
Wireless control system
- Features
incl. remote control
- Type
TWT2005
- Operating voltage
12 V DC
- Channels
2
- Max. current consumption
40 mA
50 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2564482 TowiTek Wireless control system incl. remote control Max. range (open field): 50 m 12 V DC

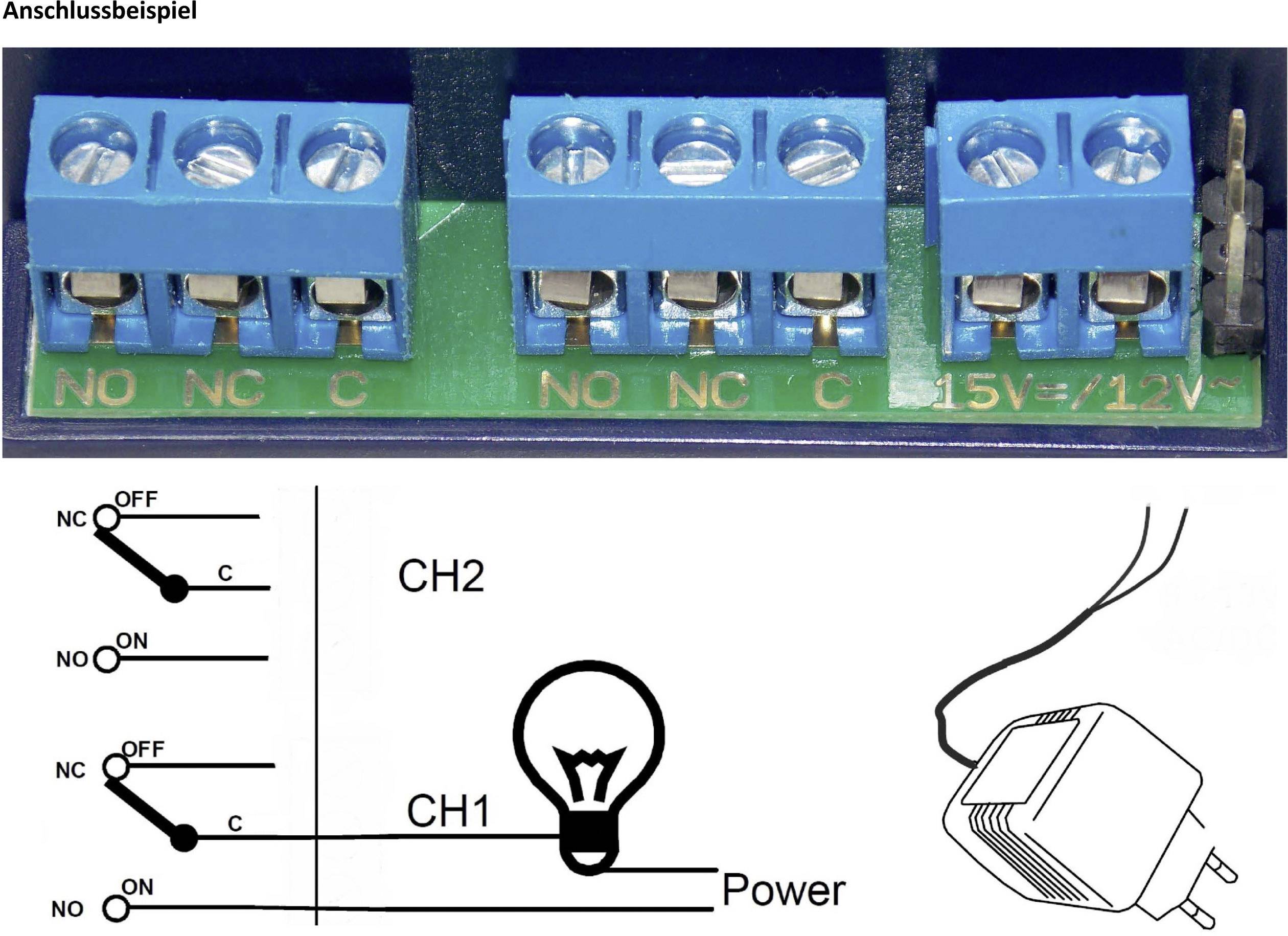

Circuit diagramm
Circuit diagramm 2564482 TowiTek Wireless control system incl. remote control Max. range (open field): 50 m 12 V DC
Description
Compact receiver module in the module casing with 2 relay change-over contact having a high load carrying capacity. Can learn up to 50 hand-held transmitter codes. Versatile programming options for change or time function (1 s - 1 h).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2-channel receiver module including housing with mounting brackets for DIN rail
- hand transmitters
- Battery type 27 A
