Buy Toxic substance meter PCE Instruments PCE-SLT-TRM-24V SPL

Industrial gas detector module with attached probe sensor and cable on a white background.

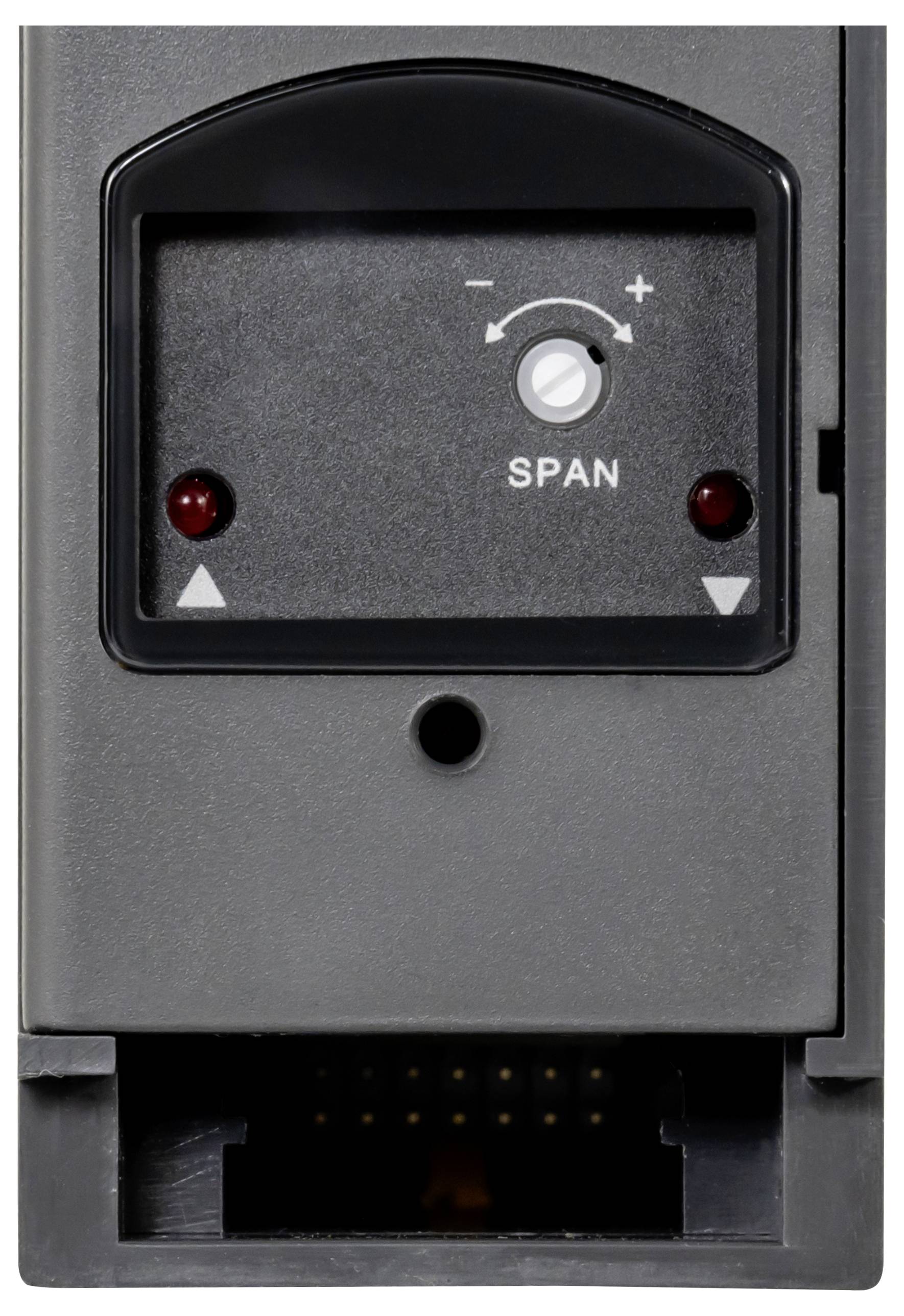

Close-up of a device control panel with a 'SPAN' adjustment knob marked minus to plus, two red indicator lights, and a connector port below.

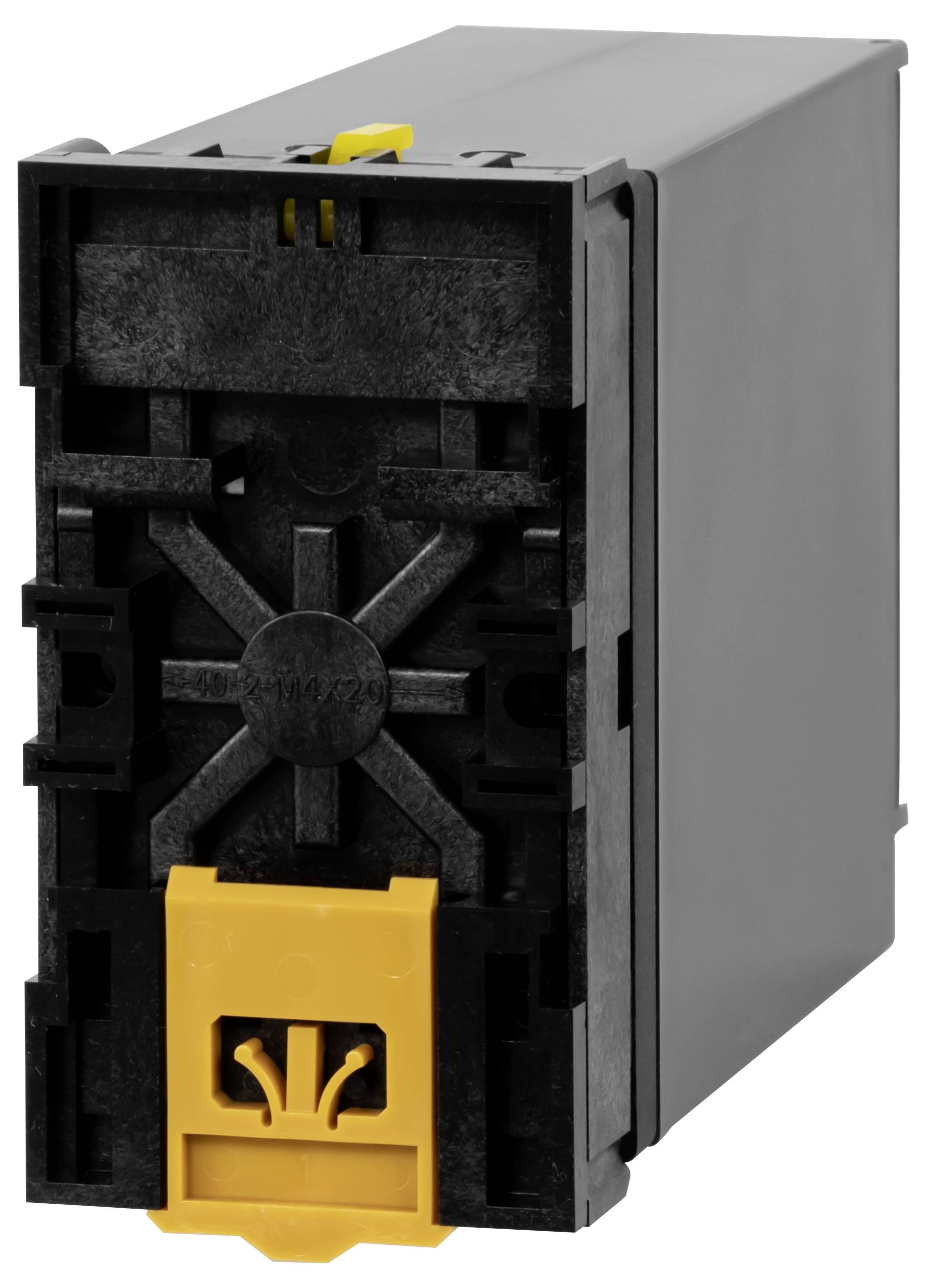

A gray electronic module or relay with a black front panel and yellow connector latch, shown against a white background.

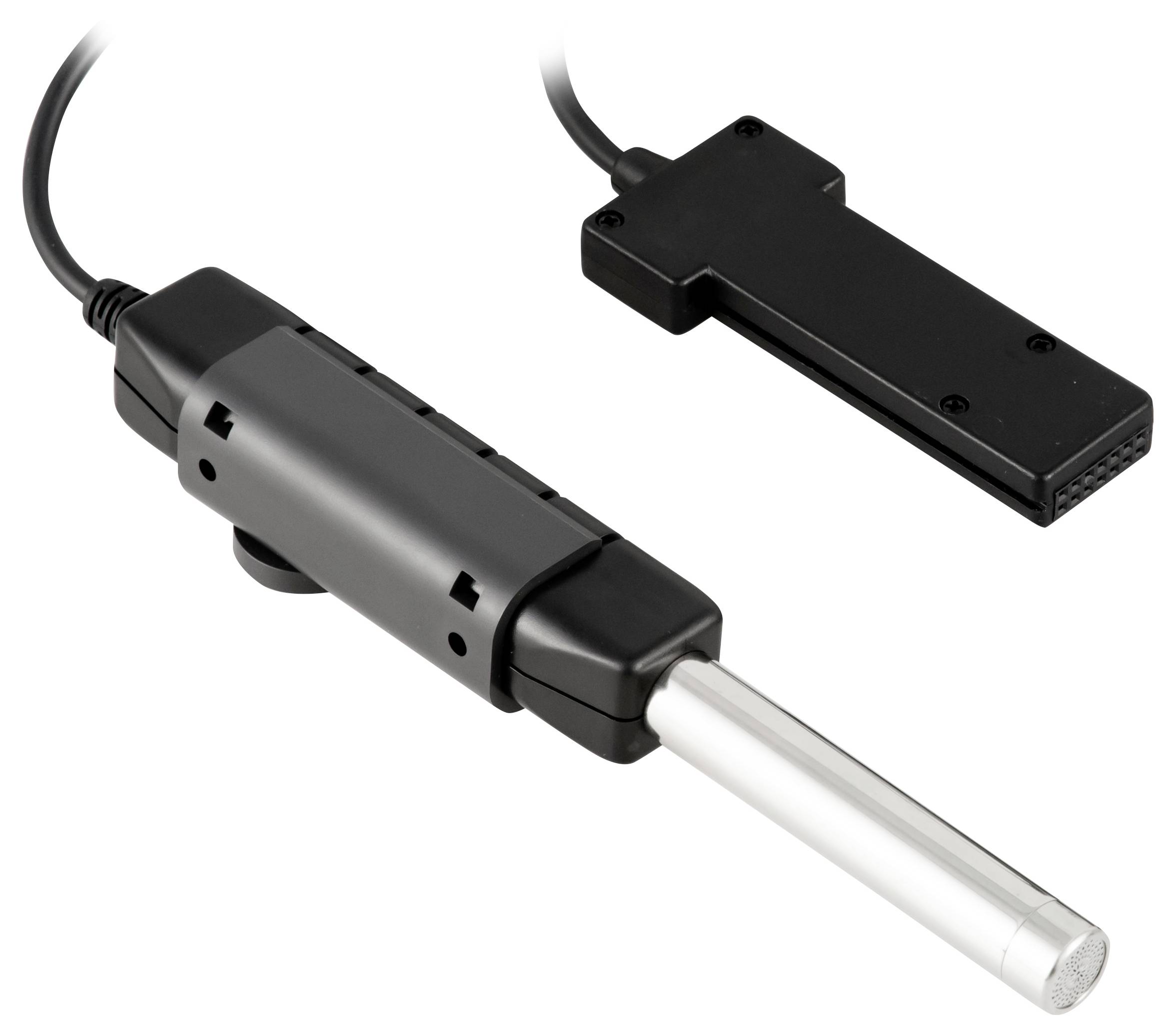

Two black wired electronic probes: one cylindrical sensor with a clear tip and one flat rectangular probe on a white background.

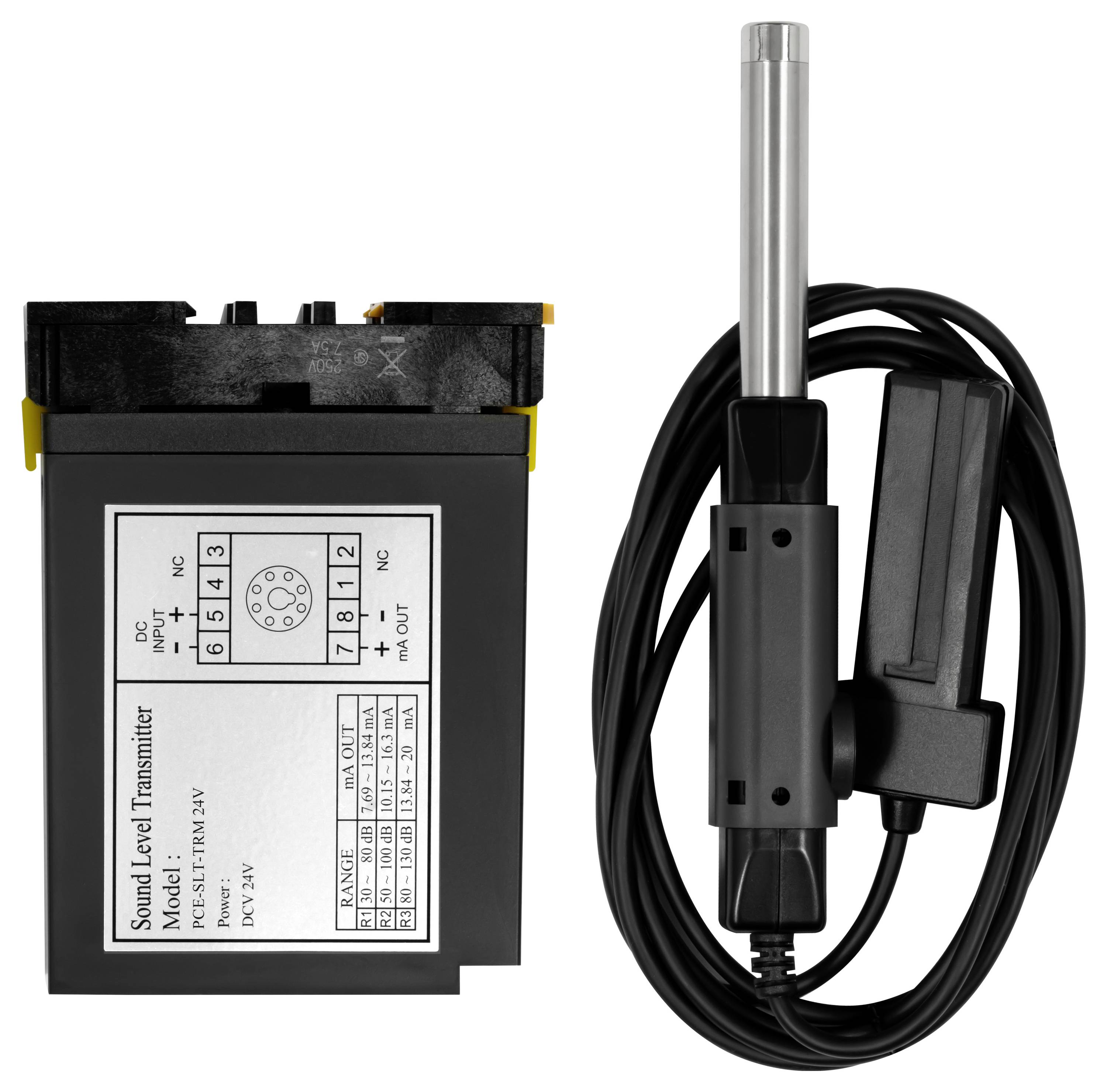

A sound level transmitter and its probe with coiled cable, shown as a product image on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Audio sensor Measuring range 30 ... 130 dB in three ranges I. 30...80 dB(A) II. 50...100 dB(A) III. 80...130 dB(A) Resolution 0.1 dB Accuracy ±1.5 dB Rating A. Supply via transmitter Cable length: 1.5 m Wall bracket for screwing on (included in delivery) Environmental conditions Max. 85 % relative humidity / 0 ... +50 °C Microphone 1/2 " Precision-Electret-Microphone Standard IEC 61672 class II transmitter Housing ABS-plasticSupply 24 V DC power consumption approx. 31 ... 47 mA Calibration can be set via grub screw Output 4 ... 20 mA Protection Class IP 54 . Ambient conditions max. 85 % relative humidity / 0 ... +50 °C

Product type: Toxic substance meter

Unit of measurement: SPL

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452648 Toxic substance meter PCE Instruments PCE-SLT-TRM-24V SPL

User & Safety Instructions

User & Safety Instructions 2452648 Toxic substance meter PCE Instruments PCE-SLT-TRM-24V SPL

Description

Sound warning system / Sound warning device for fixed installation with analogue output 4 ... 20 mA the sound warning system consists of a measuring microphone with handle and a wall bracket on 1.5 m cable, a sound transmitter. The main area of application of this sound warning system is the continuous sound measurement and sound monitoring of factory halls, production rooms and at large events (discotheques, folk festivals, cart tracks...). The analogue output signal can also be used to control window flaps ... or the transmitter signals can be stored, evaluated and documented on a logger. The sound warning device is very easy to connect and can be operated via 24 V DC.

This text is machine translated.

Scope of delivery

1 x PPCE-SLT-TRM-24V sound transducer
1 x sound sensor at 1.5 m cable
1 x sound transmitter
1 x sensor holder for screwing on
1x user manual
