Buy TP-LINK EAP230-WALL Omada AC1200 WLAN MU-MIMO Wi-Fi access point 2.4 GHz, 5 GHz

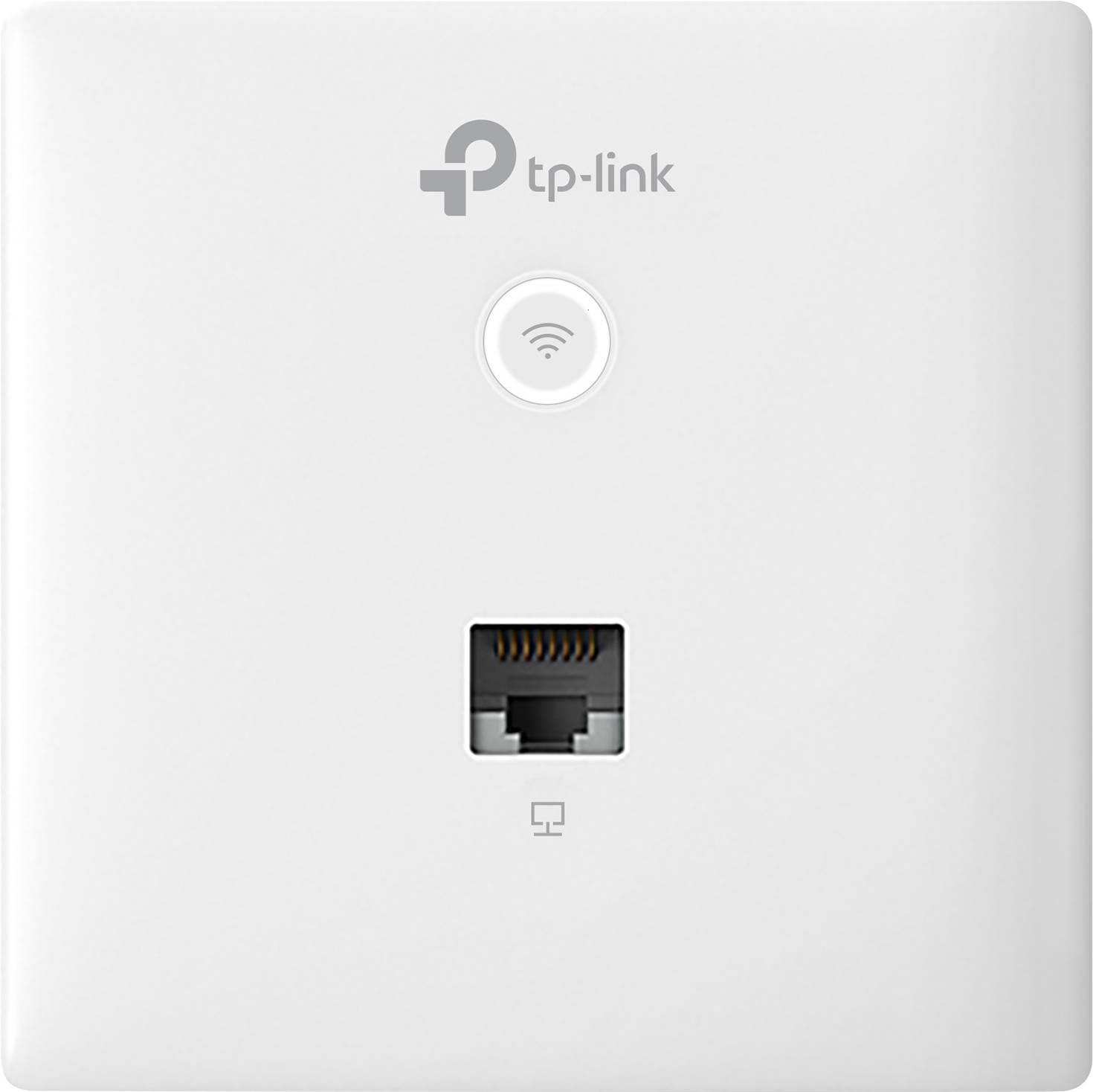

'TP-Link Network Wall Socket with Ethernet Port and Wi-Fi Symbol.'

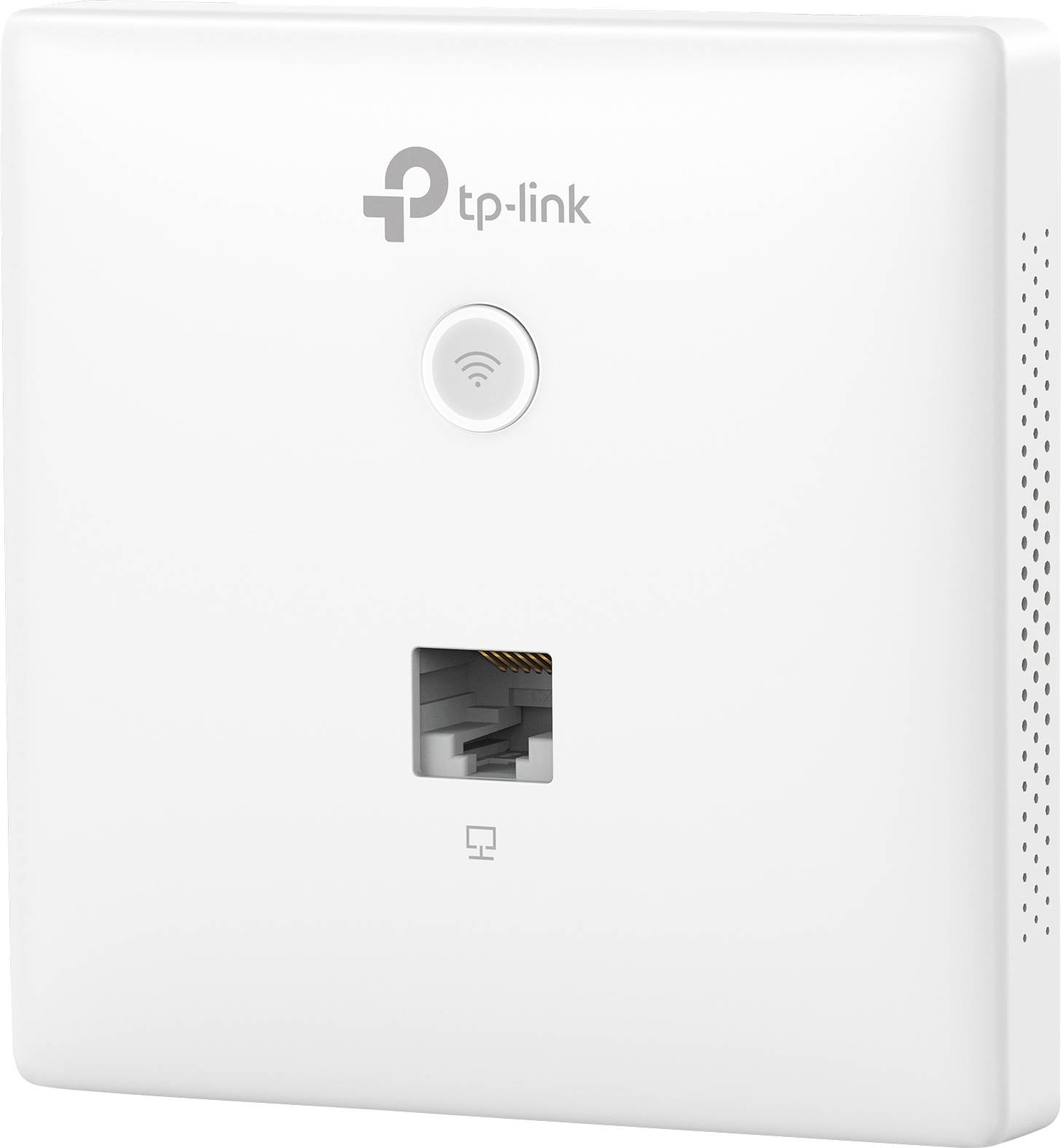

Wall-mounted TP-Link network socket with Wi-Fi button and Ethernet port, for internet connection in offices or at home.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ultra slim design with only 11mm

Highlights & Details

Fast dual-band WLAN: Simultaneous 300 Mbit/s in 2.4 GHz and 867 Mbit/s in 5 GHz sums up to 1.167 Mbit/s WLAN speed with MU-MIMO.†
Gigabit ports: 2 Gigabit network connections (1× uplink + 1× downlink).
Integrated with Omada SDN: Zero-Touch Provisioning (ZTP)‡, centralized cloud management, and intelligent network monitoring.
Centralized management: Cloud access and Omada app for ultra-convenient and easy management.
Each room has its own connection: Designed to meet every requirement of network environments with a variety of separate rooms such as hotels, offices and homes.
Elegant design: An unprecedented thin design with only 11 mm depth and the same size and shape as a light switch or a socket cover fits perfectly in every room.
Easy installation and PoE support: A special design for easy installation, compatible with 86 mm & standard EU sockets and 802.3af/at PoE support.
Secured guest network: Multiple authentication options (SMS/Facebook WLAN/voucher, etc.) and extensive WLAN security technologies.

Technical specifications

Product type: Wi-Fi access point

Type: Omada AC1200 WLAN MU-MIMO

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi frequency band: 2.4 GHz
5 GHz

Wi-Fi speed 2.4 GHz: 300 MBit/s

Wi-Fi speed 5 GHz: 867 MBit/s

LAN data transfer rate: 10 / 100 / 1000 MBit/s

Interfaces: Gigabit LAN (1 Gbps)
Wi-Fi 5 (IEEE 802.11ac)

No. of Gigabit LANs: 2 x

Width: 143 mm

Height: 19.7 mm

Depth: 86 mm

PoE: IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)

Weight: 262.00

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2368571 TP-LINK EAP230-WALL Omada AC1200 WLAN MU-MIMO Wi-Fi access point 2.4 GHz, 5 GHz

Description

All your network requirements in different environments are covered with EAP230 wall, either in offices or hotels with different separate rooms. An exclusively fast WLAN connection is available to any connected device in the room.
