Buy TP-LINK EAP620 HD AX1800-Wi-Fi 6-Dualband-Accesspoint Wi-Fi access point 2.4 GHz, 5 GHz

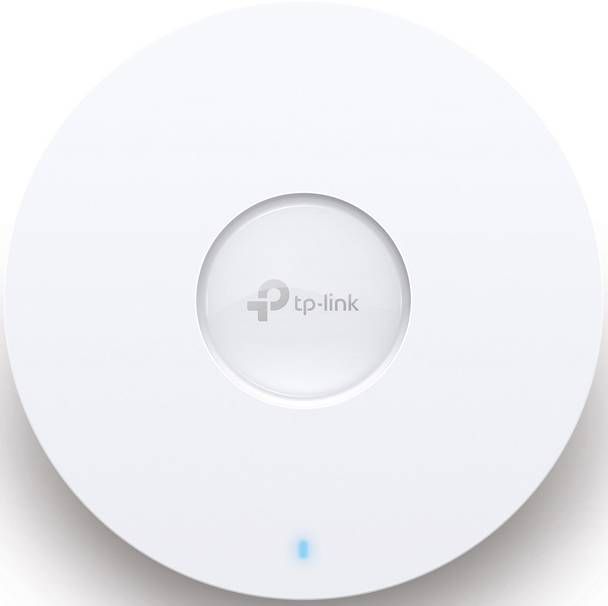

Round, white TP-Link Wi-Fi access point with blue LED light on the underside.

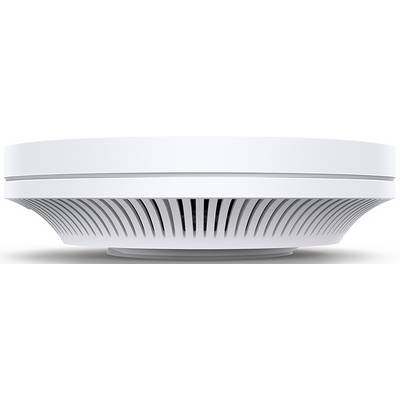

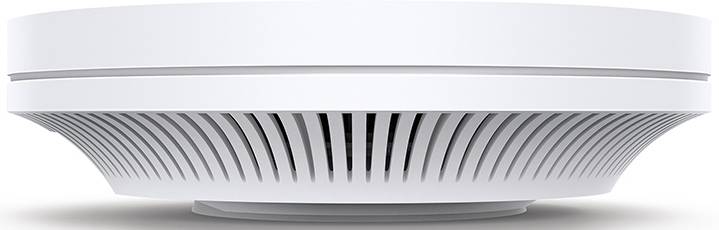

A modern, white smoke detector, circular and flat, with ventilation slots on the underside, against a white background.

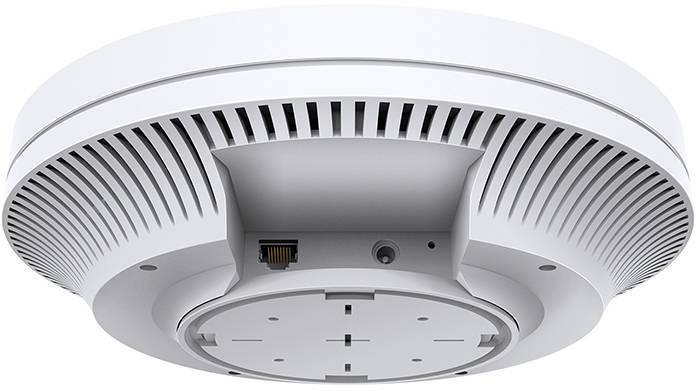

White Wi-Fi access point with circular design, ventilation slots, and Ethernet connection; mountable on walls or ceilings.

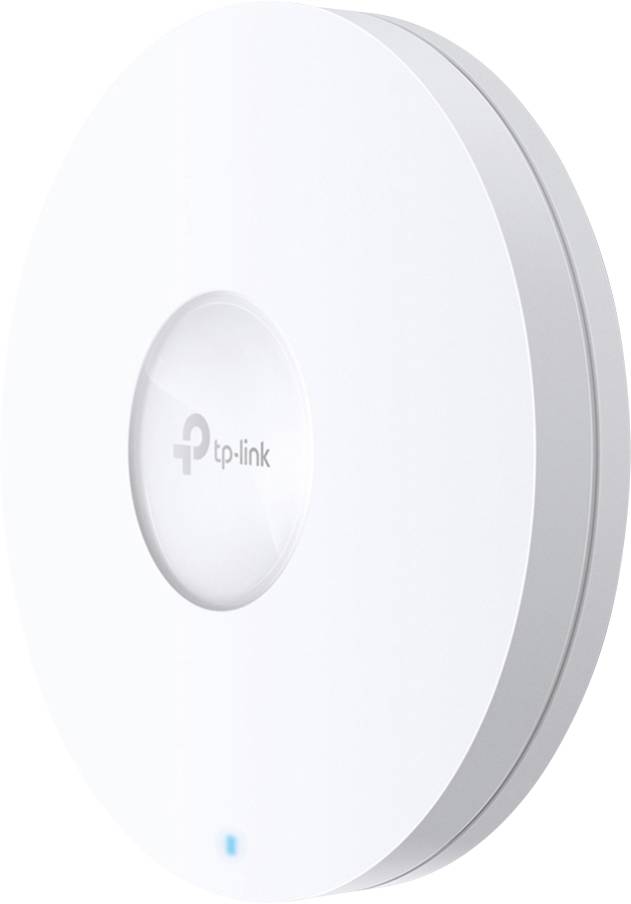

White TP-Link access point in a round shape with blue LED light on the underside.

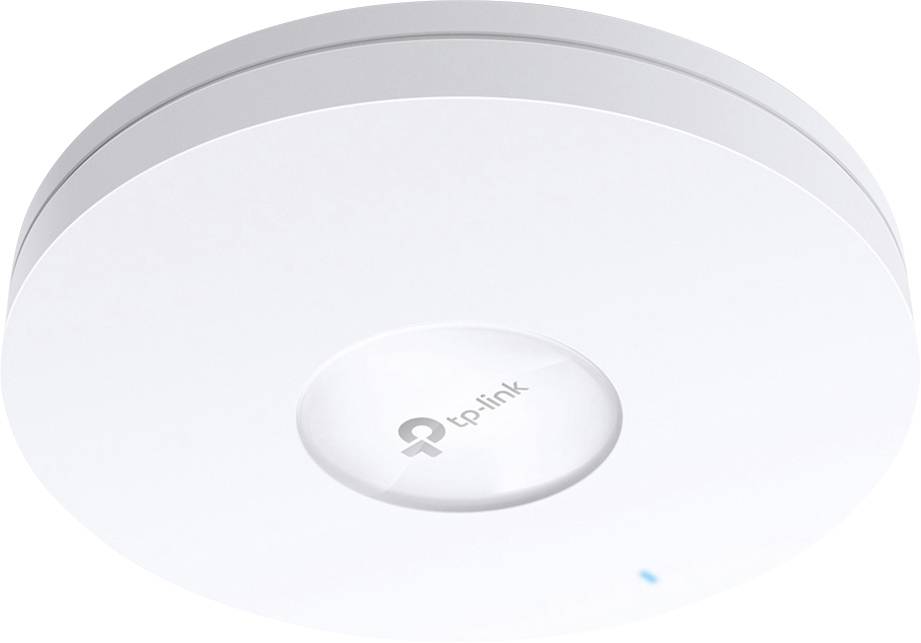

A white, round TP-Link Wi-Fi access point with a small blue status light, suitable for ceiling mounting.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

High-performance AX1800 WLAN for high-density WLAN environments

Highlights & Details

Ultra-fast Wi-Fi 6 speeds: Simultaneous 574 Mbit/s in 2.4 GHz and 1201 Mbit/s in 5 GHz WLAN results in a total bandwidth of 1775 Mbit/s in WLAN.
Strong connection at high terminal densities: 4× increased capacity for simultaneous connection of terminal devices.
Integrated with Omada SDN: Zero-Touch Provisioning (ZTP)§, centralized cloud management, and intelligent network monitoring.
Centralized management: Cloud access and the omad app enable very simple and convenient setup and management.
1GE network connection: The 1Gbit/s network connection at the access point enables the complete WLAN bandwidth to be passed on to the network, without the access point creating a bottleneck.
Seamless WLAN roaming: Even video and voice chats do not feel a change between access points while moving.
PoE+ support: Supply with practical PoE according to IEEE802.3at enables a simple, flexible installation.
Secure Guest Network: Various authentication methods, such as SMS, Facebook, voucher and user authentication, a variety of WLAN security features and the new WPA3 security offer the highest security.

Technical specifications

Product type: Wi-Fi access point

Type: AX1800-Wi-Fi 6-Dualband-Accesspoint

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi standard: IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.11a
IEEE802.11ac
IEEE802.11ax

Wi-Fi frequency band: 2.4 GHz
5 GHz

Wi-Fi speed 2.4 GHz: 574 MBit/s

Wi-Fi speed 5 GHz: 1201 MBit/s

LAN data transfer rate: 10 / 100 / 1000 MBit/s

Interfaces: Gigabit LAN (1 Gbps)
Wi-Fi 6 (IEEE 802.11ax)

No. of Gigabit LANs: 1 x

Power supply (LOV): mains-powered

Width: 243 mm

Height: 64 mm

Depth: 243 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2368576 TP-LINK EAP620 HD AX1800-Wi-Fi 6-Dualband-Accesspoint Wi-Fi access point 2.4 GHz, 5 GHz

User & Safety Instructions

User & Safety Instructions 2368576 TP-LINK EAP620 HD AX1800-Wi-Fi 6-Dualband-Accesspoint Wi-Fi access point 2.4 GHz, 5 GHz

Description

The new WiFi 6 features OFDMA and MU-MIMO for upload and download increase the capacity of your WLAN network by 4 times as much as Wi-Fi 5 (802.11ac) in high density environments, allowing more devices to connect at the same time‡. Take advantage of the performance advantage of simultaneous WLAN use or high density terminal equipment and experience a network edge for professional networks like never before.
