Buy TP-LINK EAP625GP-WALL Omada EAP625GP-Wall V1 Single Wi-Fi access point 2.4 GHz, 5 GHz

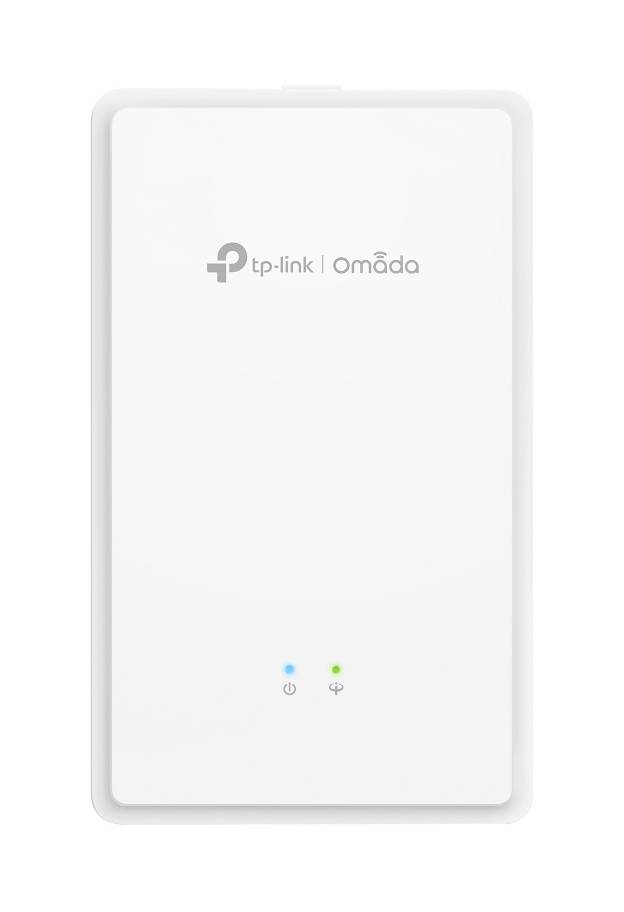

White TP-Link Omada wireless access point with two status lights near the bottom.

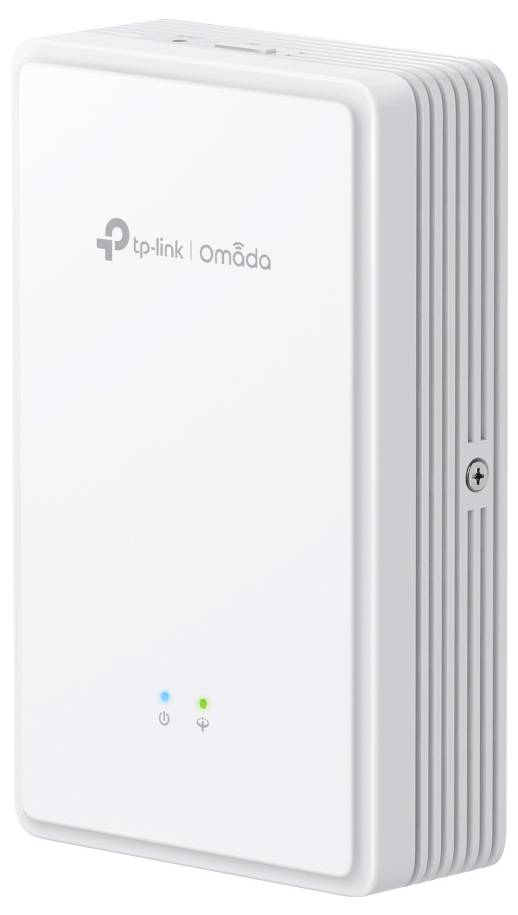

White TP-Link Omada network access point with two status lights on the front<br>

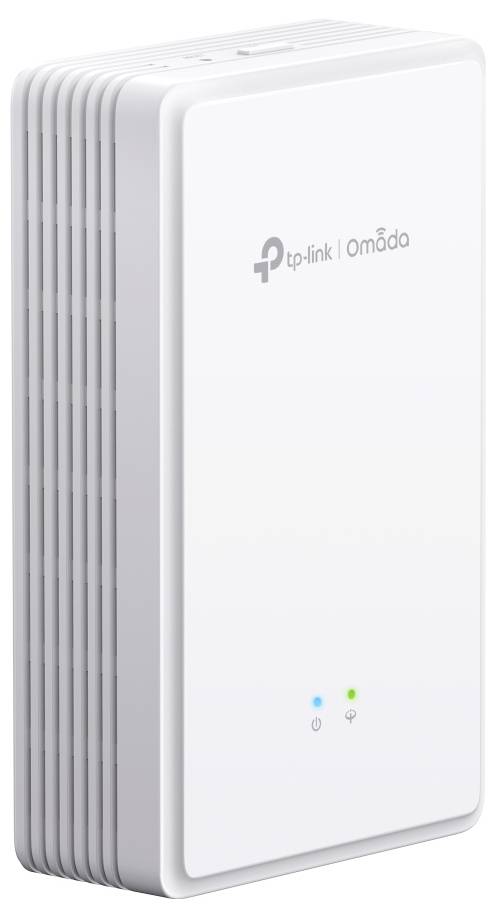

White TP-Link Omada network device with stacked side fins and two status indicator lights on the front.

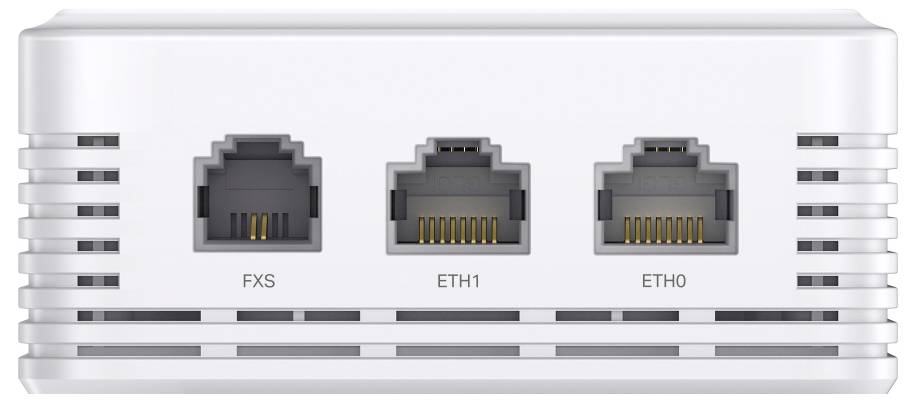

Back view of a white networking device with three ports labeled 'FXS', 'ETH1', and 'ETH0' and ventilation slots on both sides.

Mounted electrical smart meter module with QR code, warning symbol, and terminal block inside a metal enclosure.<br>

White TP-Link Omada network device with four Ethernet ports and status lights, shown in a product-style angle.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada EAP625GP WALL WLAN access Point 1201 Mbit/s white Power over Ethernet (PoE)

2.4 GHz
5 GHz
Maximum data transfer rate of 1201 Mbps
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
WPA, WPA2, WPA2
Power over Ethernet (PoE)

Technical specifications

Maximum data transfer rate of 1201 Mbit/s.
2.4 - 5 GHz

Product type: Wi-Fi access point

Type: Omada EAP625GP-Wall V1

Kit: Single

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi frequency band: 2.4 GHz
5 GHz

Safety: WPA
WPA2
WPA2

Width: 143 mm

Height: 44.6 mm

Depth: 86 mm

Factory colour: White

10/100/1000 Mbps ports: 2 x

Power supply (details): 100 - 240 V

Weight: 350 g

UKCA: not relevant

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 90 %

Number of users: 120 Benutzer

2.4 GHz: yes

5 GHz: yes

Number of SSID supported: 16

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Band steering: yes

Airtime Fairness (ATF): yes

Web-based management: yes

Rate limiting: yes

Reset button: yes

6 GHz: no

: 50 m²

: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799848 TP-LINK EAP625GP-WALL Omada EAP625GP-Wall V1 Single Wi-Fi access point 2.4 GHz, 5 GHz

Description

Complete Omada solution for optical networks

The Omada optical network solution delivers enterprise-quality GPON. It seamlessly integrates important components such as omada switches, gateways, OLTs (optical line terminals) and ONUs (optical network units) – Ideal for Point-to-multipoint (PMP) environments such as hotels and multi-family homes.

One fiber, multiple services

Connect a fiber to the EAP625GP Wall to connect cameras, PCs, and TVs to provide data, voice, wired and wireless Internet, HD video, and VoIP services.

Seamless Wi-Fi 6 mesh networks

Use the GPON Wi-Fi 6 technology for a robust and seamless network experience with speeds of up to 1.8 Gbit/s.
Omada Mesh and 802.11k/v Roaming ensure consistently stable and reliable connection.

This text is machine translated.

Features

Seamless Wi-Fi 6 speeds of 1.8 Gbps: 1201 Mbps at 5 GHz and 574 Mbps at 2.4 GHz
Multiple ports: 1× high-speed, long-range GPON port and 2× Gigabit RJ45 ports (one supports 802.3af PoE Out) for flexible deployments
One fiber for multiple services: Wired, wireless, voice, VoIP, data, and HD video services
VoIP calls: Support for multiple VoIP accounts and different call features that exceed traditional landline connections
Easy to use: One-click pairing and automatic linking
Advanced features: Unified management for OLT and Omada devices, Omada mesh, and seamless roaming with 802.11k/v/r.
