Buy TP-LINK EAP725-OUTDOOR Omada EAP725-Outdoor V1 Single Wi-Fi access point 2.4 GHz, 5 GHz

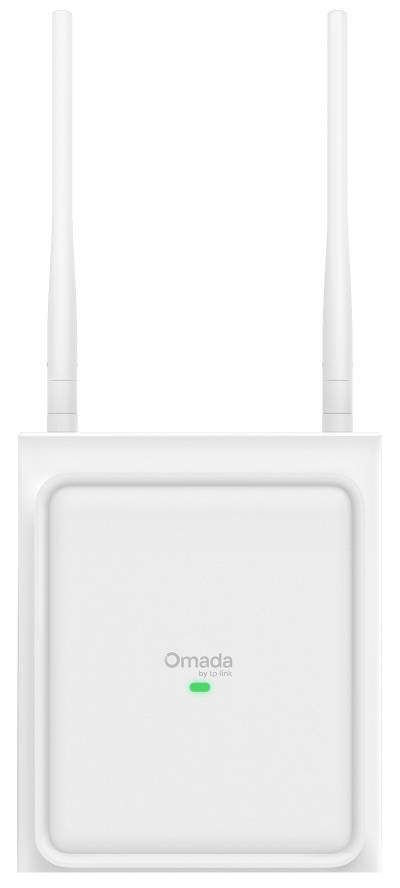

White TP-Link Omada wireless access point with two antennas and a small green status light on the front.

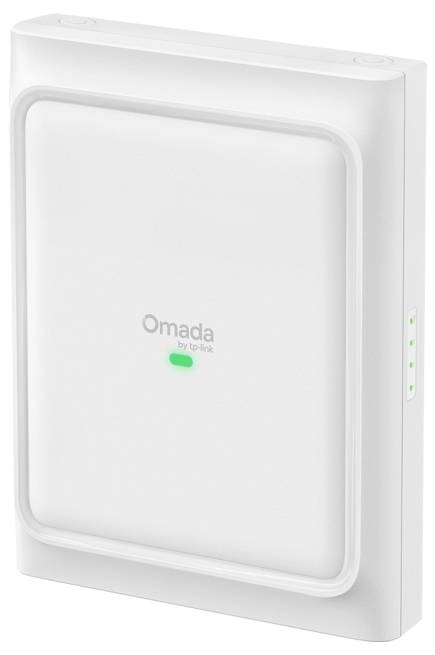

White TP-Link Omada wireless access point with a glowing green status light on the front<br>

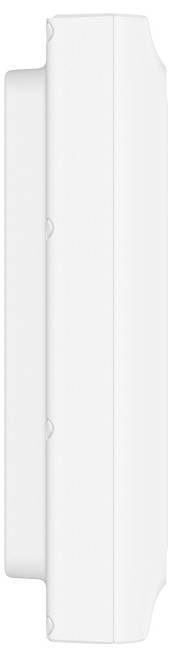

White rectangular wall-mounted device, likely a door or window sensor, shown front view on a plain background.

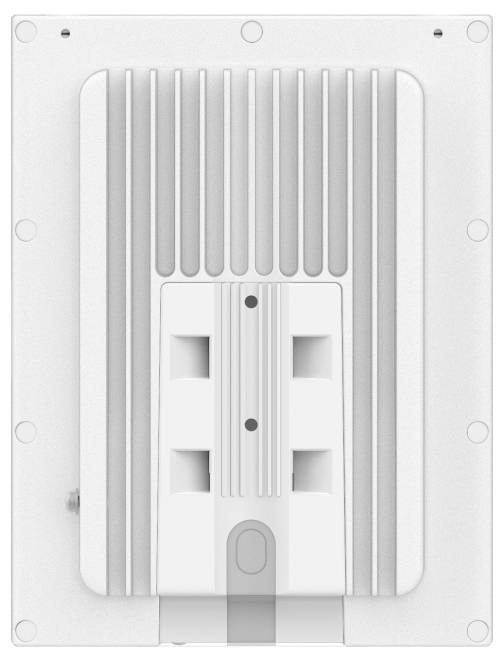

White wall-mounted electrical device or access panel with ribbed center section and four corner screw points, shown front view.

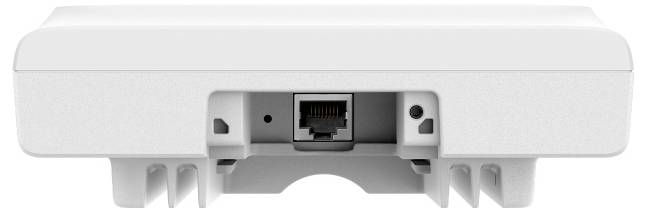

Close-up of a white network access point or router showing the rear Ethernet port and mounting bracket slots.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

TP-LINK Omada EAP725 outdoor 5000 Mbit/s white Power over Ethernet (PoE)

Highlights & Details

2.4 GHz 688 Mbit/s
5 GHz 4324 Mbit/s
Maximum data transfer rate of 5000 Mbps
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
OWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA2-Personal
Power over Ethernet (PoE)
Number of antennas: 8 internal & external
This text is machine translated.

Technical specifications

Maximum data transfer rate of 5000 Mbit/s.
Maximum data transfer rate (2.4 GHz): 688 Mbit/s.
Maximum data transfer rate (5 GHz): 4324 Mbit/s.

Product type: Wi-Fi access point

Type: Omada EAP725-Outdoor V1

Kit: Single

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi frequency band: 2.4 GHz
5 GHz

Safety: OWE
SNMP
SNMPv2
SNMPv3
SSH
WPA-Enterprise
WPA-Personal
WPA2-Enterprise
WPA2-Personal
WPA2-Enterprise
WPA2-Personal
Show more

Power supply (LOV): Power over Ethernet (PoE)

Width: 208 mm

Height: 55 mm

Depth: 160 mm

Bluetooth: 5.2

Bluetooth: Yes

Factory colour: White

: IP66

No. of antennas: 8 x

10/100/1000 Mbps ports: 1 x

Gain: 13.2 dBi

Weight: 1.33 kg

UKCA: yes

Operating temperature (T-T): -30 - 70 °C

Storage relative humidity (H-H): 5 - 90 %

Quantity per pack: 1 Stück(e)

2.4 GHz: yes

5 GHz: yes

Wireless isolation: yes

Wi-Fi Multimedia (WMM)/(WME): yes

Number of SSID supported: 16

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Band steering: yes

Web-based management: yes

Rate limiting: yes

Reset button: yes

Cloud-managed: yes

Bluetooth Low Energy (BLE): yes

BeamForming: yes

Schedule access: yes

6 GHz: no

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Syslog: yes

Storage temperature (T-T): -40 - 70 °C

Mounting kit: yes

Power consumption (max): 18.4 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799915 TP-LINK EAP725-OUTDOOR Omada EAP725-Outdoor V1 Single Wi-Fi access point 2.4 GHz, 5 GHz

Description

Features

Directional and omnidirectional antennas: Free switching between modes via software for optimal signal control
Plug & Play Auto Sensing antennas: Automatically detects antenna changes and switches between internal and external antennas as required
4-Stream Dual-Band Wi-Fi 7: Up to 5.0 Gbit/s.
1× 2.5G PoE Port: Flexible PoE deployment reduces costs by transferring power and data over a single Ethernet cable
Designed for outdoor use: With IP66-certified, weatherproof housing and 6 kV lightning protection
Quick and easy setup: Supports wall and mast mounting with Omada SDN for one-click setup
Advanced features: Centralized management, mesh, and seamless roaming
