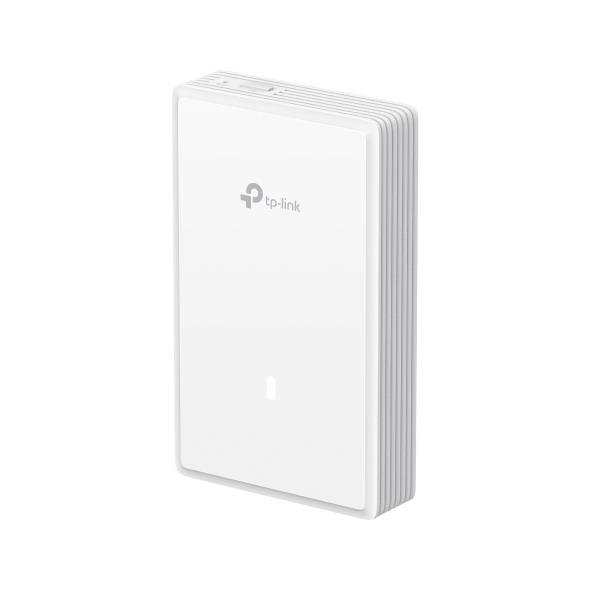

TP-LINK EAP725-WALL Omada EAP725-Wall V1 Single Wi-Fi access point 2.4 GHz, 5 GHz
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK Omada EAP725-Wall 5012 Mbit/s white Power over Ethernet (PoE)
- 2.4 GHz 688 Mbit/s
- 5 GHz 2882 Mbit/s
- Maximum data transfer rate of 5012 Mbps
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA2-Personal
- Power over Ethernet (PoE)
- Number of antennas: 4 internal
Technical specifications
- Maximum data transfer rate of 5012 Mbit/s.
- Maximum data transfer rate (2.4 GHz): 688 Mbit/s.
- Maximum data transfer rate (5 GHz): 2882 Mbit/s.
- Product type
Wi-Fi access point
- Type
Omada EAP725-Wall V1
- Kit
Single
- Dual Band compatibility
2.4 GHz and 5 GHz
- Wi-Fi frequency band
2.4 GHz
5 GHz
- Safety
WPA-Enterprise
WPA-Personal
WPA2-Enterprise
WPA2-Personal
WPA2-Enterprise
WPA2-Personal
- Power supply (LOV)
Power over Ethernet (PoE)
- Width
86 mm
- Height
143 mm
- Depth
40 mm
- Factory colour
White
- No. of antennas
4 x
- 10/100/1000 Mbps ports
3 x
- Gain
5 dBi
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Storage relative humidity (H-H)
5 - 90 %
- Number of users
250 Benutzer
- Quantity per pack
1 Stück(e)
- 2.4 GHz
yes
- 5 GHz
yes
- Number of SSID supported
16
- Power over Ethernet (PoE)
yes
- MAC address filtering
yes
- Airtime Fairness (ATF)
yes
- Access Control List (ACL)
yes
- Reset button
yes
- Remote Authentication Dial-In User Service (RADIUS)
yes
- BeamForming
yes
- 6 GHz
no
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- Storage temperature (T-T)
-40 - 70 °C
- Mounting kit
yes
- Power consumption (max)
17 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799860 TP-LINK EAP725-WALL Omada EAP725-Wall V1 Single Wi-Fi access point 2.4 GHz, 5 GHz
Description
BE3600 Wi-Fi 7 wall
Plate access Point for
Ultra-fast connectivity
Optimized wired performance
With 2.5G PoE ports
With a 2.5G PoE input and pass-through port, as well as two Gigabit RJ45 ports, you benefit from fast data transfers and the option of integrating multiple devices into your gigabit network. Wired devices such as IP telephones can be supplied with power without the need for an additional power cable.
Seamless integration with the Omada SDN
Manage your access points, switches, and routers across multiple locations, from a single interface, wherever you are.
This text is machine translated.
Features
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports
- The 160 MHz bandwidth allows much more simultaneous transmissions
- Multi-RUS ensures the high performance of your network
- Advanced features: Centralized management, mesh, and seamless roaming
