TP-LINK EAP772-OUTDOOR Omada EAP772-Outdoor V1 Single Wi-Fi access point
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK Omada BE9300 indoor/outdoor WiFi 7 access Point
- 2.4 GHz 574 Mbit/s
- 5 GHz 2880 Mbit/s
- 6 GHz 5760 Mbit/s
- Maximum data transfer rate of 9300 Mbps
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
- SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA2-Personal
- internal
Technical specifications
- Maximum data transfer rate of 9300 Mbit/s.
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s.
- Maximum data transfer rate (5 GHz): 2880 Mbit/s.
- Product type
Wi-Fi access point
- Type
Omada EAP772-Outdoor V1
- Kit
Single
- Safety
SNMP
SNMPv2
SNMPv3
WPA-Enterprise
WPA-Personal
WPA2-Enterprise
WPA2-Personal
WPA2-Enterprise
WPA2-Personal
- Width
220 mm
- Height
32.5 mm
- Depth
220 mm
- Bluetooth
5.2
- Bluetooth
Yes
- Factory colour
White
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Storage relative humidity (H-H)
5 - 90 %
- Number of users
380 Benutzer
- Quantity per pack
1 Stück(e)
- 2.4 GHz
yes
- 5 GHz
yes
- Number of SSID supported
24
- MIMO
yes
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Airtime Fairness (ATF)
yes
- Web-based management
yes
- Access Control List (ACL)
yes
- Remote Authentication Dial-In User Service (RADIUS)
yes
- BeamForming
yes
- 6 GHz
yes
- Maximum data transfer rate (6 GHz)
5760 Mbit/s
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- Storage temperature (T-T)
-40 - 70 °C
- Mounting kit
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799844 TP-LINK EAP772-OUTDOOR Omada EAP772-Outdoor V1 Single Wi-Fi access point
Description
Omada Tri-Band Omni-directional indoor/outdoor BE9300 Wi-Fi 7 Access Point
Tri-band Omni-directional coverage,
6 GHz unlocked by AFC
Use the free 6 GHz band outdoors – with AFC the EAP772 outdoor eliminates interference and offers tri-band omni-directional coverage (2.4 GHz, 5 GHz and 6 GHz). The recommended coverage of 300 m2 (3,200 ft 2) enables a smooth outdoor network experience.
Professional hardware design

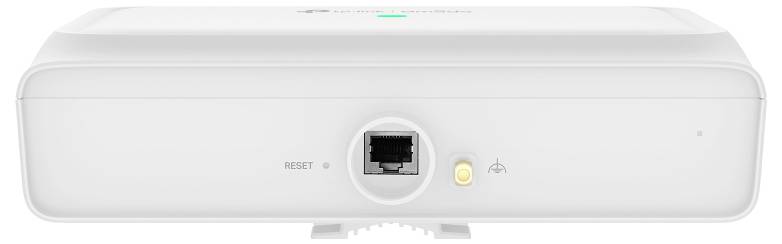

The EAP772 outdoor features 1× 2.5G PoE+ RJ45 port and offers high data throughput for applications such as live streaming or 4K video. In addition, Dual polarized antennas take care of the 2.4 GHz band for improved immunity.
Industry-leading IP68 weather-proof design
The fully sealed EAP772 outdoor is completely dust-proof and can be immersed in over 1.5 meters of deep water for over 30 minutes - exceeds IP67. It withstands even the most extreme external conditions.
Seamless connectivity with mesh and roaming
Ensures that customers are automatically connected to the best signal when moving to the Access Point for uninterrupted streaming.
Works with Omada SDN for one-click setup
Omada SDN enables a quick setup of the EAP772-Outdoor through automatic device detection and one-click takeover.
Powerful SDN solutions
For companies with Omada
Omada's software-defined networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling fully centralized cloud management for a highly scalable network.
This text is machine translated.
Features
- Tri-band WiFi 7 with 6 spatial streams: Up to 9.3 Gbps (5765 Mbps at 6 GHz + 2882 Mbps at 5 GHz + 688 Mbps at 2.4 GHz)
- Low latency and noise: Clear 6 GHz bandwidth, 320 MHz bandwidth, multi-link operation and multi-RUS ensure high network performance
- 2.5G PoE+ Port: Uses the full potential of WiFi 7 with a 2.5G PoE+ port
- Improve network efficiency: Experience the Maximum of Wi-Fi 7 with intelligent antennas and powerful amplifiers
- Easy to set up: Supports 802.3at PoE for easy installation and deployment
- Ideal for outdoor use: IP68 weather-proof housing for outdoor wireless use
- Advanced features: Centralized management, mesh, and seamless roaming
