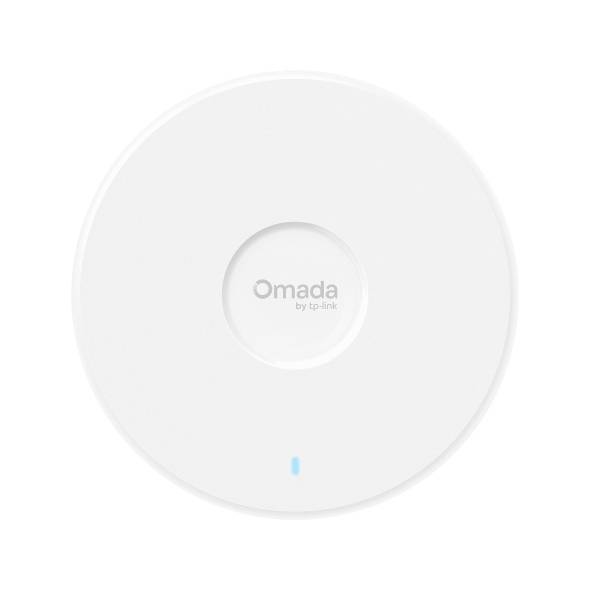

White TP-Link Omada ceiling Wi‑Fi access point with a small blue status light at the bottom center.

White TP-Link Omada ceiling Wi‑Fi access point with a small blue status light at the bottom center.

A white rectangular device with a ribbed top and smooth base, shown in side view on a light background.

1/2

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

OMADA EAP787 WLAN Access Point white Power over Ethernet (PoE)

2.4 GHz 688 Mbit/s
5 GHz 8648 Mbit/s
6 GHz 5765 Mbit/s
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
WPA, WPA2, WPA2
Power over Ethernet (PoE)
internal
This text is machine translated.

Technical specifications

Maximum data transfer rate (2.4 GHz): 688 Mbit/s.
Maximum data transfer rate (5 GHz): 8648 Mbit/s.
2.4 - 6 GHz

Product type: Wi-Fi access point

Type: Omada EAP787 V1

Kit: Single

Dual Band compatibility: 2.4 GHz, 5 GHz and 6 GHz

Wi-Fi frequency band: 2.4 GHz
5 GHz
6 GHz

Wi-Fi speed 2.4 GHz: 688 MBit/s

Wi-Fi speed 5 GHz: 5765 MBit/s

Safety: WPA
WPA2
WPA2

Width: 220 mm

Height: 38.8 mm

Depth: 220 mm

Bluetooth: Yes

Factory colour: White

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 90 %

Number of users: 510 Benutzer

Quantity per pack: 1 Stück(e)

2.4 GHz: yes

5 GHz: yes

DC-in jack: yes

Flow control support: yes

MIMO: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Automatic channel scanning: yes

Band steering: yes

Airtime Fairness (ATF): yes

Access Control List (ACL): yes

Rate limiting: yes

Reset button: yes

Quick start guide: yes

BeamForming: yes

6 GHz: yes

Maximum data transfer rate (6 GHz): 5765 Mbit/s

: 1750 m²

Automatic channel selection: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Mounting kit: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799894 TP-LINK EAP787 Omada EAP787 V1 Single Wi-Fi access point 2.4 GHz, 5 GHz, 6 GHz
