TP-LINK ES208G Omada ES208G V1 Managed network switch 8 ports 16 GBit/s
EAN:
Part number:
Item no:
Highlights & Details
TP-LINK Omada ES208G network switch managed L2 Gigabit Ethernet (10/100/1000) black
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 8
- MAC address table: 8000 entries Routing/switching capacity: 16 Gb/s.
- DC power supply included
Technical specifications
- Power source: Direct current
- Product type
Managed network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
16 GBit/s
- Working principle
Managed switch
- 10/100/1000 Mbps ports
8 x
- MAC addresses
8000
- Width
158 mm
- Height
25.4 mm
- Depth
100.7 mm
- Type
Omada ES208G V1
- Factory colour
Black
- Port
8 ports
- UKCA
yes
- Fanless
yes
- Operating temperature (T-T)
-5 - 45 °C
- Basic switching RJ-45 Ethernet ports quantity
8
- Packet buffer memory
4 MB
- Storage relative humidity (H-H)
5 - 90 %

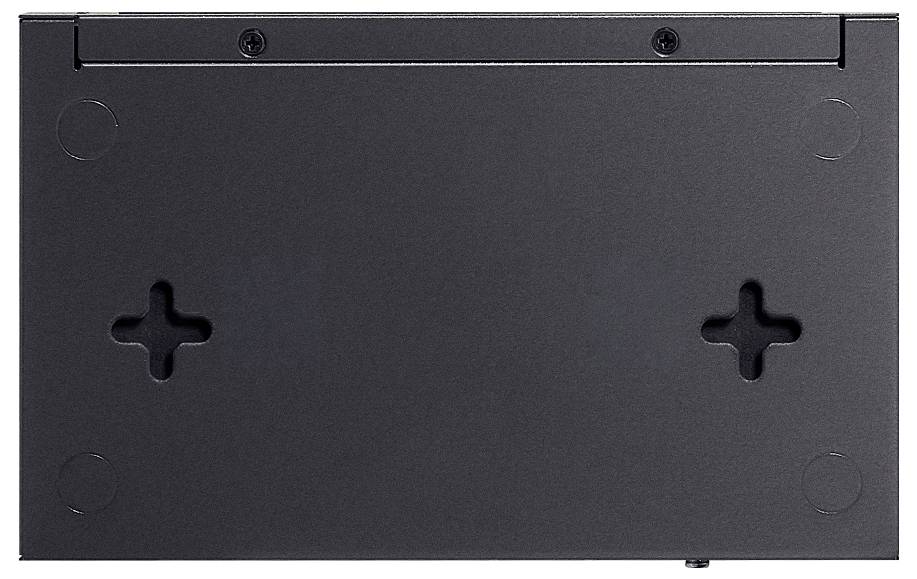

- Wall mountable
yes
- Auto-negotiation
yes
- Switching capacity
16 Gbit/s
- Heat dissipation
9.09 BTU/h
- Loop protection
yes
- Jumbo frames
15000
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Stackable
no
- Jumbo frames support
yes
- Zero Touch Provisioning (ZTP)
yes
- Web-based management
yes
- Store-and-forward
yes
- Gigabit Ethernet (copper) ports quantity
8
- Cloud-managed
yes
- Firmware upgradeable
yes
- Rack mounting
no
- Mean time between failures (MTBF)
1141726 h
- Flash memory
64 MB
- MAC address table
8000 Eintragungen
- IGMP snooping
yes
- Auto MDI/MDI-X
yes
- Number of VLANs
32
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- 10G support
no
- Storage temperature (T-T)
-40 - 70 °C
- Surge protection voltage
6 kV
- Forwarding rate
11.9 Mpps
- Surge protection
yes
- User guide
yes
- Power consumption (max)
2.7 W
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3799849 TP-LINK ES208G Omada ES208G V1 Managed network switch 8 ports 16 GBit/s
Description
The TP-LINK Omada ES208G V1 is a versatile network switch designed to improve connectivity and optimize management in different environments. With eight 10/100/1000 Base-T ports, this switch ensures high data transfer speeds and extensive compatibility with numerous devices. It supports VLANs and provides robust network segmentation for security and efficiency. The device has advanced storm control, including multicast and broadcast prevention, which ensures smooth network performance under different traffic conditions. Moreover, the TP-LINK Omada ES208G V1 is characterized by a robust environmental tolerance and works effectively at temperatures from -5 °C to 45 °C. Its fan-less design provides for a low-noise operation, while the metal casing provides for a long life, so that this switch is suitable for desktop as well as for wall-mounting applications. With functions such as IGMP Snooping, Quality of Service (QoS) and automatic device detection, it is designed to fulfill the requirements of modern networks with ease and reliability.
