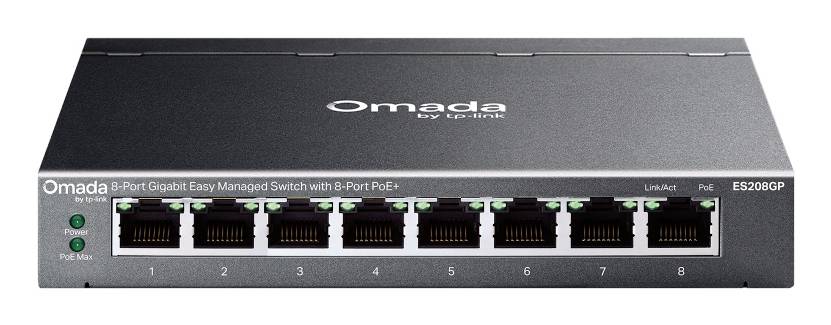

Front view of a D-Link Omada 8-port gigabit easy managed PoE+ switch, model ES208GP, with numbered Ethernet ports and status LEDs.

Front view of a D-Link Omada 8-port gigabit easy managed PoE+ switch, model ES208GP, with numbered Ethernet ports and status LEDs.

Close-up of an Omega 2J device front panel with a USB port, status light, reset pinhole, and power input labeled 53.5V = 1.31A.

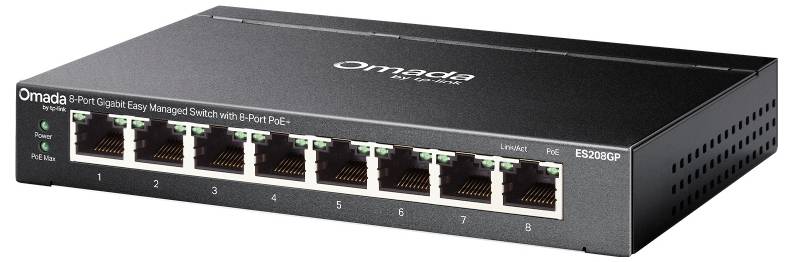

Omada 8-port Easy Managed Switch with 8-port PoE+, model ES208GP, shown in black front view.

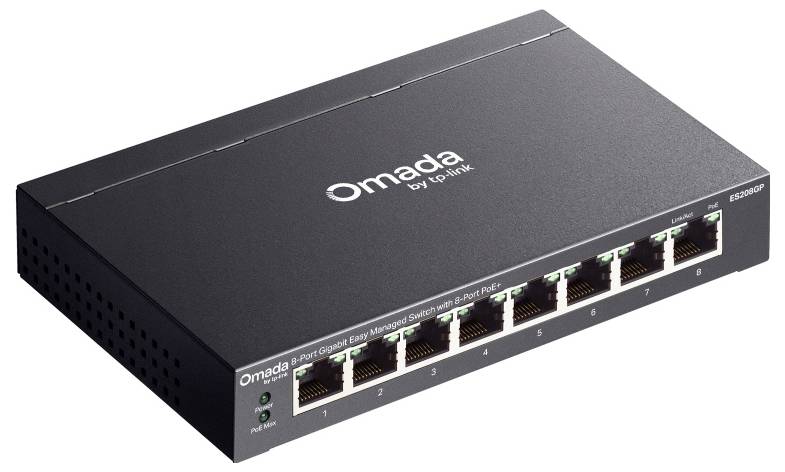

Black TP-Link Omada managed Ethernet switch with eight front RJ45 ports and status LEDs, shown on a white background.

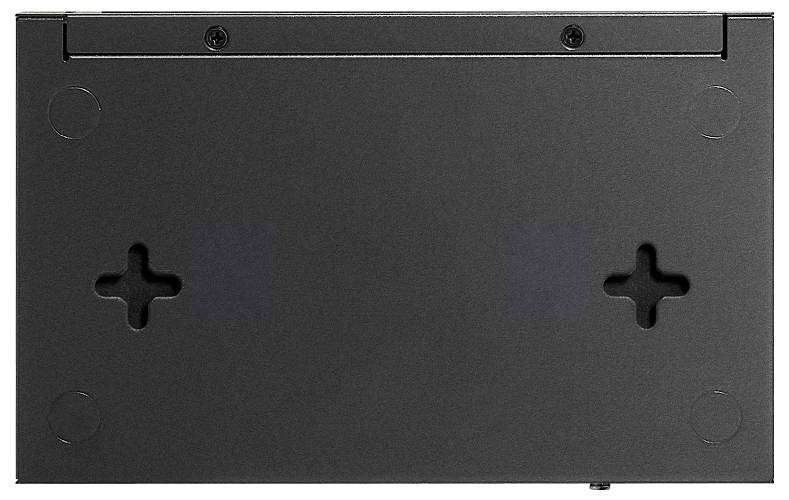

Rear view of a flat black rectangular TV or monitor wall mount plate with screw holes and cable access cutouts

1/5

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

TP-LINK Omada ES208GP network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail black

Highlights & Details

Managed L2 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 8
MAC address table: 8000 entries Routing/switching capacity: 16 Gb/s.
DIN rail rack mounting
Direct current Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: DIN rail
Power source: Direct current

Product type: Managed network switch

Transfer rate: 16 GBit/s

Working principle: Managed switch

IEEE 802.3af PoE: 8

10/100/1000 Mbps ports: 8 x

Router features: PoE

MAC addresses: 8000

Weight: 1.042

Width: 158 mm

Height: 25.4 mm

Depth: 100.7 mm

Type: Omada ES208GP V1

Factory colour: Black

Port: 8 ports

Cable length: 0 cm

Keyboard layout: German, QWERTZ

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 64 W

Packet buffer memory: 0.5 MB

Storage relative humidity (H-H): 5 - 90 %

Auto-negotiation: yes

Switching capacity: 16 Gbit/s

Loop protection: yes

Jumbo frames: 15000

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Web-based management: yes

Store-and-forward: yes

Quick start guide: yes

Cloud-managed: yes

Rack mounting: yes

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Transmission distance (max): 0.25 km

Forwarding rate: 11.904 Mpps
