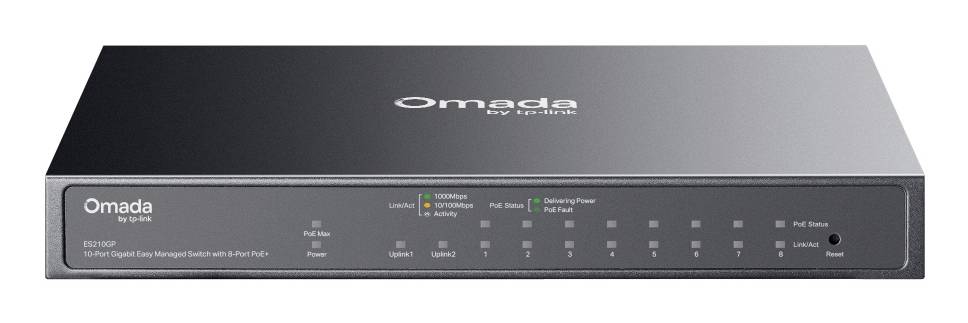

Omada network switch front panel with status LEDs, ports, and power indicator on a gray rack-mount device.

Omada network switch front panel with status LEDs, ports, and power indicator on a gray rack-mount device.

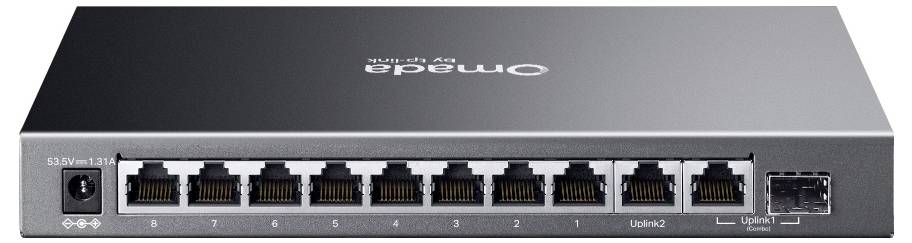

Front view of an Omada network switch with multiple Ethernet ports, one uplink port, and a power input on the left.

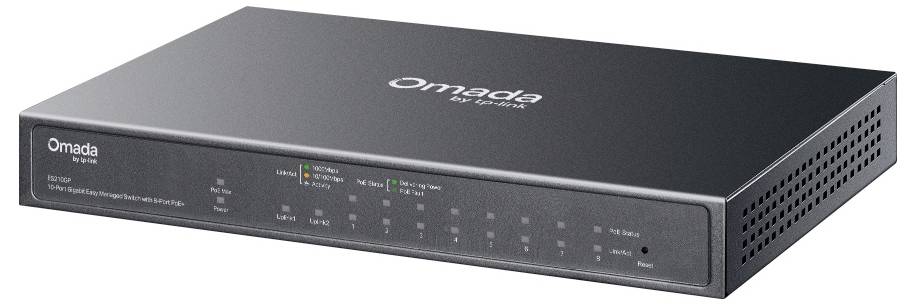

Omada rackmount network switch front view, black metal chassis with status LEDs and ports, shown at an angle on white background.

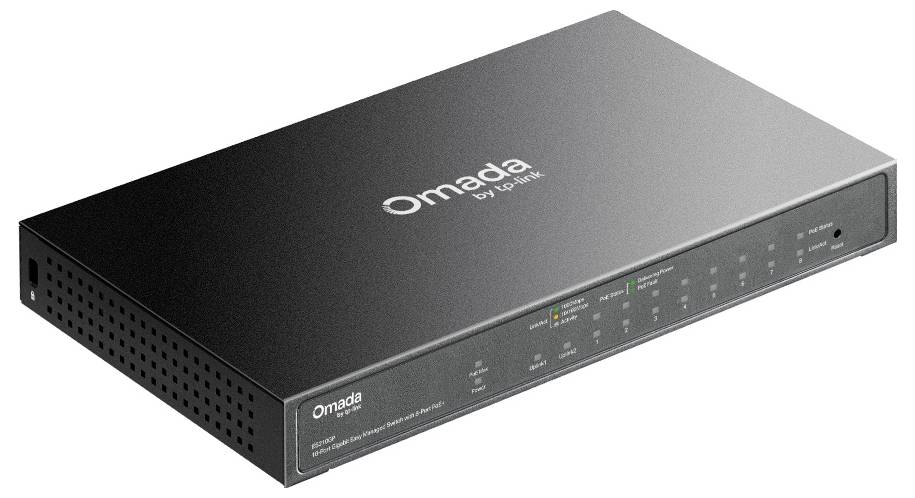

Black Omada by TP-Link network switch with multiple front-panel status lights and Ethernet ports, shown in angled product view.

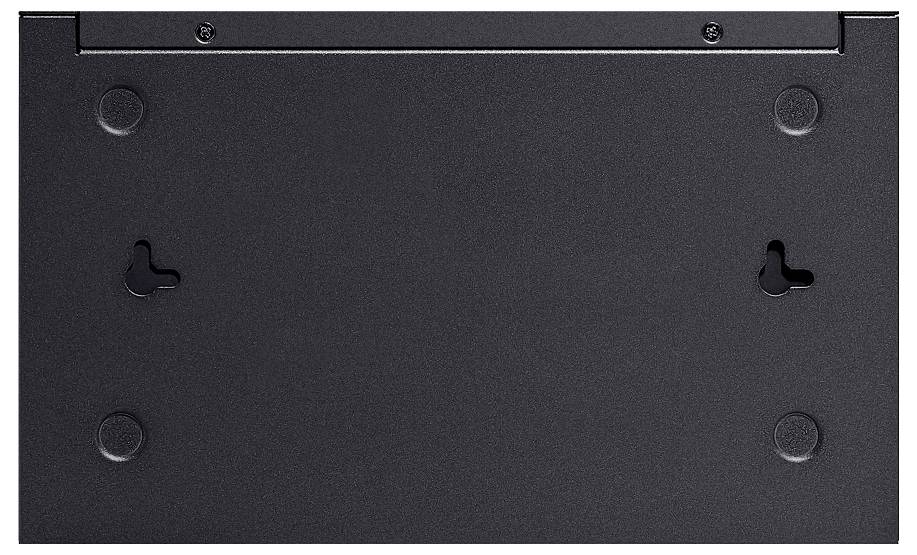

Black metal mounting plate with screw holes and keyhole slots for wall installation

1/5

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada ES210GP network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail black

Managed L2 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 10
MAC address table: 8000 entries Routing/switching capacity: 20 Gb/s.
DIN rail rack mounting
Direct current Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: DIN rail
Power source: Direct current

Product type: Managed network switch

Working principle: Managed switch

IEEE 802.3af PoE: 8

10/100/1000 Mbps ports: 10 x

Router features: PoE

MAC addresses: 8000

Width: 209 mm

Height: 26 mm

Depth: 126 mm

Type: ES210GP V1

Factory colour: Black

Port: 8 ports

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Combo SFP ports quantity: 1

Basic switching RJ-45 Ethernet ports quantity: 10

Total Power over Ethernet (PoE) budget: 63 W

Packet buffer memory: 0.5 MB

Storage relative humidity (H-H): 5 - 90 %

Auto-negotiation: yes

Switching capacity: 20 Gbit/s

Loop protection: yes

Jumbo frames: 15000

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Web-based management: yes

Store-and-forward: yes

Quick start guide: yes

Cloud-managed: yes

Rack mounting: yes

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4000

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Transmission distance (max): 0.25 km

Forwarding rate: 14.88 Mpps

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3799890 TP-LINK ES210GP ES210GP V1 Managed network switch 8 ports PoE
