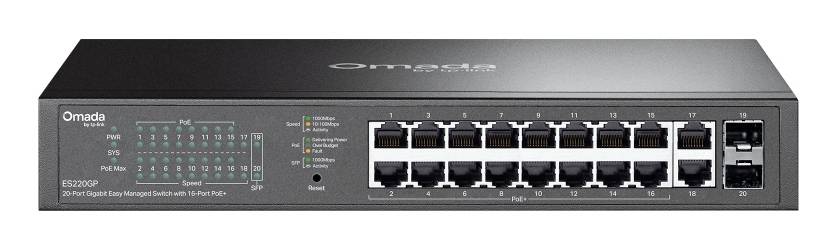

Front view of an Omada rackmount network switch with 16 Ethernet ports, two uplink ports, status LEDs, and front-panel labels on a dark chassis.

Front view of an Omada rackmount network switch with 16 Ethernet ports, two uplink ports, status LEDs, and front-panel labels on a dark chassis.

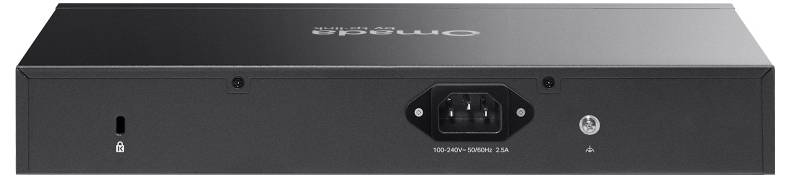

Back panel of a black Optima device showing a power inlet, locking slot, and grounding symbol.

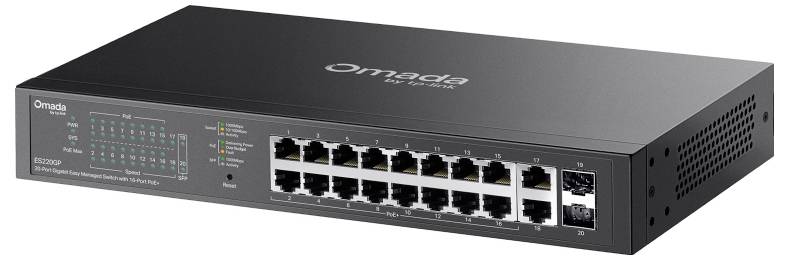

Black Omada Ethernet switch shown in three-quarter view, with multiple front-panel network ports, status LEDs, and Omada branding.

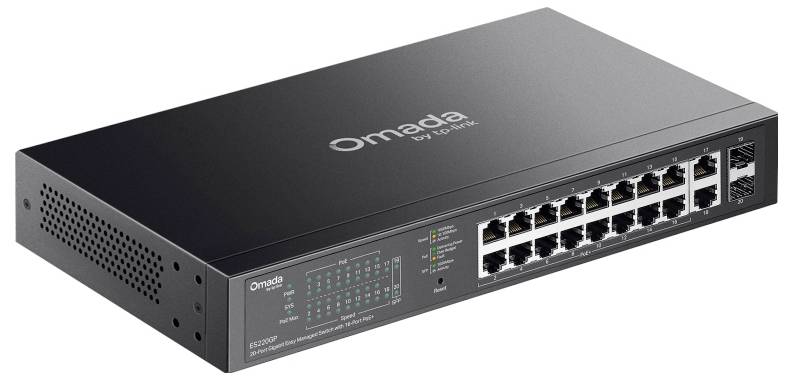

Black TP-Link Omada rackmount network switch with multiple Ethernet ports on the front panel.

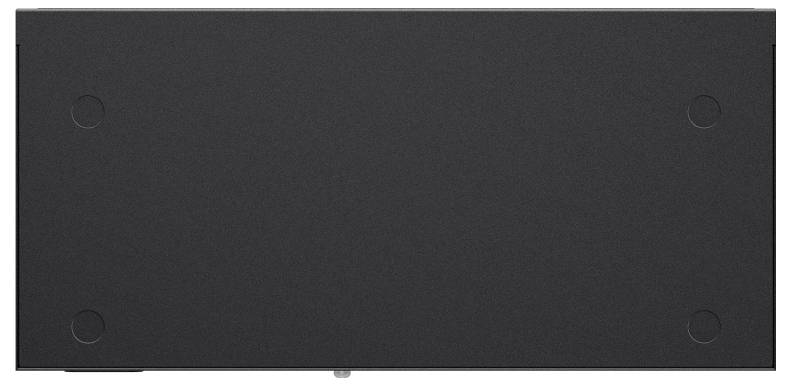

Black rectangular panel or lid with four circular recessed corner marks and a small center tab at the bottom.

1/5

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

OMADA ES220GP Network Switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Managed Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 18
MAC address table: 8000 entries Routing/switching capacity: 40 Gb/s.
Rack installation
AC Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Energy source: AC

Product type: Managed network switch

Transfer rate: 40 GBit/s

Working principle: Managed switch

Ethernet ports: 18

Router features: PoE

MAC addresses: 8000

Weight: 2.79 kg

Width: 294 mm

Height: 44 mm

Depth: 180 mm

Type: ES220GP V1

Factory colour: Black

Port: 20 ports

Material (details): Metal

Max. operating noise: 20.1 dB

Power supply (details): 100 - 240 V

UKCA: yes

Fanless: yes

Operating temperature (T-T): -5 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 16

Basic switching RJ-45 Ethernet ports quantity: 18

Total Power over Ethernet (PoE) budget: 150 W

Packet buffer memory: 4 MB

Storage relative humidity (H-H): 5 - 90 %

Auto-negotiation: yes

Switching capacity: 40 Gbit/s

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Number of queues: 8

Web-based management: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 18

Cloud-managed: yes

Rack mounting: yes

Mean time between failures (MTBF): 320156 h

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 32

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 29.76 Mpps

User guide: yes

Power consumption (max): 182.43 W
