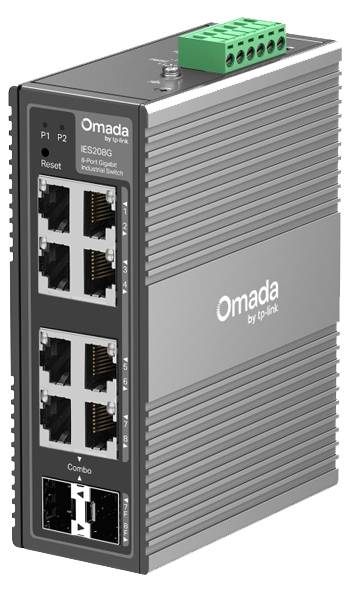

Industrial network switch with four Ethernet ports, a combo fiber port, reset button, and green terminal block on top, labeled Omada by TP-Link.

Industrial network switch with four Ethernet ports, a combo fiber port, reset button, and green terminal block on top, labeled Omada by TP-Link.

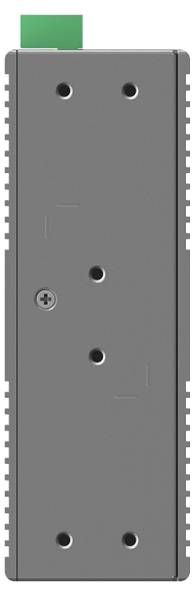

Gray rectangular electronic module with several mounting holes and a green connector tab at the top<br>

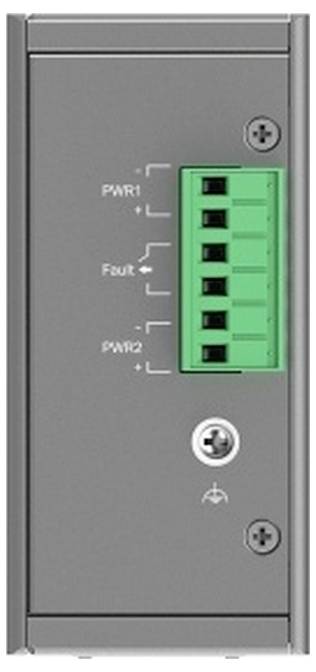

Gray industrial device front panel with green six-port terminal block labeled PWR1, Fault, and PWR2, indicating power and fault connections.

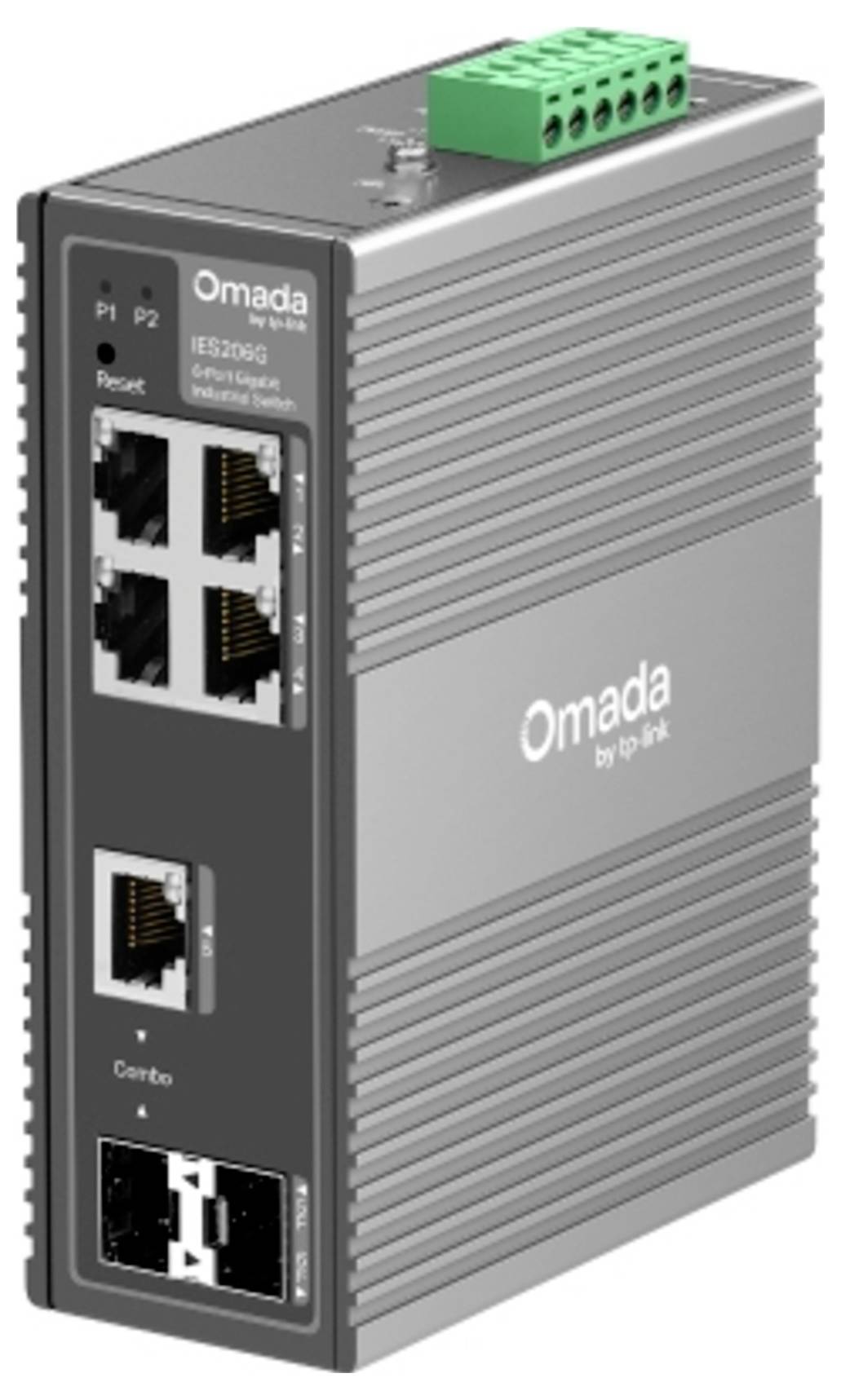

Industrial Omada by TP-Link Ethernet switch with multiple RJ45 ports and a top terminal block, shown on a white background.

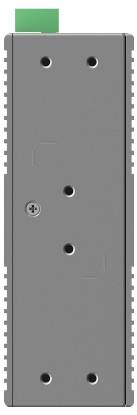

Gray rectangular electronic module with four mounting holes and side tabs, topped by a green connector protruding from the upper left.

1/5

TP-LINK

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

TP-LINK Omada IES206G network switch managed gigabit Ethernet (10/100/1000) black

Managed Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 4
MAC address table: 8000 entries Routing/switching capacity: 12 Gb/s.
DC power supply included
This text is machine translated.

Technical specifications

Power source: Direct current

Product type: Managed network switch

Transfer rate: 12 GBit/s

Working principle: Managed switch

Ethernet ports: 4

SFP ports: 2 x

10/100/1000 Mbps ports: 4 x

Width: 129 mm

Height: 45 mm

Depth: 95 mm

Type: Omada IES206G V1

Factory colour: Black

Port: 4 ports

UKCA: yes

DIN rail mounting: yes

Fanless: yes

Operating temperature (T-T): -40 - 75 °C

Combo SFP ports quantity: 1

Basic switching RJ-45 Ethernet ports quantity: 4

Storage relative humidity (H-H): 5 - 95 %

Wall mountable: yes

Auto-negotiation: yes

Switching capacity: 12 Gbit/s

Jumbo frames: 15000

SFP module slots quantity: 1

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Web-based management: yes

Store-and-forward: yes

Cloud-managed: yes

MAC address table: 8000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Spanning tree protocol: yes

Operating relative humidity (H-H): 5 - 95 %

10G support: no

Storage temperature (T-T): -40 - 85 °C

Forwarding rate: 8.93 Mpps

Power supply included: yes
