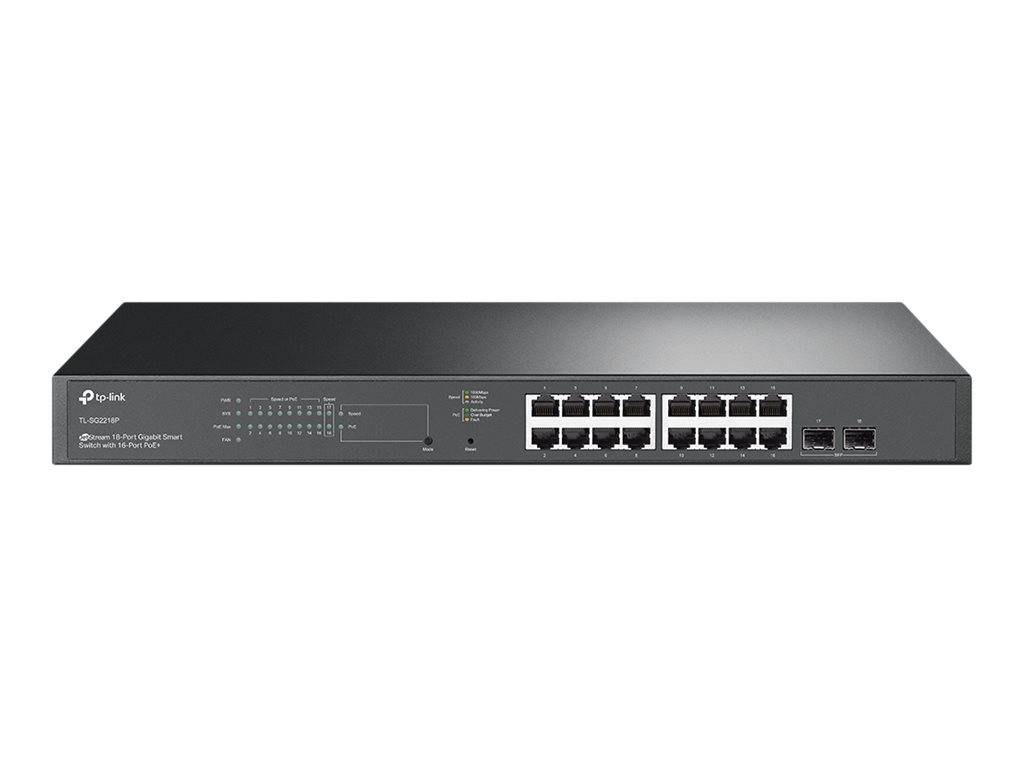

TP-LINK JetStream TL-SG2218P V1.60 – switch – Smart – 16 x 10/100/1000 (PoE+)
EAN:
Part number:
Item no:
TP-LINK JetStream TL-SG2218P V1.60 – switch – Smart – 16 x 10/100/1000 (PoE+)
Highlights & Details
- Full Gigabit ports - 16 Gigabit PoE+ ports and 2 Gigabit SFP slots for high-speed wired connectivity
- 150 W PoE budget - 16 802.3at/AF PoE+ compatible ports with a total power budget of 150 W.
- Integrated Omada SDN device
- Routes internal traffic for optimized use of network resources
- Extended security – IP MAC port binding, ACL, port security, DoS defense, storm control, DHCP snooping, 802.1X, radius authentication and others
- Optimization of video/voice applications - L2/L3/L4 QoS and IGMP Snooping
- IPv6 - IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighborhood detection
Technical specifications
- + 2 x SFP - Rack mountable - PoE+ (150 W)
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
16
- IEEE 802.3af PoE
16
- PoE ports
16
- SFP ports
2 x
- 10/100/1000 Mbps ports
16 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
8000
- Weight
2.92 kg
- Width
530 mm
- Height
250 mm
- Depth
80 mm
- Type
Switch
- Interfaces
Gigabit LAN (1 Gbps)
- Factory colour
Black
- Power supply (details)
100 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739516 TP-LINK JetStream TL-SG2218P V1.60 – switch – Smart – 16 x 10/100/1000 (PoE+)
Description
TP-LINK JetStream TL-SG2218P V1.60 – switch – Smart – 16 x 10/100/1000 (PoE+) + 2 x SFP – can be mounted on a rack - PoE+ (150 W)
This text is machine translated.
This text is machine translated.
Features
- TP-LINK JetStream TL-SG2218P V1.60 – switch – 18 connections – Smart – can be mounted on a rack
- Device type: Switch – 18 connections – Smart
- Housing Type : Rack mountable
- Sub-type : Gigabit Ethernet
- Ports : 16 x 10/100/1000 (PoE+) + 2 x SFP
- Power over Ethernet (PoE) : PoE+
- PoE budget : 150 W.
- Performance : Switching capacity: 36 Gbps
- Transfer rate packet: 26.78 Mpps
- Capacity : Packed buffer size: 4.1 Mbit
- Priority queues: 8
- IP Interfaces: 16
- Static routes: 32
- VLAN groups: Up to 4,000
- ACL entries: 230
- Size of the MAC address table : 8000 entries
- Jumbo Framework Support : 9KB
- Routing protocol : static IP routing, IGMP, MLD, STP, RSTP, MSTP
- Remote management protocol : HTTP, HTTPS, DHCP, IPv4, IPv6, CLI, ICMP, TELNET, TFTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2C, SNMP 3, SYSLOG, SSH, SSH-2
- Features : ZTP, IPMB, ACL support, port security, DoS protection, DHCP snooping, MLD Snooping, IGMP Snooping, Storm Control, QoS Auto negotiation, Auto Uplink (Auto MDI/MDI-X), 1 fan, CoS, DSCP prioritization, bandwidth control, frequency limit, SP, WRR, ARP support, link aggregation, DLDP support, flow control, loopback detection, MSTP support, port mirroring, RSTP support, STP support, STP BPDU filtering, STP BPDU port protection, LLDP-MED, VLAN-SUPPORT, VOICE VLAN, AAA, MIB II, MIB, SNTP support, EEE, Cable Diagnostics function
- Product certifications : IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.11n, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 44 cm x 18 cm x 4.4 cm
- System requirements : Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Novell NetWare, UNIX
