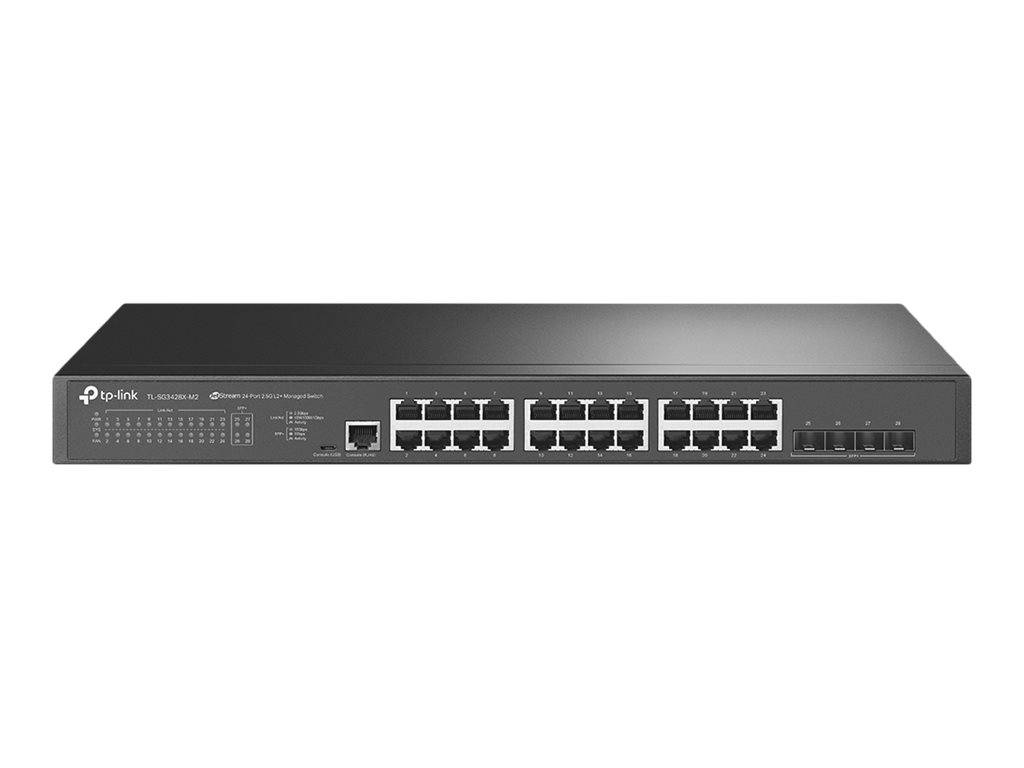

TP-LINK JetStream TL-SG3428X-M2 V1.6 - switch
EAN:
Part number:
Item no:
TP-LINK JetStream TL-SG3428X-M2 V1.6 - switch
Highlights & Details
- 2.5 Gbit/s speed
- 10G Lightning fast uplink
- Integrated with Omada SDN
- Centralized administration
- Static routing
- Robust security strategies
- Optimize voice and video applications
- Independent management
Technical specifications
- L2+ - managed - 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+ - mountable on rack
- Product type
Network switch
- Ethernet ports
24
- Weight
3.08 kg
- Width
440 mm
- Height
44 mm
- Depth
180 mm
- Type
Switch
- Factory colour
Black
- Power supply (details)
100 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739522 TP-LINK JetStream TL-SG3428X-M2 V1.6 - switch
Description
TP-LINK JetStream TL-SG3428X-M2 V1.6 - Switch - L2+ - managed - 24 x 10/100/1000/2.5G + 4 x 10 gigabit SFP+ - can be mounted on rack
This text is machine translated.
This text is machine translated.
Features
- TP-LINK JetStream TL-SG3428X-M2 V1.6 - switch - 24 ports - managed - can be mounted on rack
- Device type: Switch - 24 connections – L2+ – managed
- Housing Type : Rack mountable
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+
- Performance : 200 Gbps switching capacity
- Transfer rate packet: 148.80 Mpps
- Capacity : IP interfaces: 32
- Packed buffer size: 16 MB
- Static routes: 48
- IGMP groups: 511
- Priority queues: 8
- Maximum aggregation groups: 8
- Layer 2 Multicast Filter profiles: 256
- VLAN Groups: 4000
- IP Source Guard inputs: 100
- MAC addresses per port: Up to 64
- Static ARP entries: 128
- Size of the MAC address table : 32,000 entries
- Jumbo Framework Support : 9KB
- Routing Protocol : IGMPv2, IGMP, IGMPv3, MLD, MLDv2, static IPv4 routing, static IPv6 routing, MSTP, RSTP, STP
- Remote management protocol : DHCP, HTTP, HTTPS, Telnet, RMON 2, MIB, RMON 1, RMON 3, RMON 9, SNMP 1. SNMP 2C, SNMP 3, TFTP, SSH, SSH-2, CLI, ICMP, SNMP
- Features : ZTP, 802.1x authentication, ACL support, DHCP snooping, IPMB, Port Security, Storm Control, IGMP Snooping, QoS, 1 Fan, CoS, DSCP prioritization, bandwidth control, link aggregation, queue planning support, SP, WRR, MSTP support, RSTP support, STP support, flow control, loopback detection, HOL blocking prevention, MVR, voice VLAN, AAA, MIB, MIB II, LLDP SUPPORT, LLDP-MED. cable diagnostics function, Dual-picture support, system protocol, SNTP support, store-and-forward, BOOTP support, ARP inspection, DoS attack protection, port mirroring, firmware can be updated, DHCP server, MLD snooping, DHCP relay, port isolation, IP source monitor, VLAN group, guest VLAN, EEE, BPDU filter, MAB
- Product certifications : IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1AB (LLDP), IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 44 cm x 18 cm x 4.4 cm
- System Requirements : Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11, Apple MacOS, Novell NetWare, UNIX, Linux
